Kuhn MM Twin Hay Merger Series

Description

When you need to put up premium hay or silage, the KUHN twin hay merger lineup works fast. It also handles crops gently along the way. The lineup covers big-acre producers and custom operators alike, from the MM 701 to the MM 1301. Each model uses a twin or triple pickup system to build uniform, fluffy windrows. First, the floating skid shoes and Constant Float suspension follow ground contour without help from the tractor’s hydraulics. Then the floating windguard and crop netting cut leaf loss and protect feed value in every windrow.

Every KUHN merger is built for easy use in the field. You can merge left, right, or split to match any field layout or forage program. The IntelliMerge ISOBUS system also puts pickup speed, conveyor direction, and height adjustments right in the cab. Finally, the narrow transport width and quick-folding design make road moves simple, even with the largest 42-foot MM 1301.

At Parallel Ag, we know hay and forage equipment inside and out. Contact us today to find the KUHN twin hay merger that fits your operation.

Compare Models

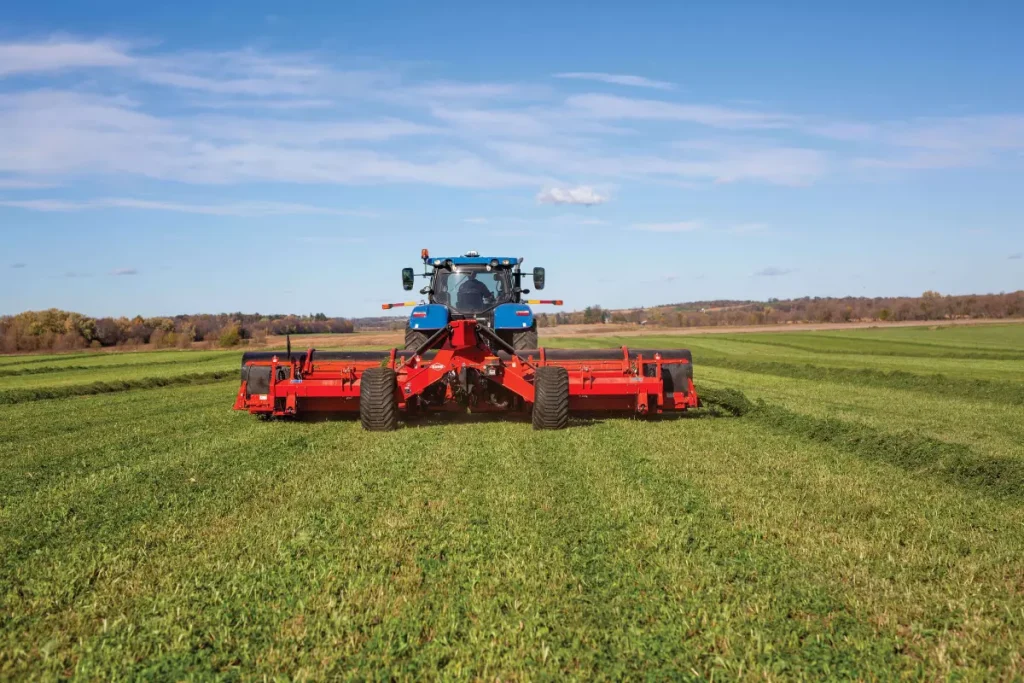

24 ft. MM 701 | 100 HP / Twin Pickup.

Model	MM 701.
Working Width	24 ft.
Individual Pickup Width	2 x 12 ft.
Transport Width	10 ft. 3 in.
Minimum PTO Power	100 HP.
Approximate Machine Weight	9,800 Lbs.
Hitch	2-Point Swivel, Cat. 2/3N/3.

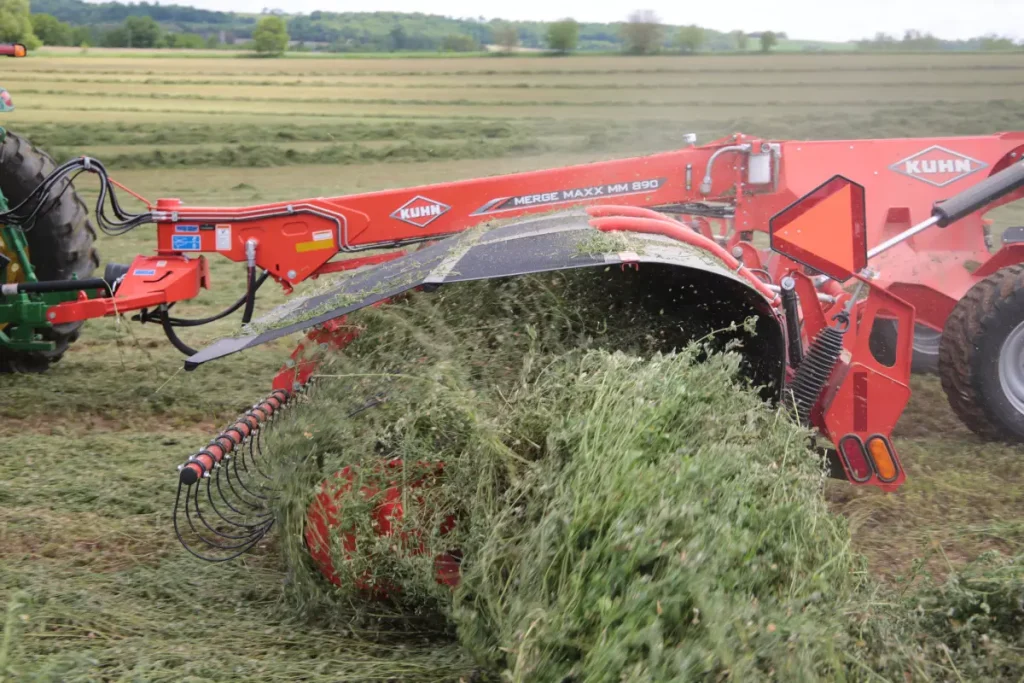

30 ft. MM 890 | 120 HP / Twin Pickup.

Model	MM 890.
Working Width	30 ft.
Individual Pickup Width	2 x 15 ft.
Transport Width	10 ft. 3 in.
Minimum PTO Power	120 HP.
Approximate Machine Weight	10,700 Lbs.
Hitch	2-Point Swivel, Cat. 2/3N/3/4N.

36 ft. MM 1101 | 140 HP / Triple Pickup.

Model	MM 1101.
Working Width	36 ft.
Individual Pickup Width	3 x 12 ft.
Transport Width	12 ft.
Minimum PTO Power	140 HP.
Approximate Machine Weight	17,000 Lbs.
Hitch	2-Point Swivel, Cat. 3/4N/4.

42 ft. MM 1301 | 140 HP / Triple Pickup.

Model	MM 1301.
Working Width	42 ft.
Individual Pickup Width	15/12/15 ft. (Left/Center/Right).
Transport Width	12 ft.
Minimum PTO Power	140 HP.
Approximate Machine Weight	17,700 Lbs.
Hitch	2-Point Swivel, Cat. 3/4N/4.

Condition	New
Model	MM Twin Merger Series

Features

Flexible Windrow Delivery

Left, Right, or Split Merging.
Adjust delivery on the go to match any field layout or forage program.

Wide Working Widths.
Choose from 24 to 42 feet of pickup to match your acreage and horsepower.

Gentle, Consistent Crop Flow

Constant Float® Suspension.
Floating skid shoes follow ground contour without tractor hydraulics.

Floating Windguard & Crop Netting.
Together they build a smooth, uniform windrow and improve leaf retention.

Sealed Roller Bearing Cam Followers.
These bearings support the tine bars for long service life in the field.

Operator Friendly Controls

IntelliMerge™ ISOBUS System.
Adjust pickup speed, conveyor direction, and height right from the cab.

2-Point Swivel Hitch.
A swiveling headstock eliminates driveline chatter and allows sharp turns.

Narrow Transport Width.
Fold quickly to a compact transport profile for easy moves between fields.
