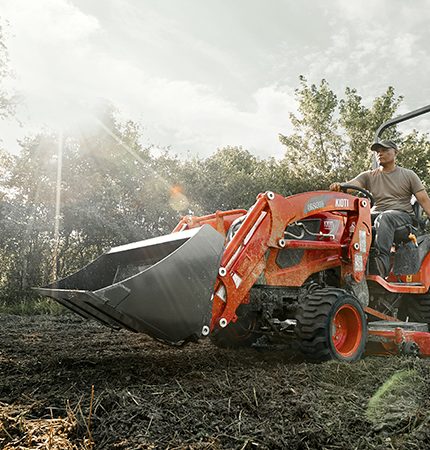

Kioti SL2420 subcompact loader

Description

Fits the KIOTI CS20 Series Sub-Compact tractors.
Specifications may vary with tractor model, front axle configurations, tire size option and type of attachment and are subject to change without notification.

Standard Features

  • Arched low profile maximizes operator’s visibility and is well matched with unique hood style.
  • Entire loader (except mounting) can be quickly attached and detached from tractor.
  • A built-in parking stand on the front end loader provides quick and easy connection.
  • Mid-mount style frame for engine accessibility.
  • Color complements KIOTI tractor.
ConditionNew
ModelSL2420
Maximum Lift Height73.7" (1,872 mm)
Clearance w/ Attachment Level68.1" (1,730 mm)
Clearance w/ Attachment Dumped54.8" (1,392 mm)
Reach at Maximum Height29.7" (755 mm)
Maximum Dump Angle38°
Reach w/ Attachment on Ground52.8" (1,342 mm)
Maximum Rollback Angle27°
Digging Depth Below Grade5.1" (130 mm)
Overall Height in Carry Position34.1" (867 mm)
Depth of Attachment (to back of inner shell)18" (457.3 mm)
Height of Attachment19" (484 mm)
Length of Attachment (to pivot pin)22.4" (569.4 mm)
Bucket Size (QA)48"
Relief Valve Setting (Loader Control Valve)130~135 kg/cm2
Rated Flow (Tractor System)4.9 gpm (18.7 L/min)
Lift Capacity to Full Height at Pivot Pins1062.3 lbs. (482 kg)
Breakout Force at Pivot Pin1,329 lbs. (603 kg)
