Kioti RX7320 PCC with Cab and Powershuttle

Description

Engine Gross Power: 73 hp (54.4 kW)
PTO Type: Independent
Transmission Type: Power Shuttle w/Creeper
Shuttle: Wet Disc

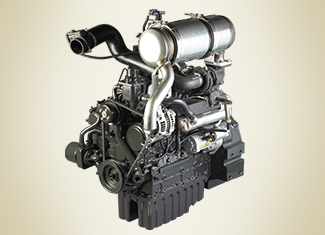

  • CRDI diesel engine with Daedong ECO Technology

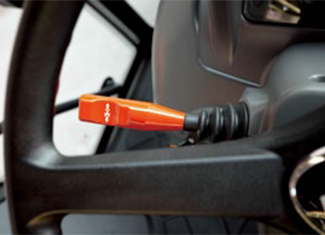

  • Power Shuttle w/Creeper Gear
  • Category II 3-Point Hitch

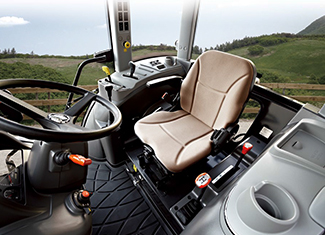

  • Deluxe Cab
  • Rear Differential Lock
  • Single Lever Joystick
  • Remote Hydraulic Valves

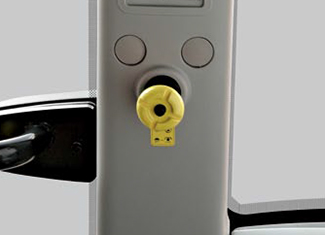

  • Independent PTO with Auto and Manual Selection
ConditionNew
ModelRX7320 PCC
Engine
Engine4F243T
Engine Gross Power73 hp (54.4 kW)
Rated Speed2,600 rpm
No. of Cylinders4
Fuel TypeDiesel
AspirationTurbo Charged
Displacement148.6 cu.in. (2,435 cc)

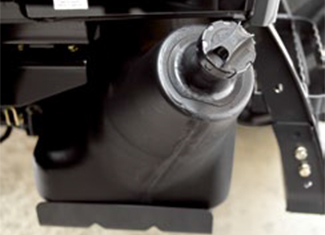

Fuel Tank Capacity25 gal. (95 L)
Transmission
Transmission TypePower Shuttle w/Creeper
ShuttleSynchronized
Main GearSynchronized
No. of Travel Speeds - Forward / Reverse24F/24R
Min. Travel Speed of Forward w/ Ag @ Engine rated speed.11 mph (.17 km/h)
Max. Travel Speed of Forward w/ Ag @ Engine rated speed23.53 mph (37.86 km/h)
Power Take-Off (PTO)
PTO Type TransIndependent
PTO Power63 hp (47 kW)
Rear PTO Speeds (1st)540 rpm / 540E rpm
Brakes and Clutch
BrakesWet Multi Disc
ClutchWet Disc
Dimensions w/ AG Tire
Length w/ 3-point hitch146.3 in. (3,715 mm)
Width77.2 in. (1,960 mm)
Height from Top of Cab104.5 in. (2,655 mm)
Wheelbase83.9 in. (2,130 mm)
Ground Clearance17.3 in. (440 mm)
Front Tread Ag Tires - Min58.1 in. (1,475 mm)
Rear Tread Ag Tires - Min59.6 in. (1,515 mm)
Turning Radius w/ Brake11.2 ft. (3.4 m)
Hydraulics
PumpGear
Pump Capacity (Max. Flow Rate)19.2 gpm (72.8 L/min)
3-Point Hitch
Standard CategoryCategory II
Lift Capacity, 24" aft of hitch3,898 lbs. (1,768 kg)
Control TypePosition, Draft and Mixed
Weight
Weight with Ag Tires6,162 lbs. (2,795 kg)
