Kioti DK4210CHSE tractor

Description

  • Diesel engine with Daedong ECO Technology
  • Climate-Controlled Cab

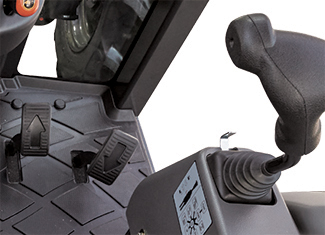

  • Powerful HST Transmission

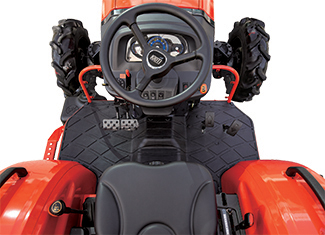

  • Single Lever Joystick
ConditionNew
ModelDK4210SE HST Cab

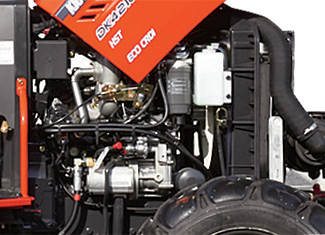

Engine
Engine Model3H-TH4D
Engine Gross Power39.6 hp (29.5 kW)
Rated Speed2,600 rpm
No. of Cylinders3
Fuel TypeDiesel
Displacement111.4 cu. in. (1,826 cc)
Fuel Tank Capacity12.7 gal. (48 L)
Transmission
Transmission TypeHydrostatic
No. of Travel Speeds - Forward / Reverse3 Range
Min. Travel Speed of Forward w/ Ag @ Engine rated speed0 mph (0 km/h)
Max. Travel Speed of Forward w/ Ag @ Engine rated speed18.5 mph (29.7 km/h)
Power Take-Off (PTO)
PTO Type TransmissionIndependent
PTO Power29.1 hp (21.7 kW)
Rear PTO Speed540 rpm
Mid PTO Speed2,000 rpm (Optional)
Brakes and Clutch
BrakesWet Disc Type
ClutchNone
Dimensions w/ AG Tire
Length w/ 3-point hitch125.5 in. (3,189 mm)
Width62.8 in. (1,596 mm)
Height from Top of Cab93 in. (2,363 mm)
Wheelbase71.3 in. (1,810 mm)

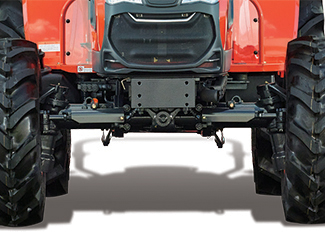

Ground Clearance14.5 in. (368 mm)
Front Tread Ag Tires - Min49.2 in. (1,252 mm)
Rear Tread Ag Tires - Min49.2 in. (1,251 mm)
Min. Turning Radius w/ Brake8.63 ft. (2.6 m)
Hydraulics
Total Pump Flow16.49 gpm (62.4 L/min)

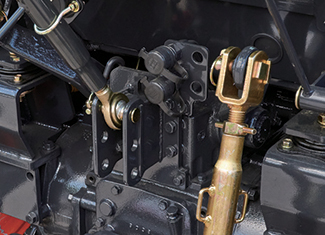

3-Point Hitch
Standard CategoryCategory 1
Lift Capacity, 24" aft of hitch2,683 lbs. (1,217 kg)
Control TypePosition
Weight
Weight w/ Ag Tires w/ Cab4,043.3 lbs. (1,834 kg)

Features
