Kioti CX2510HST tractor with joystick valve

Description

  • Tilt Wheel with Power Steering
  • Illuminated Dashboard

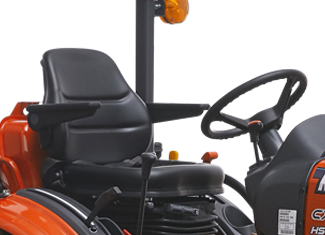

  • Comfortable Seat with Suspension
  • Single Lever Joystick
  • USB and Power Socket
  • Cruise Control
  • Twin Pedals

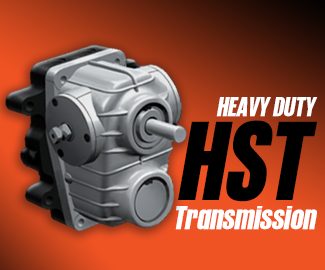

  • Hydrostatic Transmission
  • Rear PTO with adjustable three-point hitch
  • High Capacity Hydraulic Pump
ConditionNew
ModelCX2510HST
Engine
Engine Model3A165LWH-U2
Engine Gross Power24.5 hp (18.2 kW)
Rated Speed2,600 rpm
No. of Cylinders3
Fuel TypeDiesel
AspirationNatural
Displacement87 cu. in (1,647 cc)
Fuel Tank Capacity6.6 gal. (25L)
Transmission
Transmission TypeHydrostatic
Main GearHydostatic
No. Travel SpeedsInfinite/2R
Min. Travel Speed0 mph (0 km/h)
Max. Travel Speed10.7 mph (21.74 km.h)
Power Take-Off (PTO)
PTO Type TransmissionLive
PTO Power18.8 hp (14 kW)
Rear PTO Speeds540 rpm
Mid PTO Speeds2,000 rpm (Optional)
Brakes and Clutch
BrakeWet Disc Type
ClutchDry Single
Dimensions w/ Ag Tire
Length w/ 3-point109.08 in. (2,790 mm)
Width49.4 in. (1,256 mm)
Height from Top of ROPS82.8 in. (2,103 mm)
Wheelbase59.8 in. (1,520 mm)
Ground Clearance13.4 in. (340 mm)
Front Tread Ag Tires - Min38.1 in. (968 mm)
Rear Tread Ag Tires - Min37.4 in. (951 mm)
Min. Turning Radius w/Brake8.3 ft. (2.53 m)
Hydraulics
Total Pump Flow11.3 gpm (42.9 L/min)
3-Point Hitch
Standard CategoryCategory 1
Lift Capacity, 24" aft of hitch1,203 lbs (546 kg)
Control TypePosition

Features
