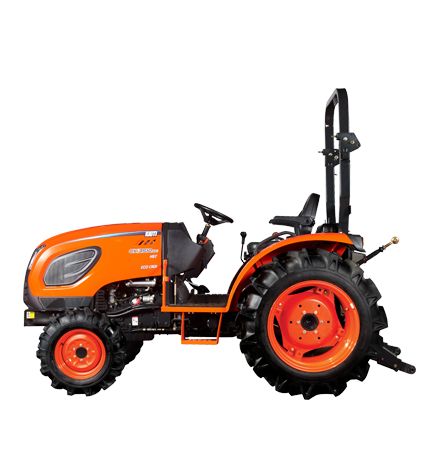

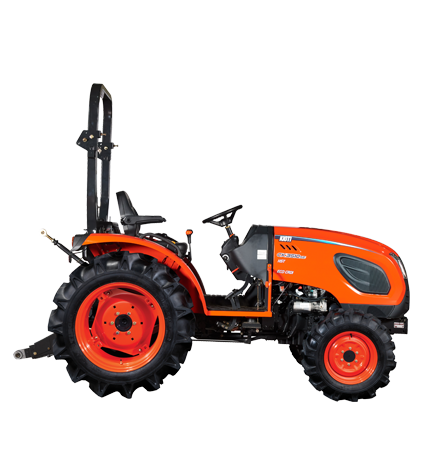

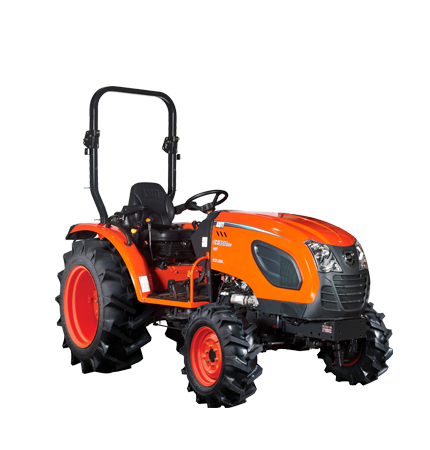

Kioti CK3510SEHB tractor

Description

  • Diesel engine with Daedong ECO Technology
  • Power Steering
  • Single Lever Joystick
ConditionNew
ModelCK3510 SE
Engine
Engine Model3H-TM4B
Engine Gross Power34.9 hp (26 kW)
Rated Speed2,600 rpm
No. of Cylinders3
Fuel TypeDiesel
Displacement111.4 cu. in. (1,826 cc)
Fuel Tank Capacity9 gal. (34 L)
Transmission
Transmission TypeSynchro Shuttle
No. of Travel Speeds - Forward / Reverse12X12
Min. Travel Speed of Forward w/ Ag @ Engine rated speed1.0 mph (1.7 km/h)
Max. Travel Speed of Forward w/ Ag @ Engine rated speed15.0 mph (24.2 km/h)
Power Take-Off (PTO)
PTO Type TransmissionIndependent
PTO Power30.8 hp (23 kW)
Rear PTO Speed540 rpm
Mid PTO Speed2,000 rpm (Optional)
Brakes and Clutch
BrakesWet Multi Disc
ClutchDry Single Stage
Dimensions w/ AG Tire
Length w/ 3-point hitch120.9 in. (3,070 mm)
Width54.5 in. (1,385 mm)
Height from Top of ROPs99.2 in. (2,520 mm)
Wheelbase65.7 in. (1,670 mm)
Ground Clearance13.4 in. (340 mm)
Front Tread Ag Tires - Min48.2 in (1,225 mm)
Rear Tread Ag Tires - Min47.6 in. (1,210 mm)
Min. Turning Radius w/ Brake8.0 ft. (2.4 m)
Hydraulics
Total Pump Flow11.3 gpm (42.9 L/min)
3-Point Hitch
Standard CategoryCategory 1
1,631 lbs. (740 kg)
Control TypePosition
Weight
Weight w/ Ag Tires w/ ROPs2,906 lbs. (1,318 kg)

Features

Diesel engine with Daedong ECO Technology

The 24.5 hp (18.3 kW) ECO-friendly diesel engine provides powerful performance and improves fuel efficiency while reducing noise levels.

Power Steering

Responsive, powerful and comfortable steering reduces operator fatigue. The power steering system is robustly designed for maneuvering in soft soil and for front loader operation.

Deluxe Suspension Seat

No matter what the task may be, the adjustable suspension seat with dual armrests allows the operator to ride in comfort.

Rear PTO

Rear PTO is standard and mid PTO is optional.

Single Lever Joystick

Front end loader work is made easier by the use of a single lever joystick. The lever returns to neutral when released. A float position allows the bucket free flotation over the ground surface.

Simple Maintenance

KIOTI tractors are designed for easy maintenance. Liftable hoods allow convenient access for daily service checks. Maintaining your tractor for long life and high performance has never been easier.

Center Marker

The center ridge marker on the hood assists with maintaining straight lines during operation.

High Ground Clearance

The minimum ground clearance of 13.4 in. provides sufficient clearance for use on rocky or uneven terrain.

Illuminated Dashboard

The illuminated dashboard ensures great visibility while working in bright daylight or at night.

3-Point Control Lever

The ergonomic 3-point control lever allows you to easily raise and lower the lift arms when attaching implements. The smooth motion reduces effort and improves control.
