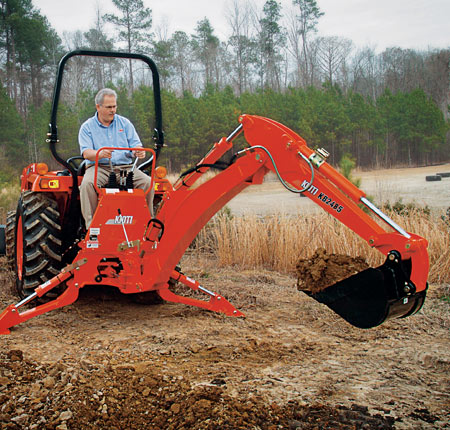

Kioti KB2485 backhoe with 12″ bucket & thumb


Fits KIOTI DK10 Series (DK4510/5010/5510), NS Series (NS4710/NS4710 HST/NS5310 HST/NS6010/NS6010 HST), NX4510, NX5010, NX5510, NX6010, RX6620 tractors.

Specifications may vary depending on tractor model and are subject to change without notification. Tractors must be equipped with ROPS and seat belt that will provide greater safety.

Digging Depth94.4" (2,400 mm)
Reach (From center of Swing Pivot)136.1" (3,460 mm)
Loading Height (Bucket at 60 degrees)80.3" (2,040 mm)
Swing Arc180°
Transport Height (Maximum)92.9" (2,360 mm)
Transport Overhang50.4" (1,280 mm)
Bucket Rotation180°
Stabilizer Spread (Down Position)68.7" (1,745 mm)
Stabilizer Spread (Up Position)46.4" (1,180 mm)
Shipping Weight (Less Bucket)1,102 lbs. (500 kg)
Bucket Digging Force3,748 lbs. (1,700 kg)
Dipperstick Digging Force2,205 lbs. (1,000 kg)
Operating Pressure2,466 psi (170 bar)


  • Subframe mounted.
  • Self-contained hydraulics (not available for all applications).
  • Factory assembled.
  • Responsive two-lever hydraulic control with exceptional feathering characteristics.
  • Anti-drop load-checks.
  • Standard buckets: 12″, 16″, 18″, 24″ and 36″ wide ditch and grave buckets.
  • All buckets have replaceable teeth.
  • Extra heavy-duty buckets.
  • Entire backhoe except for subframe is quick-detached from tractor.
