Great Plains HT1110 Terra-Max®

Call Now Get A Quote Schedule A Visit Value Your Trade Apply for Financing

Description

Great Plains built the HT1110 Terra-Max to fold narrow for tight roads and bridges. It tills up to 25 feet wide, then transports at just 11 feet 8 inches. 20-inch TurboSpeed blades size residue and manage soil across multiple seasons. Choose the HT1110 Terra-Max in 20-foot or 25-foot working widths.

Compare Models

Two models to choose from. Click any model below to see full specs.

HT1110-20 | 20′ Width | 180+ HP
Model HT1110-20
Condition New
Type Narrow-Transport Hybrid Tillage Cultivator
Coulter Spacing 7.5″
Blade Diameter 20″
Number of Coulters 66
Engine HP Requirement (PTO) 180+
Operating Speed 7-10 MPH
Operating Depth 2″ – 5″
Tillage Width 20′
Transport Width 11’8″
Transport Height 11’2″
Weight (Approx.) 20,700 Lbs.
HT1110-25 | 25′ Width | 230+ HP
Model HT1110-25
Condition New
Type Narrow-Transport Hybrid Tillage Cultivator
Coulter Spacing 7.5″
Blade Diameter 20″
Number of Coulters 82
Engine HP Requirement (PTO) 230+
Operating Speed 7-10 MPH
Operating Depth 2″ – 5″
Tillage Width 25′
Transport Width 11’8″
Transport Height 13′
Weight (Approx.) 25,000 Lbs.
Condition New

Features

TurboSpeed Blades & Tillage

TurboSpeed Blades
20-inch TurboSpeed blades combine Turbo-wave penetration with the SpeedBlade’s scalloped profile. Blades space 7.5 inches apart to drive through soil at any depth.

Variable Intensity Tillage
Front coulter gangs adjust hydraulically from 0 to 8 degrees. Rear gangs adjust proportionally from 0 to 6 degrees for precise soil control.

Finishing Options

Basket Options
Double baskets level and finish heavier, wetter soils best. Single baskets cost less and suit lighter soil textures. Choose flat bars for clay or round bars for rocky ground.

Rolling Spike Harrows or Chopper Reels
Rolling spike harrows finish the seedbed for most field conditions. Chopper reels bury tough, viney residue instead of rolling it back to the surface.

Torsion Mount
A standard torsion mount delivers a smooth, uniform finish behind the tillage tool.

Durability & Technology

Maintenance-Free Gang Bearings
Unique 7-lip seals keep dirt and debris out of the bearing, housing, and spool.

Implement Command® (Optional)
The optional Implement Command system adds in-cab monitoring and control for extra efficiency.

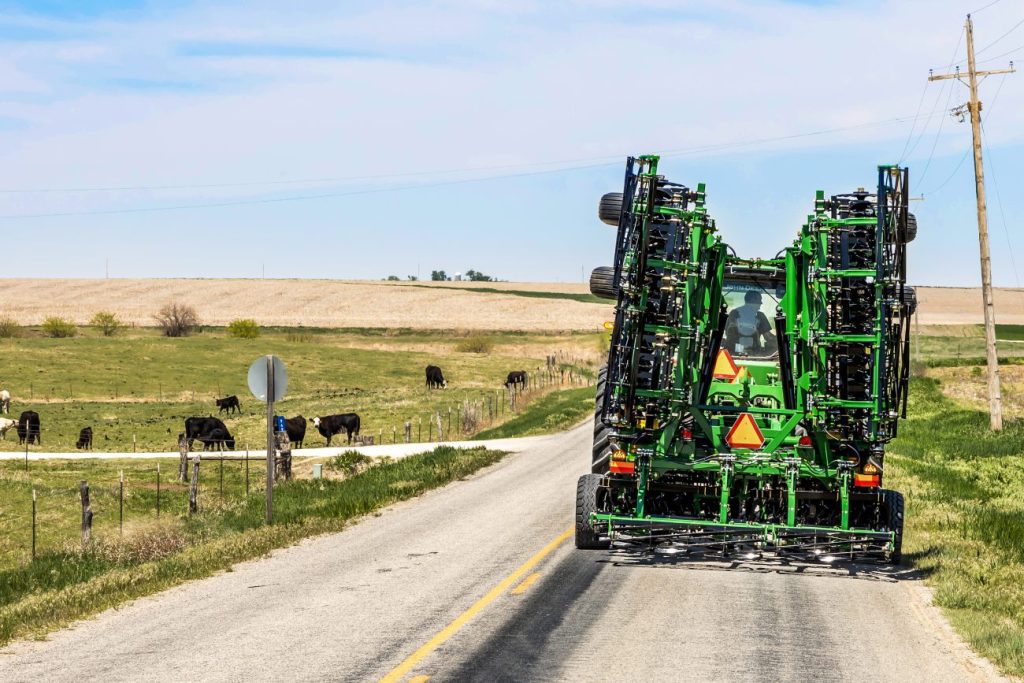

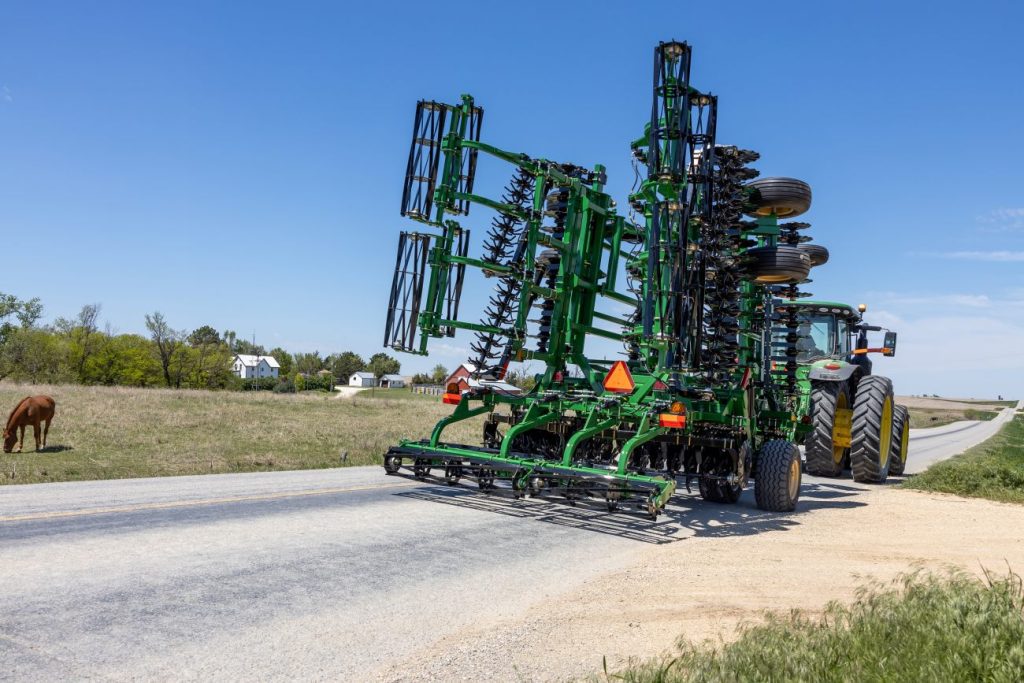

Narrow Transport
Both sizes fold to an 11-foot 8-inch transport width for tight roads and bridges.
