McFarlane HDL-1100 Spike Tooth Harrow

Call Now Get A Quote Schedule A Visit Value Your Trade Apply for Financing

Description

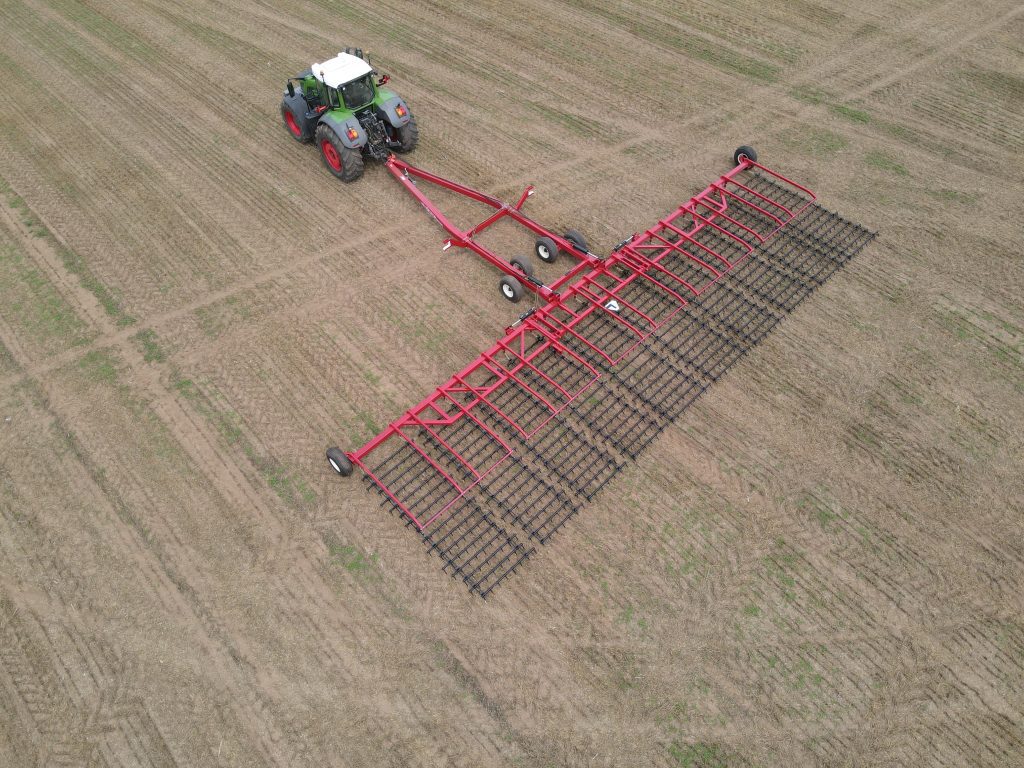

The McFarlane HDL-1100 16-Bar Forward-Fold Harrow is a total tillage tool designed to maximize coverage and field performance in one pass. With twice as many bars and spikes as standard harrows, the HDL-1100 breaks, stirs, and levels the soil quickly, saving you valuable field preparation time and fuel. It’s ideal for leveling chisel plow ridges, shallow chemical incorporation, and prepping a planter-ready seedbed—whether you’re running alone, behind a field cultivator, or teamed with another tillage tool.

Built tough with a tubular frame, heavy-duty walking tandem axles, and a one-piece main frame, the HDL-1100 handles rough, high-speed ground with ease. Flexible 16-bar sections follow the ground contour for consistent results, while diamond-shaped high-carbon teeth (20 per foot) provide aggressive coverage and excellent residue handling. Simple hydraulic lift and fold, two positive pitch settings, and a long hitch for easy turning make this harrow easy to operate and maneuver.

With working widths from 25’8” to nearly 50’, the McFarlane HDL-1100 offers double coverage and double performance for serious operators looking to improve efficiency and finish.

Parallel Ag is proud to offer the McFarlane HDL-1100 harrow—your solution for fast, effective seedbed prep, chemical incorporation, and field leveling.

Condition New
Model HDL-1100 Spike Tooth Harrow

Compare Models

24-38 ft. Models (4x6 in. Frame)

25'8" HDL-1124-16 | 20 Teeth/ft / 16-Bar Sections.
Model HDL-1124-16.
Working Width 25 ft. 8 in.
Transport Width 13 ft. 4 in.
Weight 6,444 Lbs.
27'1" HDL-1126-16 | 20 Teeth/ft / 16-Bar Sections.
Model HDL-1126-16.
Working Width 27 ft. 1 in.
Transport Width 13 ft. 4 in.
Weight 6,514 Lbs.
28'7" HDL-1128-16 | 20 Teeth/ft / 16-Bar Sections.
Model HDL-1128-16.
Working Width 28 ft. 7 in.
Transport Width 13 ft. 4 in.
Weight 6,626 Lbs.
30'1" HDL-1130-16 | 20 Teeth/ft / 16-Bar Sections.
Model HDL-1130-16.
Working Width 30 ft. 1 in.
Transport Width 13 ft. 4 in.
Weight 6,630 Lbs.
31'7" HDL-1132-16 | 20 Teeth/ft / 16-Bar Sections.
Model HDL-1132-16.
Working Width 31 ft. 7 in.
Transport Width 13 ft. 4 in.
Weight 6,695 Lbs.
34'7" HDL-1134-16 | 20 Teeth/ft / 16-Bar Sections.
Model HDL-1134-16.
Working Width 34 ft. 7 in.
Transport Width 13 ft. 4 in.
Weight 6,882 Lbs.
36'2" HDL-1136-16 | 20 Teeth/ft / 16-Bar Sections.
Model HDL-1136-16.
Working Width 36 ft. 2 in.
Transport Width 13 ft. 4 in.
Weight 6,951 Lbs.
37'8" HDL-1138-16 | 20 Teeth/ft / 16-Bar Sections.
Model HDL-1138-16.
Working Width 37 ft. 8 in.
Transport Width 13 ft. 4 in.
Weight 7,022 Lbs.

40-50 ft. Models (6x8 in. Frame)

40'8" HDL-1140-16 | 20 Teeth/ft / 16-Bar Sections.
Model HDL-1140-16.
Working Width 40 ft. 8 in.
Transport Width 14 ft. 6 in.
Weight 9,519 Lbs.
42'2" HDL-1142-16 | 20 Teeth/ft / 16-Bar Sections.
Model HDL-1142-16.
Working Width 42 ft. 2 in.
Transport Width 14 ft. 6 in.
Weight 9,588 Lbs.
43'8" HDL-1144-16 | 20 Teeth/ft / 16-Bar Sections.
Model HDL-1144-16.
Working Width 43 ft. 8 in.
Transport Width 14 ft. 6 in.
Weight 9,658 Lbs.
45'2" HDL-1146-16 | 20 Teeth/ft / 16-Bar Sections.
Model HDL-1146-16.
Working Width 45 ft. 2 in.
Transport Width 14 ft. 6 in.
Weight 9,728 Lbs.
48'3" HDL-1148-16 | 20 Teeth/ft / 16-Bar Sections.
Model HDL-1148-16.
Working Width 48 ft. 3 in.
Transport Width 14 ft. 6 in.
Weight 9,868 Lbs.
49'9" HDL-1150-16 | 20 Teeth/ft / 16-Bar Sections.
Model HDL-1150-16.
Working Width 49 ft. 9 in.
Transport Width 14 ft. 6 in.
Weight 9,938 Lbs.

Features

Double Coverage in One Pass

16-Bar Sections.
Twice the bars and spikes of a standard harrow break, stir, and level ground quickly.

20 Teeth Per Foot.
Close tooth spacing delivers aggressive coverage and thorough residue handling.

Two Pitch Settings.
Adjustable teeth settings dial in leveling action and soil stirring for the conditions.

Built to Flex and Last

One-Piece Main Frame.
This frame adds strength and cuts assembly time versus older cart designs.

Trussed Wing Frame.
This frame eliminates cable supports for tighter turning when pulled behind another tool.

Cushioned Wing Fold.
A spring-cushioned cylinder makes folding and unfolding smoother and more reliable.

Easy to Run

Single Hydraulic Circuit.
One circuit handles both lift and fold for simple operation.

Improved Wing Lock.
A UHMW cover and new securing pin protect paint and provide a positive lock.

Walking Axles.
Standard walking axles, with dual axles optional, keep a smooth ride across the width.
