Brehmer FLX1224

Call Now Get A Quote Schedule A Visit Value Your Trade Apply for Financing

Description

Easily switch between handling fertilizer and lime with the FLX1224 Field Loader from Brehmer Mfg. Designed with versatility in mind, the removable lime hopper quickly converts to allow low-profile loading of dry fertilizer. Constructed from durable 304 stainless steel, the FLX1224 is built for long-lasting performance and comes equipped with Brehmer’s patented self-aligning belt system, which automatically keeps the conveyor belt centered during operation.

Condition New
Model FLX1224

Specifications

Model FLX1224
Condition New
Engine 25 HP Honda, electric start
Belt 24 in crescent top, stainless steel lacing
Incline 25°
Discharge Height 14 ft, 10 in
Clearance Under Top Drive Pulley 14 ft
Hitch Adjustable tow hitch, 1 in clevis, safety chains (pintle hitch optional)
Lighting Brake and turn lights, 7-way RV plug
Fuel Tank 8 gal
Construction 304 stainless steel

Features

Self-Aligning Belt System (Patented)

Brehmer’s patented self-aligning system automatically keeps the conveyor belt centered during operation, cutting down on manual adjustments and belt wear.

Start/Stop with a Fully Loaded Belt

The FLX1224 can be started or stopped even with a fully loaded belt, avoiding the downtime and hassle of unloading before restarting.

Direct Hydraulic Driven Crowned and Lagged Drive Pulley

A crowned and lagged drive pulley, driven directly by hydraulics, keeps the belt centered and tracking true for consistent, low-maintenance operation.

Hydraulic Driven and Steerable Drive Wheel

A hydraulically driven, steerable drive wheel gives the operator precise control when positioning the loader in the field or yard.

Variable Belt Speed

Adjustable belt speed lets the operator match the loading rate to the material and the job, from a slow, controlled feed to full-speed loading.

Adjustable Discharge Chute

The discharge chute adjusts to direct material exactly where it’s needed, reducing spillage and giving more control over the pile or load.

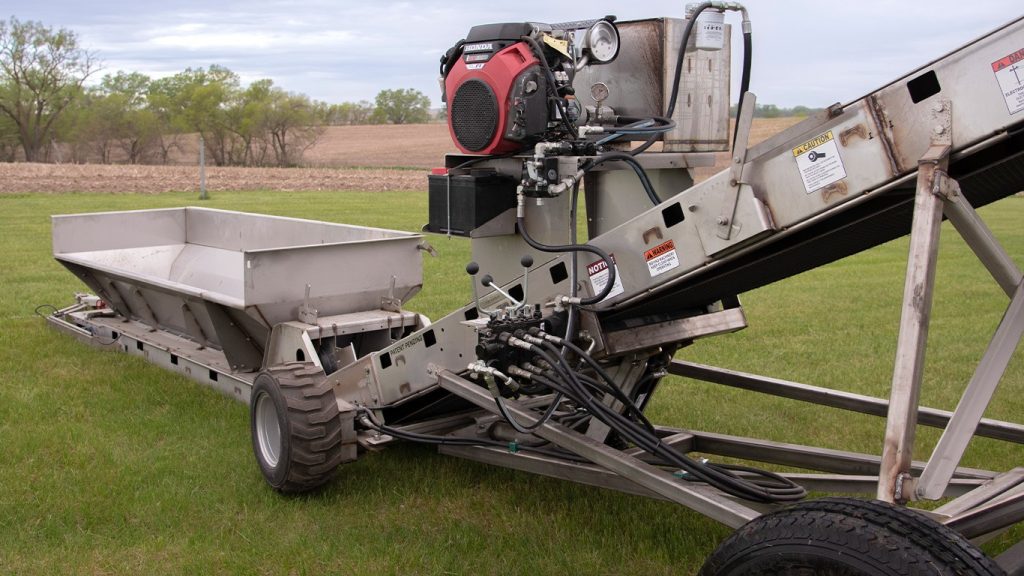

Removable Lime Hopper – Optional Add-On

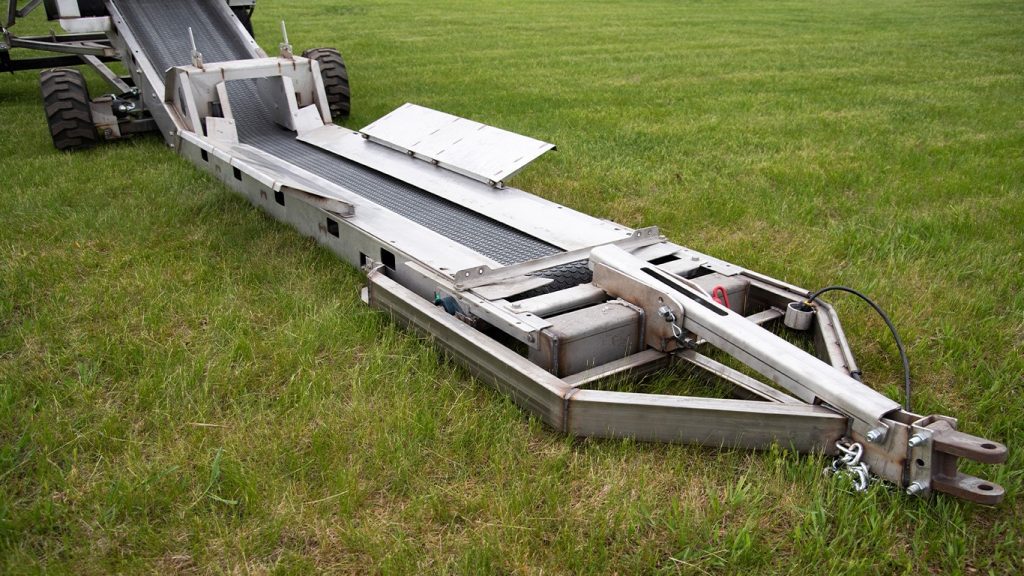

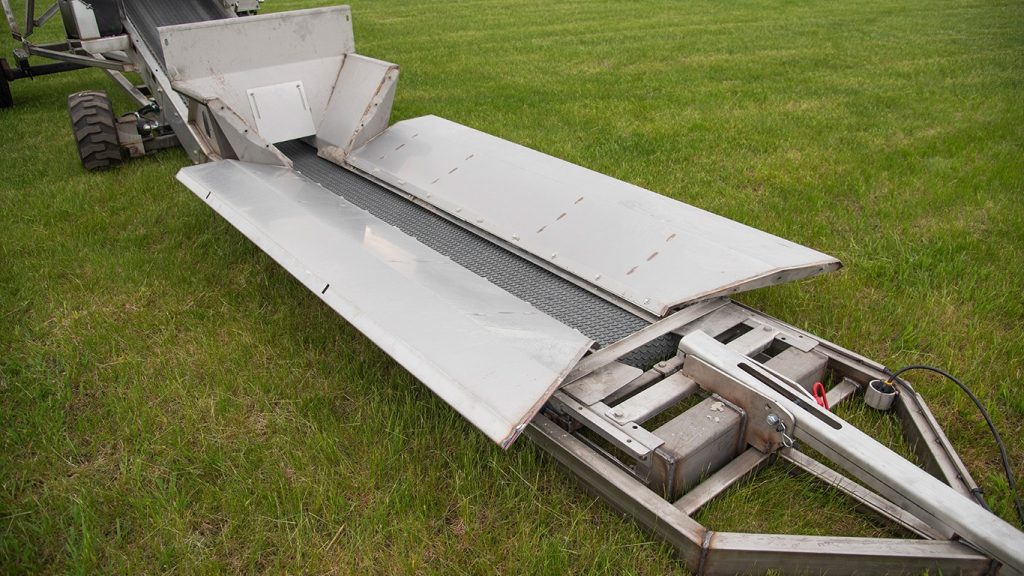

Choose between the removable lime hopper or the standard fertilizer package: the lime hopper quickly converts the FLX1224 to a low-profile setup for loading dry fertilizer, so one machine handles both jobs.

Grizzly Bars – Optional Add-On

Optional grizzly bars screen out oversized clumps and debris before material reaches the belt, keeping the load consistent and protecting the conveyor.
