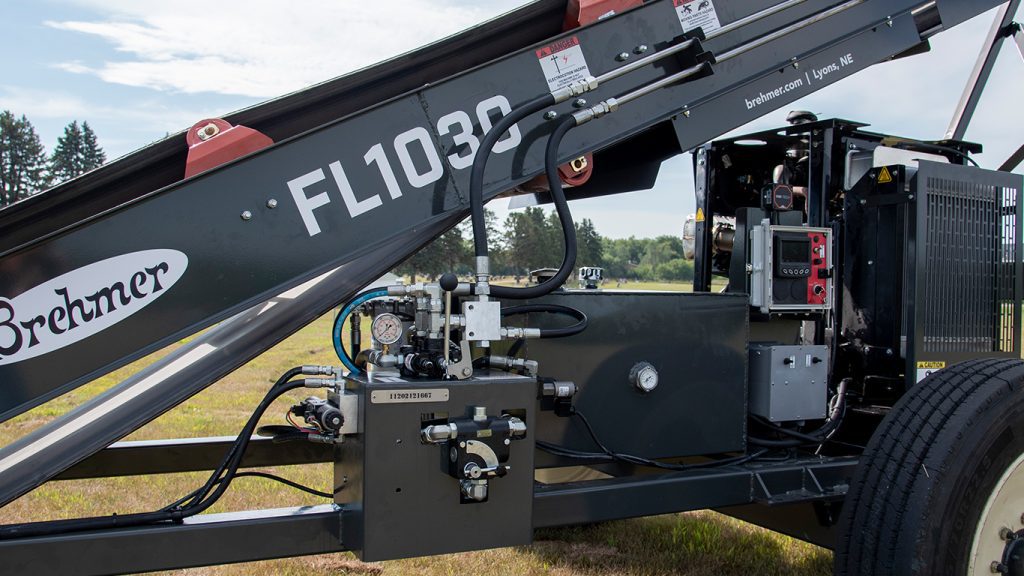

Ruggedly designed to work in any environment, the FL1030 Field Loader from Brehmer Mfg. is designed to handle your ag lime and fertilizer loading needs.

The FL1030 has features you can only find on Brehmer Field Loaders: remote-controlled, start or stop with a fully loaded belt, hydraulic powered hitch lift, and our patent pending self-aligning belt-tightening system.




  • Remote RPM and belt on/off
  • Start/stop with a fully loaded belt
  • Deutz 2.9L engine, electric start
  • 30” wide belt
  • 25º Incline
  • 2” bearings
  • Direct hydraulic driven crowned drive pulley
  • Self-aligning belt-tightening system (Patent Pending)
  • Variable belt speed
  • 10’ hopper
  • 13’ 11” discharge height
  • 12’ 6” roller height
  • Tow hitch with 1” clevis and safety chains
    (Pintle hitch, optional)
  • Remote hydraulic powered raise/lower hitch
  • 38” max hitch height
  • 44’ 2” overall length
  • 13’ 2” travel height
  • Brake and turn lights, 7-way RV plug
  • 255/70 R22.5 tires
  • 7,100 lbs total wt. (1,060 lbs tongue wt.)
  • 30-gallon fuel tank
  • 34-gallon hydraulic reservoir
