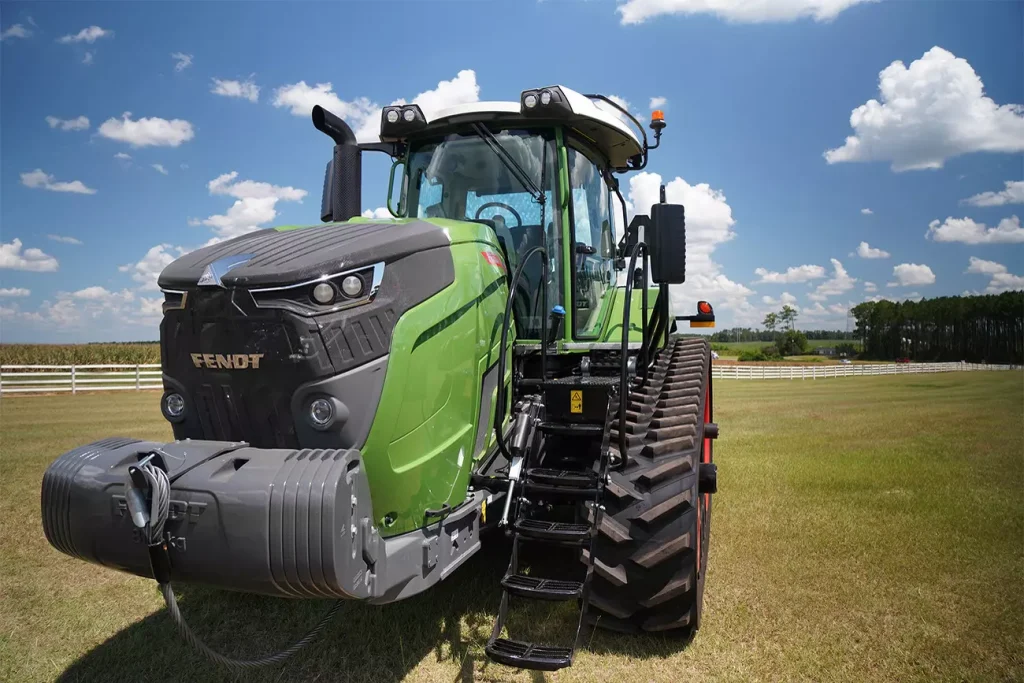

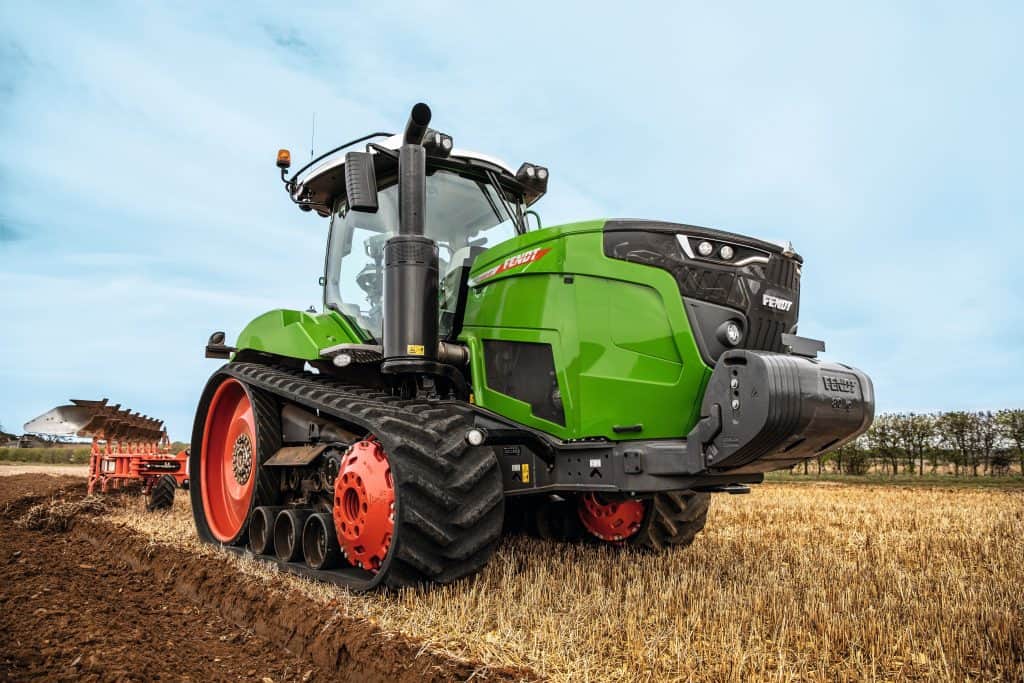

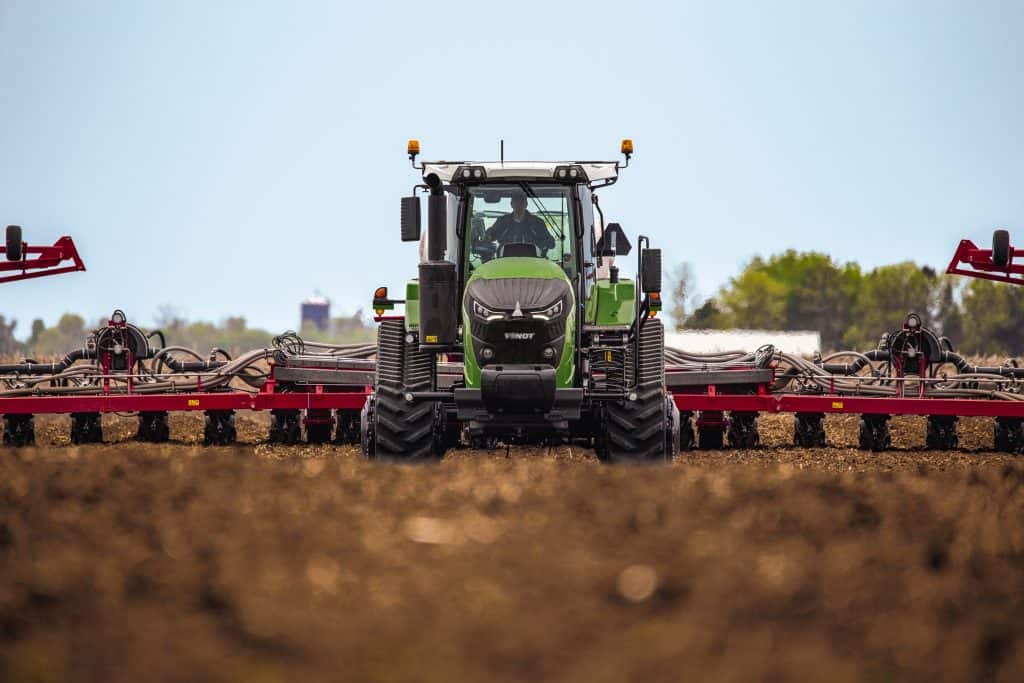

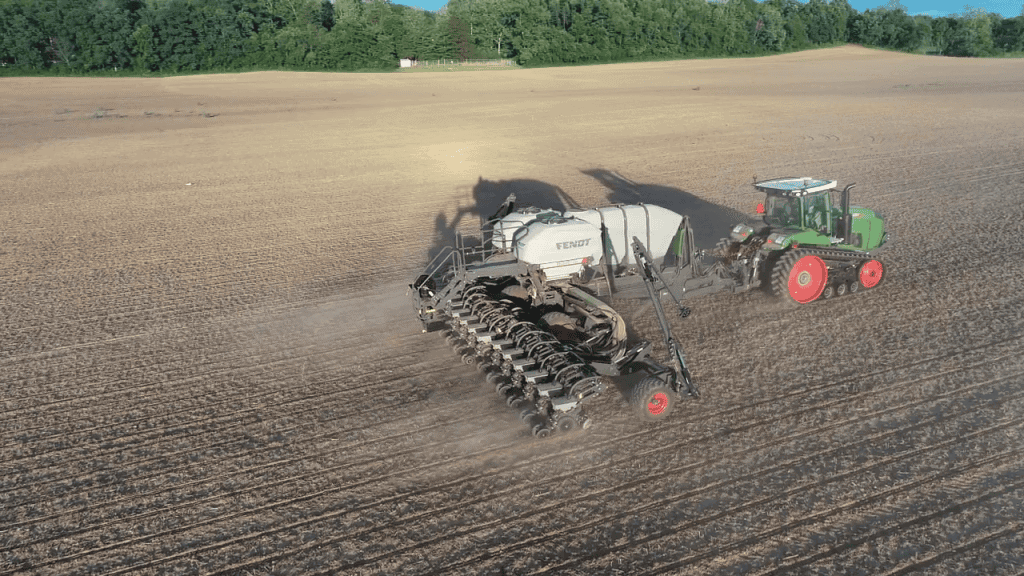

Fendt 900 Vario MT

Engineered from the Ground Up as a Track Machine
The Fendt 900 Vario MT wasn’t adapted from a wheeled tractor — it was designed from the start as a track machine and correctly ballasted from day one, so power, weight, and traction work together instead of fighting each other.

Mobil-Trac System (MTS) for Maximum Traction
The patented Mobil-Trac System delivers better traction with reduced compaction, thanks to its long footprint and pivoting midwheel design — maximizing track-to-ground contact for improved traction and better yields.

Fendt iD Low Engine Speed Concept
By maximizing engine torque at slow speeds, the iD concept creates efficiencies throughout the driveline — delivering higher performance, less engine noise, reduced fuel costs, and extended service life when pulling the heaviest implements through the toughest conditions.

More Than 30 Years of Track Tractor Experience
The 900 Vario MT combines Fendt’s experience installing more than 250,000 Vario gearboxes with over 30 years of building tracked tractors, plus the Fendt operator environment and Fendt Smart Farming functions, for a modern and innovative machine.

AGCO Power™ 9.8L Seven-Cylinder Engine
This highly efficient engine features a high-torque, low-engine-speed concept and delivers 1,400 lb-ft of torque at 1,275 RPM — perfect for heavy draft work — with unmatched lugging ability so you don’t need to downshift or raise the implement when the going gets tough.

Twin Turbocharger System
Fendt’s twin turbocharger system offers excellent engine response and high torque rise at all engine RPMs. There’s no need to wait for turbo lag thanks to the eWastegate, which almost anticipates the boost needed.

Concentric Air System (CAS)
A high-performance fan positioned in front of the cooler unit sucks in cold, dense air and presses it through the radiator with its own hydrostatic drive, delivering ideal cooling to each component independent of engine speed. An optional reversing fan blows air out through the grille to prevent residue buildup.

Tractor Management System (TMS)
TMS provides optimal coordination between the engine and transmission for peak performance, keeping the tractor operating at the most efficient point no matter the load.

Stepless CVT with No Range Changes
The VarioDrive CVT optimizes engine power and maximizes fuel efficiency without any range changes, automatically regulating engine load based on power requirements so you get maximum power whether you’re going 65 feet per hour or 25 MPH.

One Range, 65 Ft./Hr. to 25 MPH
The continuously variable operation covers the full speed range in one range without any intervention by the operator — smooth, easier to operate, and it gets you down the road faster than before.

Direct Torque Transfer for Pulling Power
During field operations, torque is transferred directly through the powertrain, resulting in tremendous pulling power for heavy draft applications.

Smooth, Efficient Propulsion
High-performance hydrostatic devices in the Fendt VarioDrive ensure smooth acceleration and efficient propulsion without gear or range changes.

Oscillating Midwheel Design
The pivoting midwheel design provides better traction and improved ride quality no matter the terrain. Increased oscillation allows the idlers to travel 7 in. upward and 3 in. downward, while left and right track systems move independently from the chassis to minimize compaction.

Smart Ride™ Suspension
You shouldn’t have to choose between comfort in the field and comfort on the road — Smart Ride handles both. Dual coil springs and off-road-style heavy-duty shock absorbers allow for increased oscillation of the hardbar for a smooth, comfortable ride.

Eight Track Widths, Gauge Settings to 160″
Available gauge settings from 72″ to 160″ with eight track width options and monoblock weight offerings make quick, easy ballasting simple for any field condition.

Chevron Tread Design
The chevron tread design ejects debris and reduces slip, while standard 10% larger midwheels with no lip further reduce debris buildup and an ultra-high molecular weight wear ring extends component life even at high road speeds.

Dual-Pump, Load-Sensing Hydraulics
The optional dual-pump, dual-circuit system delivers up to 116 GPM of hydraulic oil capacity, designed to handle the most demanding implements of today and tomorrow. Two load-sensing pumps supply each hydraulic function with just the right amount of oil pressure and volume.

Efficient by Design
Each pump delivers only the oil needed — at a reduced RPM to save fuel — so unused fluid isn’t continuously pumped, engine power isn’t wasted, and overall tractor efficiency improves. The dual-pump system achieves 68 GPM at 1,000 RPM or 116 GPM at 1,700 RPM, so optimal flow is available on demand.

19,000-lb. Three-Point Hitch
The Category 3/4N hitch handles the largest mounted implements, and an active transport dampening system reduces vibration and movement of three-point mounted implements when traveling down the road.

Cat 4 Fixed Drawbar
Standard Cat 4 fixed drawbar provides 11,000 lbs. of vertical load capacity for heavy pull-type implements.

10.4″ VarioTerminal Display
The clear, practical VarioTerminal offers full-screen, half-screen, split-screen, or four-in-one display modes, fully integrating tractor and implement controls, camera function, guidance, and documentation.

Multi-Function Joystick
Assign and control up to ten ISOBUS implement functions with the four-way, multi-function joystick, which includes additional buttons for customized hydraulic assignments, cruise control, engine-speed memory, and VariotronicTI headland management.

Fendt Guide, TaskDoc® & Rate Control
Work with precision without actively steering, even with wide implements or poor GPS reception. TaskDoc quickly captures and wirelessly transfers seed, fertilizer, and fuel data for analysis, while Rate Control automatically executes variable-rate application of seed, fertilizer, and pesticides based on agronomic needs.

Fendt Section Control & Fendt Connect™
Fully automatic section control switches up to thirty-six sections on ISOBUS-capable planters, drills, or sprayers to prevent overlap, while Fendt Connect links your office, dealer, and operators for remote, real-time fleet monitoring and diagnostics.

Backed by Parallel Ag’s Parts & Service Team
Parallel Ag’s expert parts and service team is here to keep your Fendt 900 Vario MT running at peak performance — with knowledgeable staff across all our locations ready to support you throughout the lifetime of your machine.

Genuine AGCO Parts
AGCO replacement parts are made to the same high standards as those used on the assembly line. Shop online at parts.agcocorp.com or talk to your local Parallel Ag parts team to get the genuine parts you need, fast.

Fendt Gold Star Warranty
Three years or 3,000 hours of coverage, including all scheduled routine maintenance and all other required repairs, using only genuine AGCO parts. If your tractor can’t be repaired in 48 working hours, Fendt provides a loaner tractor under this promise.

Gold Star+ Extended Coverage
For longer working periods, extend the standard Gold Star offering with Gold Star+ — all the same benefits, but for as long as five years or 5,000 hours.
