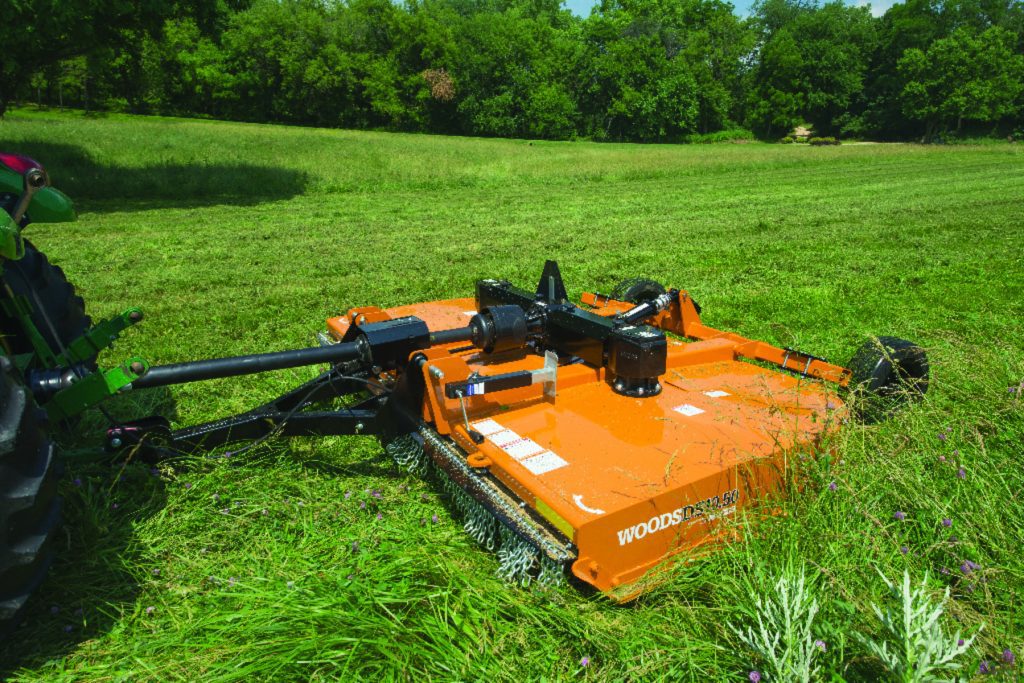

DS10.50 Pull Type

Description

  • Tubular front frame – Greater strength and rigidity for towing
  • Easy to replace Quick-change blade pins under the deck reduce down time
  • Hydraulic tail wheel offers a variable cutting range
  • Cuts brush up to 3 inches in diameter
  • Variable wheel spacing
  • New, advanced gearbox seal technology, designed for harsh conditions and reduces leaks and downtime
  • 120-inch pull-type dual-spindle rotary cutter
  • NOTE: All gearbox horsepower ratings listed in the following specifications are based on Woods’ field testing.
ConditionNew
ModelDS10.50
Tractor PTO HP40-200
Tractor HitchPivoting clevis
Cutting Height Range (in)2 to 12
Cutting Capacity Diameter (in)3
Cutting Width (in)120
Blade Tip Speed (fpm)540 rpm: 15,974
Weight (lbs)2,537
Deck Thickness (in).135 (10 ga)
Side Frame Depth (in)13
Gearbox Warranty6 years
Overall Width /Length (in)127 x 162
Gearbox HP205 center, 160 spindle *Gearbox horsepower ratings listed are based on field testing.
Blade Dimensions (in).5 x 4
Quick-hitch CompatibleYes
Wheel SelectionLaminated, severe duty new ag, foam filled new ag, 15 in rims, used aircraft
Optional Dual Wheels – Pull-typeYes

Features

  • 120-inch pull-type dual-spindle rotary cutter
  • PTO HP: 50 – 205
  • 3-inch cutting capacity
  • Smooth, sloped-top deck for easy water and debris shedding
  • Variable wheel spacing
  • Six-year gearbox limited warranty
