Rear Combination Mowers
Five rear combination mowers to choose from. Click any model below to see full specs.
DM.8612TL-RC | 28'4" Working Width
| Model | DM.8612TL-RC |
| Working Width | 28'4" |
| Conditioner Options | Rubber-on-Rubber |
| Approximate Weight | 5,092 lbs |
| Min Required PTO HP | 180 |
| Suggested Pairing | MF 8S.265 |
DM.9614TL | 30'6" - 31'6" Working Width
| Model | DM.9614TL |
| Working Width | 30'6" - 31'6" |
| Conditioner Options | No Conditioner, Rubber-on-Rubber, Steel-on-Steel |
| Approximate Weight | 4,078 lbs (no conditioner) / 8,068 lbs (with conditioner) |
| Min Required PTO HP | 160 (no conditioner) / 180 (with conditioner) |
| Suggested Pairing | MF 8S.265 (no conditioner) / MF 8S.305 (with conditioner) |
DM.10114TL-RC | 32'2" or 33'2" Working Width
| Model | DM.10114TL-RC |
| Working Width | 32'2" or 33'2" |
| Conditioner Options | Rubber-on-Rubber, Steel-on-Steel |
| Approximate Weight | 8,289 lbs |
| Min Required PTO HP | 230 |
| Suggested Pairing | MF 9S.340 |
DM.10114TL-RC PRO | 32'2" or 33'2" Working Width | ISOBUS
| Model | DM.10114TL-RC PRO |
| Working Width | 32'2" or 33'2" |
| Conditioner Options | Rubber-on-Rubber, Steel-on-Steel |
| Approximate Weight | 8,289 lbs |
| Min Required PTO HP | 230 |
| Suggested Pairing | MF 9S.370 |
DM.10114TL-RCB PRO | 32'2" or 33'2" | Belt Collectors | Top of the Line
| Model | DM.10114TL-RCB PRO |
| Working Width | 32'2" or 33'2" |
| Conditioner Options | Rubber-on-Rubber, Steel-on-Steel |
| Approximate Weight | 10,141 lbs |
| Min Required PTO HP | 250 |
| Suggested Pairing | MF 9S.400 |
*All triple mower systems feature the RazorEdge cutter bar, TurboLift hydraulic suspension, and mechanical or hydraulic breakaway protection. PRO models add ISOBUS automation, including section control, automatic hydraulic suspension, and TIMS capability.
Features
Cut more hay in less time.

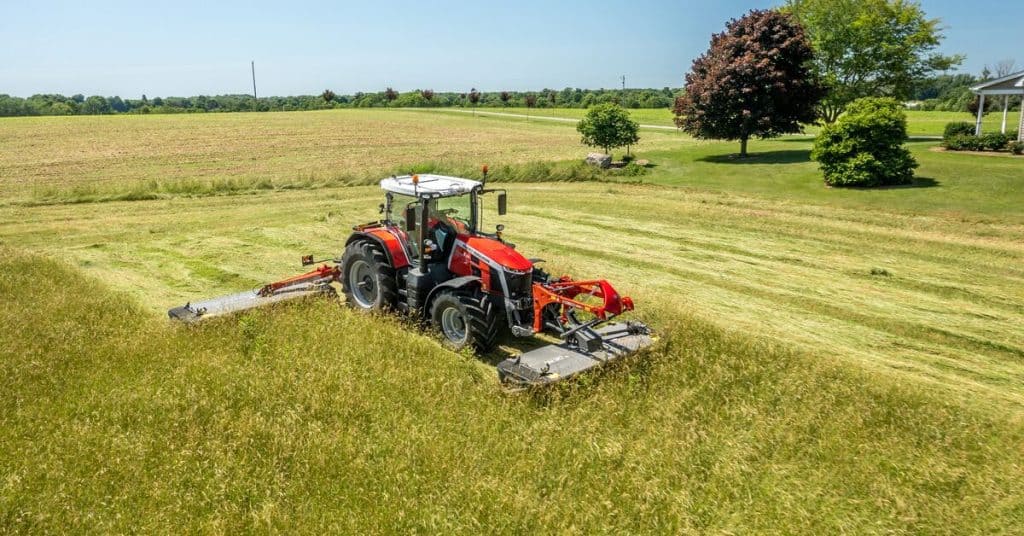

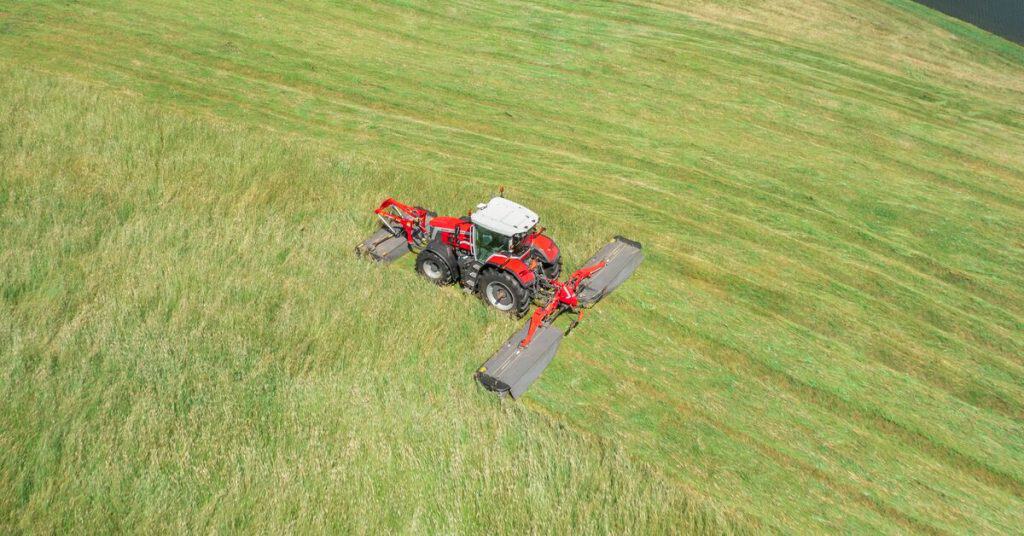

The Massey Ferguson Triple Mower system is engineered for commercial hay producers and large livestock operations that need to cover serious ground without sacrificing forage quality. Cutting widths up to 33’2″ mean fewer passes, less labor, and lower fuel costs per acre. The RazorEdge cutter bar delivers clean, consistent cuts with quick-change knives and shear disc protection. TurboLift hydraulic suspension adapts to terrain in real time, reducing scalping and ash incorporation while protecting your investment. With optional rubber-on-rubber or steel-on-steel conditioners, ECO mode for fuel savings, and ISOBUS automation on PRO models, this is the mower system built for high-acreage operations that demand performance day in and day out.
Front Mowers

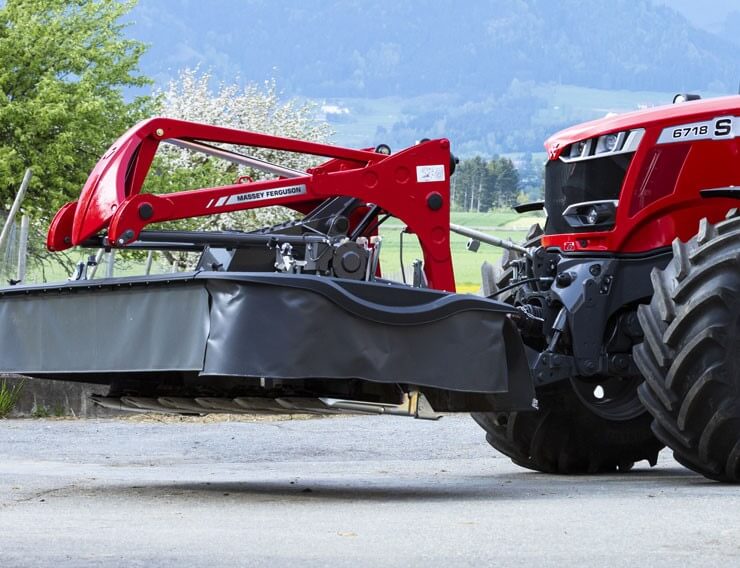

RazorEdge Cutter Bar
Low-profile welded steel cutter bar ensures clean cuts, quick knife changes, and shear disc protection for durability.

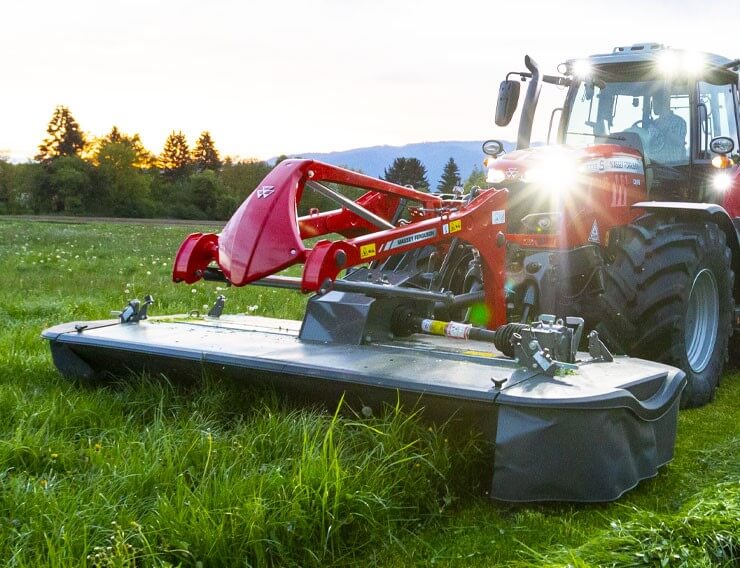

TurboLift Hydraulic Suspension
Fast-acting hydraulic suspension adapts to terrain, reducing scalping, ash incorporation into the swath, and wear, while protecting the mower and tractor.

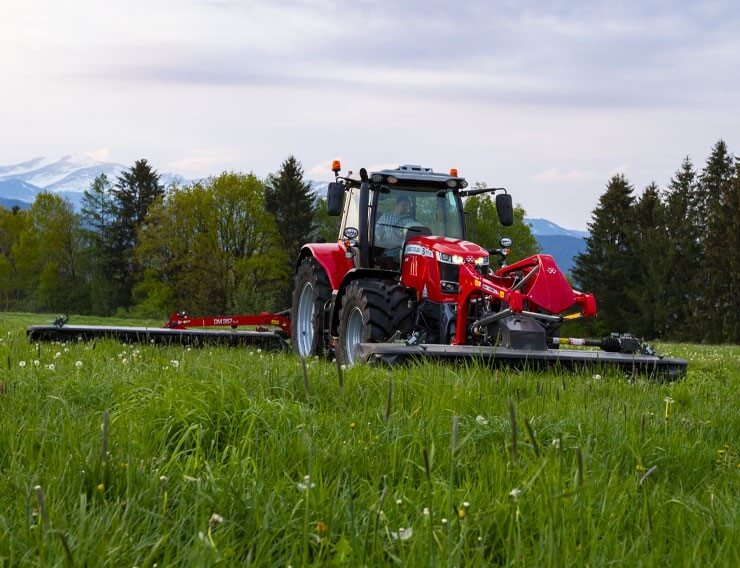

Three-Dimensional Ground Adaptation
Lateral and fore/aft tilt provide a smooth cut on uneven fields, reducing crop loss and improving forage regrowth.

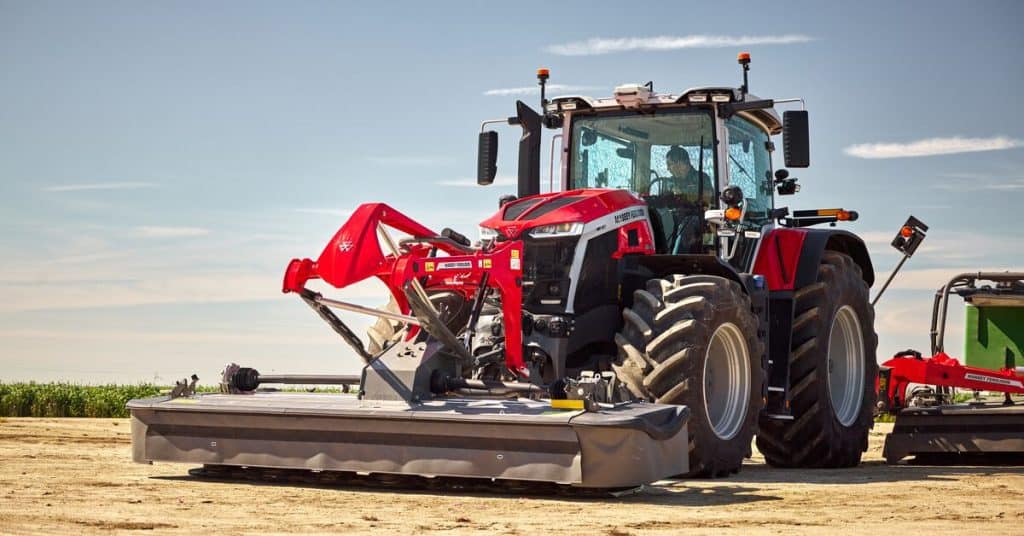

Direct 3-Point Attachment
Easily mount the front mower via the 3-point hitch for secure attachment and smooth lifting and lowering in the field.
Stepless Cutting Height Adjustment
By adjusting the top link, you can achieve the optimum cut height depending on your crop type and ground conditions.

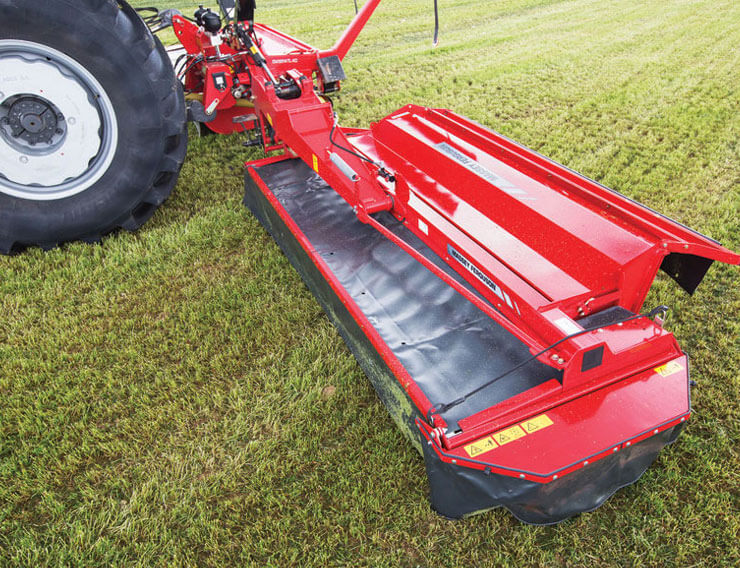

Rear Combination Mowers
Multiple Cutting Width Options
With options from 28’4″ to 33’2″, the rear mowers cover more ground in fewer passes, boosting efficiency and reducing field time.
RazorEdge Cutter Bar
Low-profile fully welded cutter bar ensures precise cuts, durability, and quick blade changes for uninterrupted mowing.
Hydraulic Suspension
Smooth, even mowing on rough terrain with hydraulic suspension that prevents scalping and protects the mower.
Mechanical Breakaway System
Built-in safety feature allows the mower wings to pivot back if they hit an obstacle, reducing damage and downtime.
Performance & Efficiency
Conditioners
Steel-on-steel or rubber-on-rubber conditioner options lead to faster dry down, shorter chopping and baling timelines, and optimized throughput.
ECO Mode for Fuel Savings
Operate at 850 PTO RPM to reduce fuel consumption during lighter workloads without sacrificing cutting performance.
ISOBUS Automation
PRO models feature ISOBUS controls for automated functions like section control, automatic hydraulic suspension, and TIMS capability.
Belt Collectors for Uniform Windrows
Optional belt collectors neatly gather cut crop into uniform windrows, improving harvest efficiency.

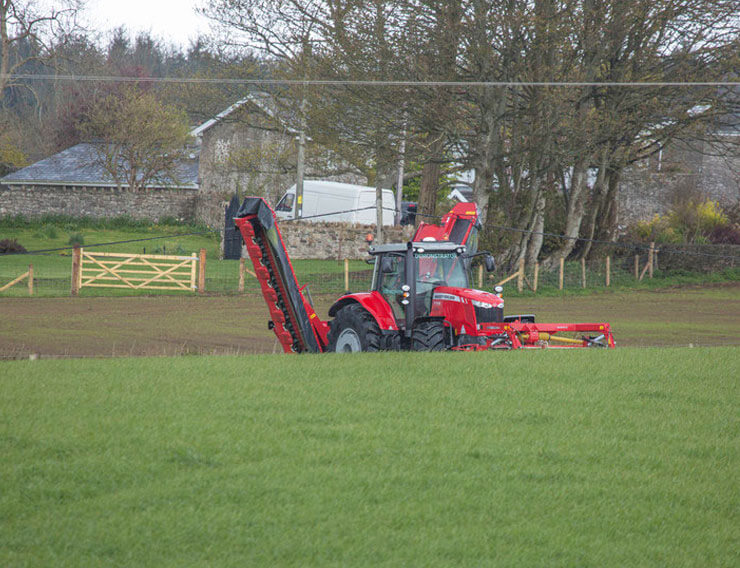

Fast Transitions and Transport
Even with the largest mower option, you’ll move quickly and safely from field to field with in-cab hydraulic folding, narrow transport widths, and 13’1″ transport heights.
Durability

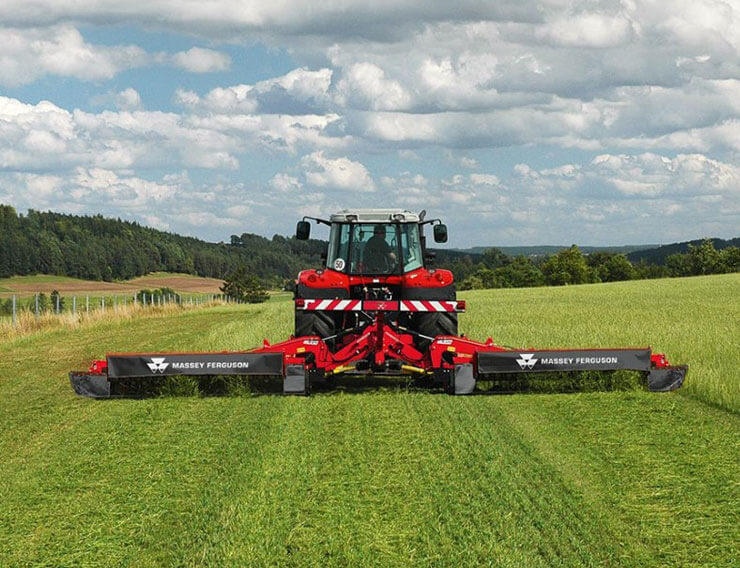

Hydraulic Breakaway Protection
If an obstacle is hit, the mower wings pivot back and up, preventing damage and reducing downtime.
Heavy-Duty Frame and Components
Designed for large-scale operations, the reinforced frame and gearbox withstand long hours and high acreage demands.
Easy Maintenance and Quick Blade Change
DriveGUARD shear disc protection and quick-change blades keep you in the field with minimal downtime.
Built for Continuous Use
From high-acreage farms to commercial hay production, the triple mower is engineered for all day, every day reliability.
