DM Series Disc Mowers

Massey Ferguson DM Series Disc Mowers

Description

A simple way to better hay. DM Series Disc Mowers from Massey Ferguson

The Massey Ferguson DM Series gives you two distinct lines of disc mowers to match your operation. Our Farmer Series disc mowers offer an easy-to-use and easy-to-maintain mower that gets the job done right, at a price point that won’t break the bank. A perfect match for your small scale hay operation or hobby farm. For medium- to large-scale operations covering large amounts of acreage per year, the Massey Ferguson Professional Series disc mowers deliver the ease of use, maneuverability, and transportability you need from a 3-point mounted mower. With working widths from 6’9″ up to 11’6″ and optional conditioner compatibility on select Professional Series models, you’ll find the right disc mower for your hay operation.

Download Brochure

Condition	New
Model	DM Series

Features

Two series, one goal: better hay.
Whether you’re a hobby farmer or running a commercial hay operation, Massey Ferguson DM Series disc mowers are built to deliver clean cuts, minimal maintenance, and reliable performance season after season. Farmer Series mowers use a spur gear drive cutterbar with roll pin shear protection and spring breakaway protection — built to be easy and affordable. Professional Series mowers step up to a shaft-driven cutterbar with compact angle drive modules, drive guard shear protection, a lifetime oil reservoir, and conditioner compatibility on select models. Both series feature self-tensioning 4V drive belts so you can power through any crop with minimal maintenance, and both can be hydraulically lifted to a headland position to clear in-field obstacles.

Farmer Series Productivity

A Full Range of Operations
Fields are not always perfectly level. Farmer Series disc mowers are capable of functioning in agricultural applications through a large array of operating angles to match the needs of a wide range of conditions.

Efficient Drive System
Farmer Series disc mowers are equipped with an efficient, easy-to-maintain drive system that keeps maintenance minimal.

It’s All About Power
Power is transferred through a self-tensioning 4V drive belt, meaning you can power through any crop with minimal need for maintenance. Main drive components are protected by a standard overrunning clutch.

A Match for More Tractors
Relatively low PTO HP requirements and an easy-to-manage size mean Farmer Series disc mowers fit nicely with a wide range of tractors and operations.

Farmer Series Innovation

Cut to the Point
Farmer Series disc mowers are equipped with a common oil bath spur gear-driven cutterbar that efficiently transfers power to each disc.

Low Profile
The cutterbar’s extremely low profile gives a clean cut through a wide range of cutting heights while keeping horsepower usage minimal.

Set It and Forget It
Set the 3-point hitch at the proper height and never worry about touching it again. The mower can be hydraulically lifted to a headland position to clear small in-field obstacles.

Peace of Mind
Roll pin shear protection on each disc and spring breakaway protection on the hitch minimize downtime and repair costs.

Professional Series Performance

Peace of Mind
Drive guard shear protection on each disc plus spring breakaway protection ensures minimal downtime and repair costs should you contact any obstacles.

Shaft-Driven Cutterbar
Professional Series disc mowers use a shaft-driven cutterbar with individually segmented compact angular gear modules. Greater power transfer through the cutterbar with quiet, smooth-running operation.

Industry-Exclusive Conditioner Compatibility
The MF DM 255-P and MF DM 306-P offer conditioner compatibility that delivers significant improvements in crop drydown, leading to a shorter harvest window and more valuable hay.

Easy Conditioner Attachment
A conditioner can be easily removed and reinstalled as needed by the operator.

Lifetime Oil Reservoir
Maximize uptime and simplify service with a lifetime oil reservoir. No hourly or yearly oil changes when operating in normal conditions.

Professional Series Productivity

Working Together
Professional Series disc mowers are offered in a wide range of operating widths and are available with and without conditioners. Easily match a Professional Series mower to your tractor and your operation.

A Full Range of Operations
Capable of operating in agricultural applications from -30 degrees through 90 degrees without issue. Tackles uneven fields with no problem.

It’s All About Power
Power is transferred through a self-tensioning 4V drive belt for minimal maintenance. Main drive components are protected by a standard slip clutch.

Set It and Forget It
Set the 3-point hitch at the proper height and never worry about touching it again.

Headland Position
The mower can be hydraulically lifted to a headland position to clear small in-field obstacles or already cut crop.

Model	MF DM 205 (F)
Type	Spur gear drive, Rear mounted with Inner drive shoe
Working Width	6'9" (2.06 m)
Min PTO HP	41
Base Mower Weight	897 lbs (407 kg)
Conditioner Compatibility	Not available

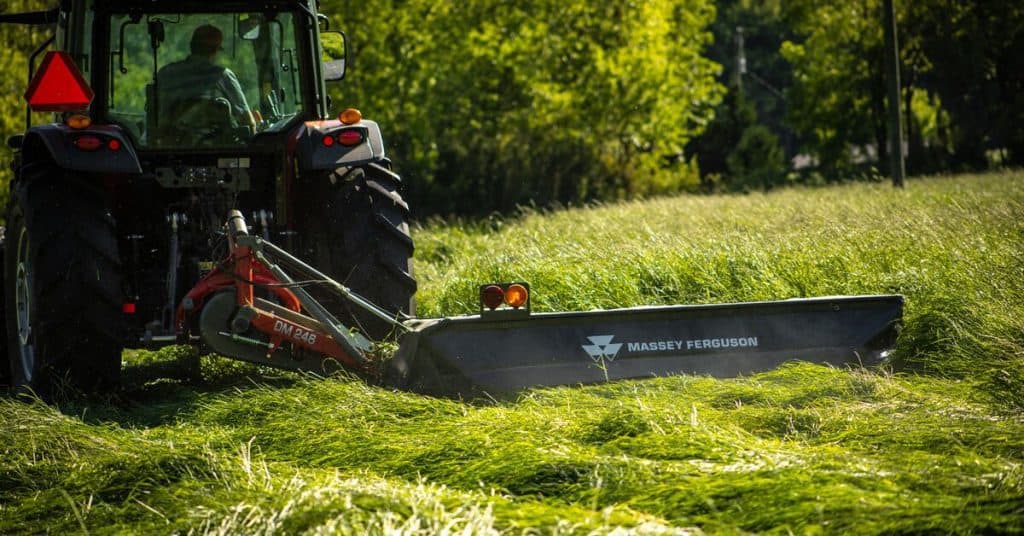

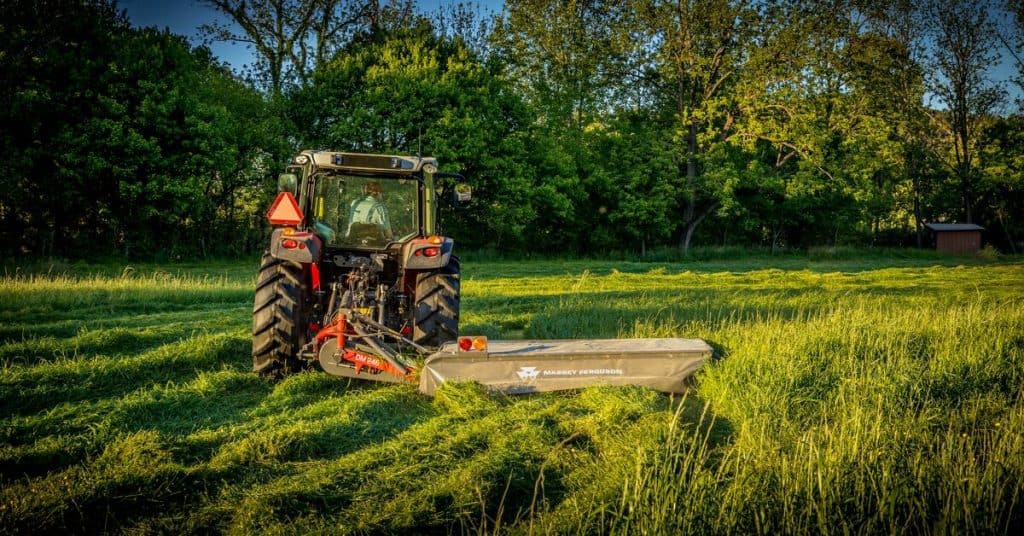

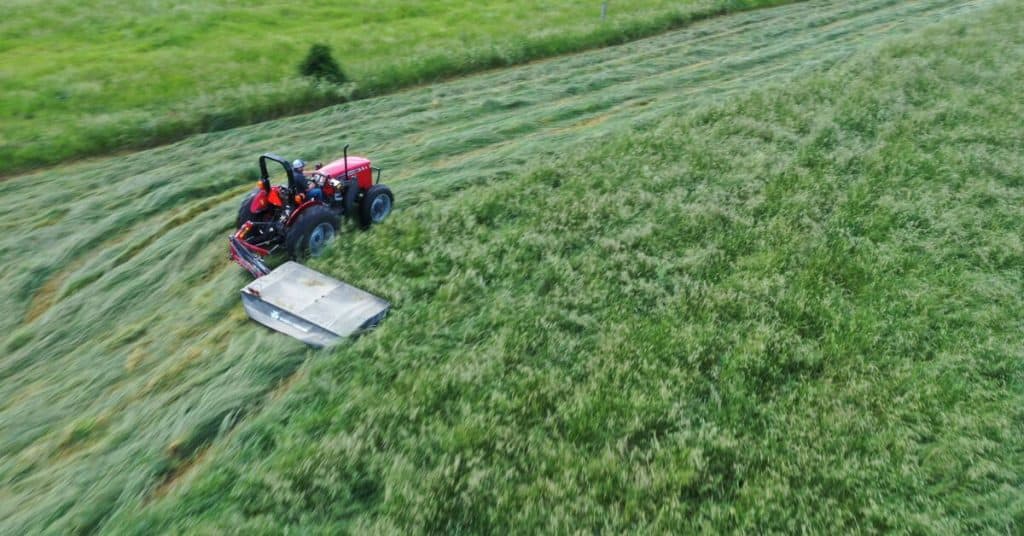

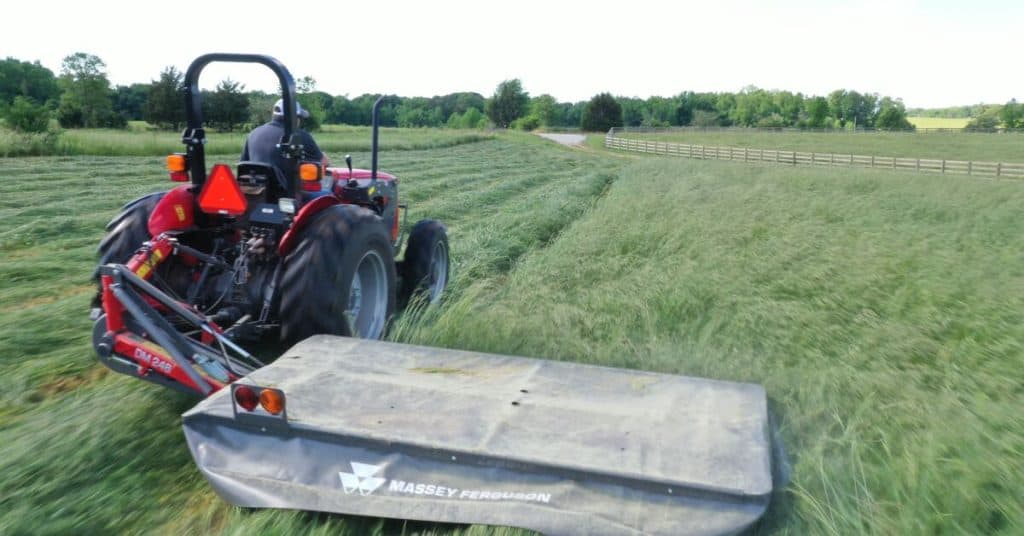

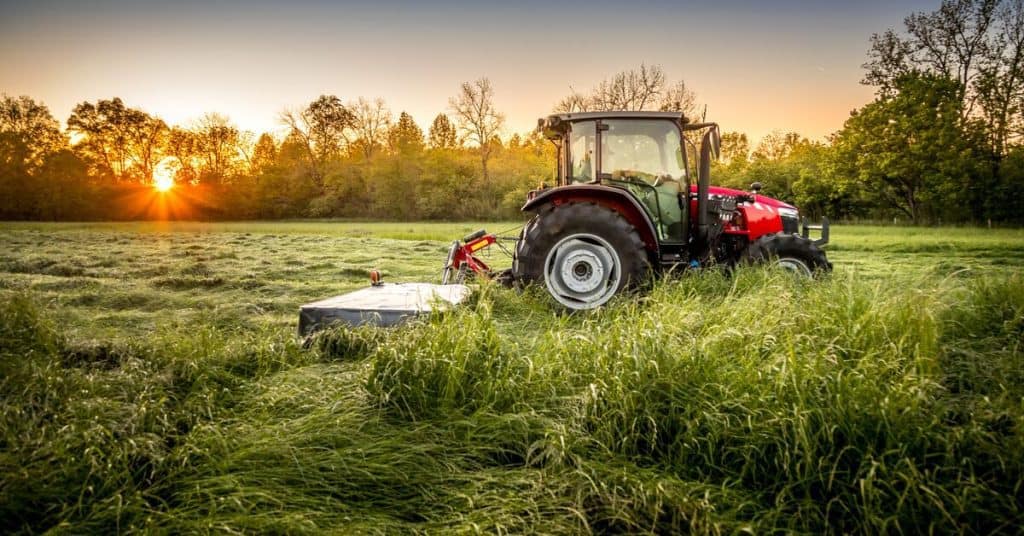

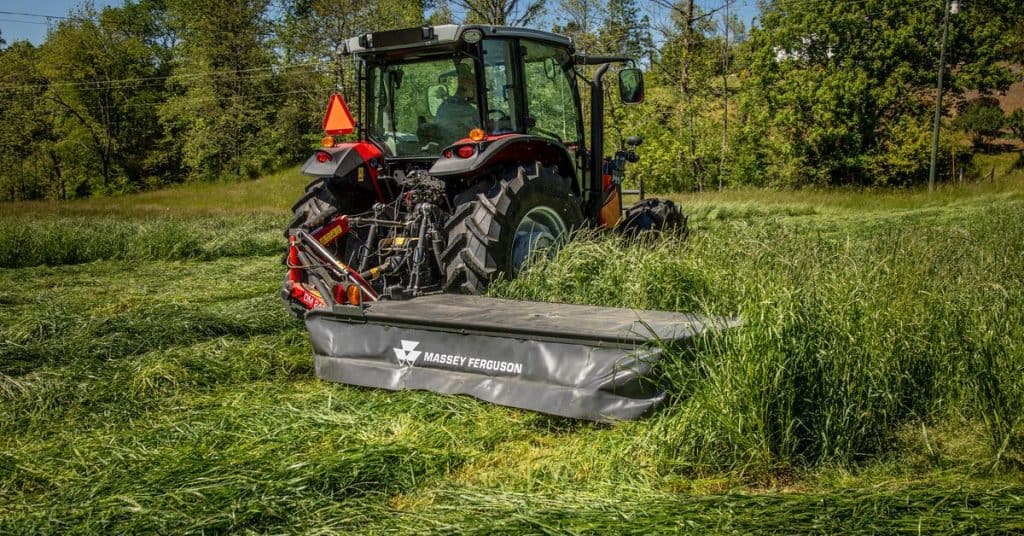

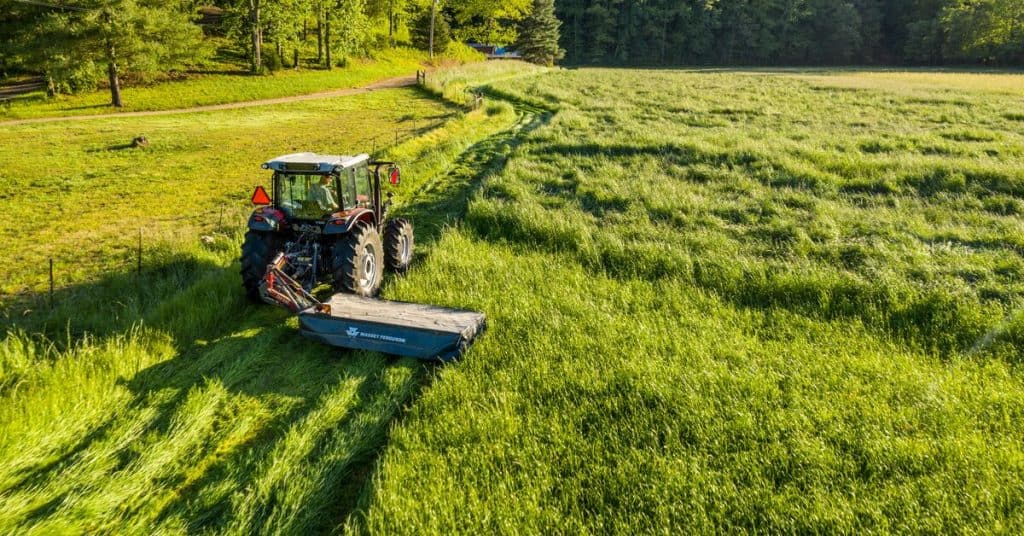

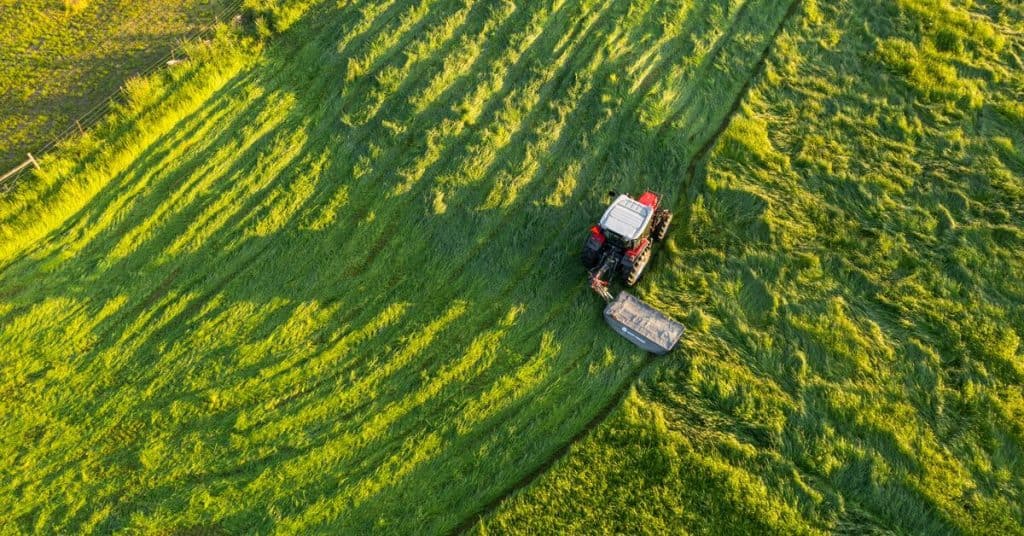

Model	MF DM 246
Type	Spur gear drive, Rear mounted with Inner drive shoe
Working Width	7'11" (2.42 m)
Min PTO HP	50
Base Mower Weight	964 lbs (437 kg)
Conditioner Compatibility	Not available

Model	MF DM 287
Type	Spur gear drive, Rear mounted with Inner drive shoe
Working Width	9'3" (2.82 m)
Min PTO HP	60
Base Mower Weight	1,047 lbs (475 kg)
Conditioner Compatibility	Not available

Model	MF DM 255-P
Type	Rear mounted, Side attachment, Compact angle drive
Working Width	8'4" (2.55 m)
Min PTO HP (no conditioner)	54
Min PTO HP (with conditioner)	75
Base Mower Weight	1,389 lbs (630 kg)
Conditioner Compatibility	Tine or Rubber

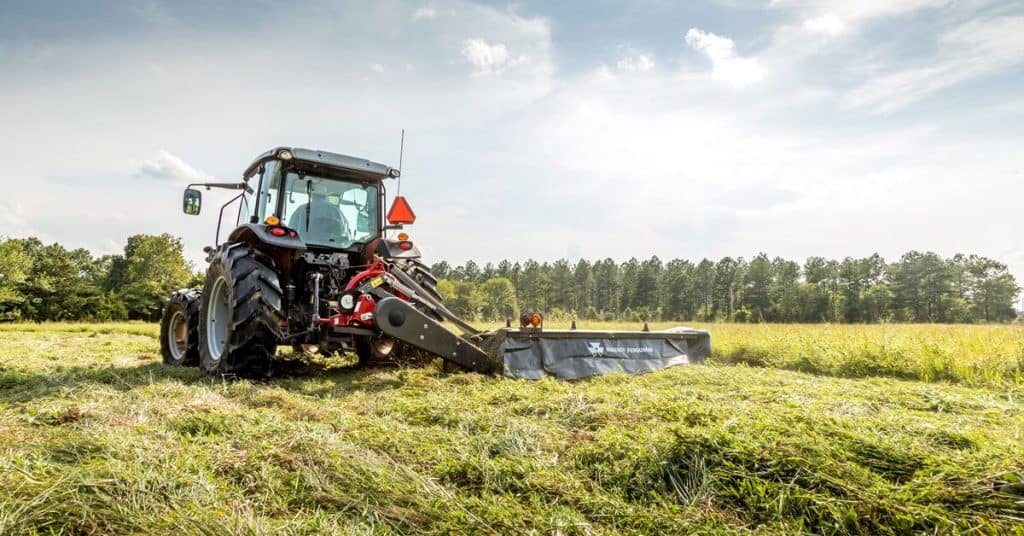

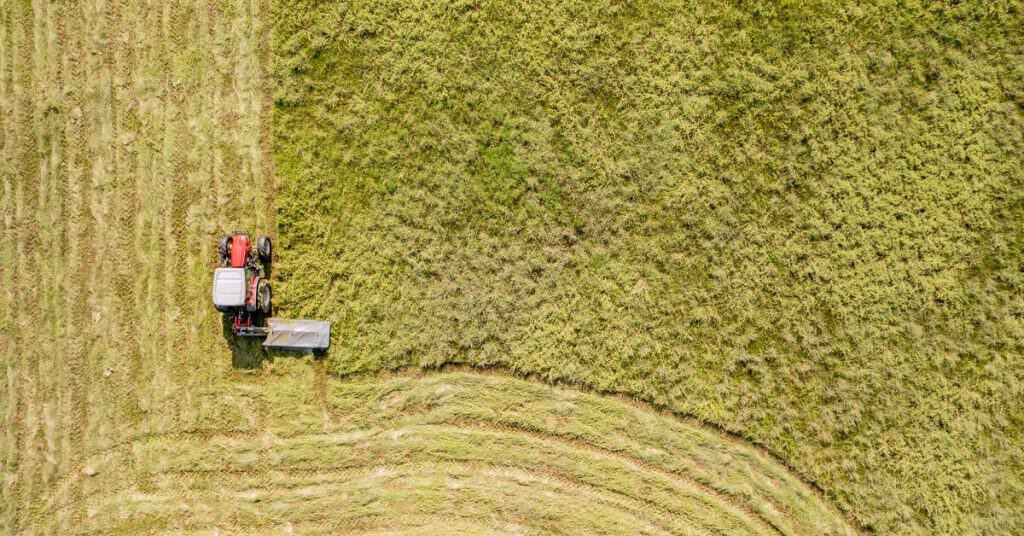

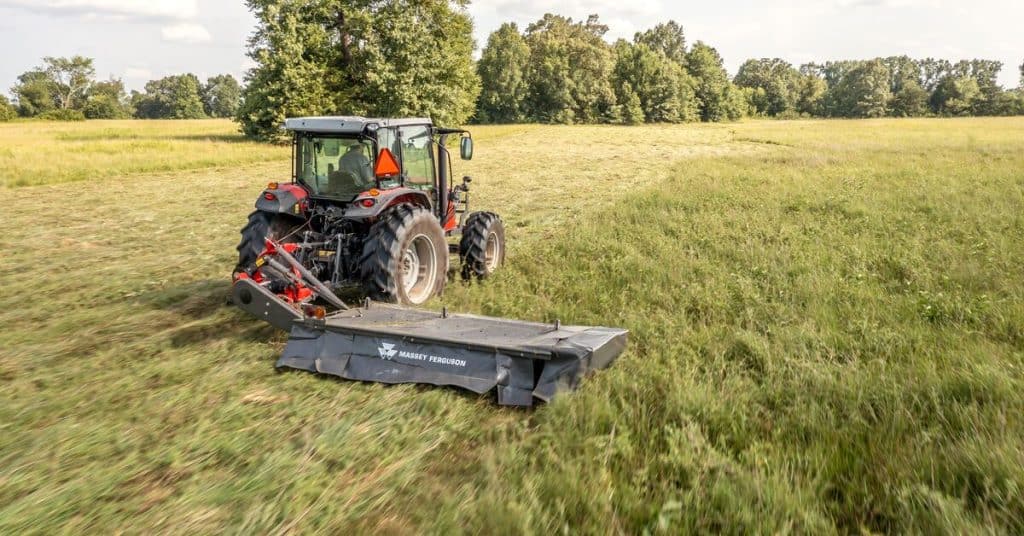

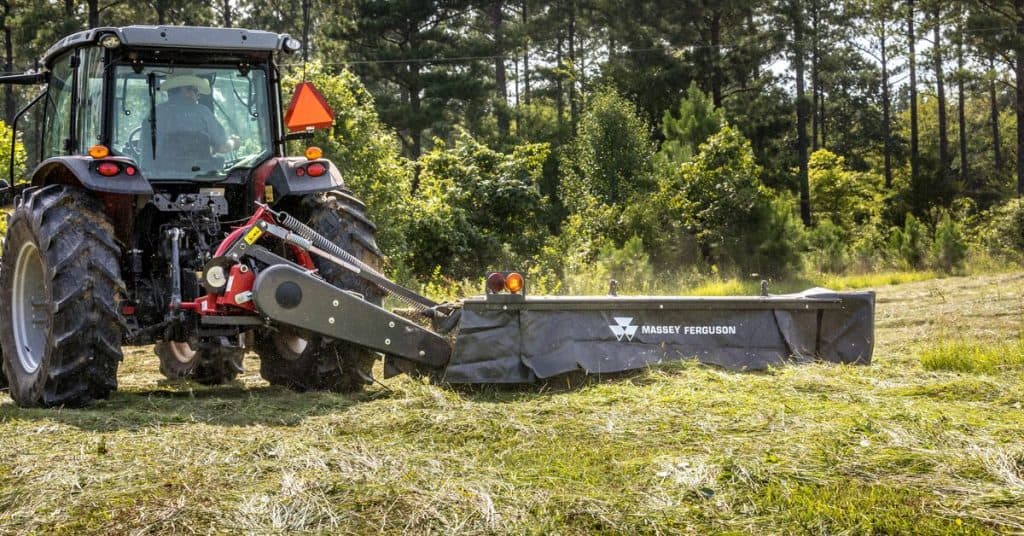

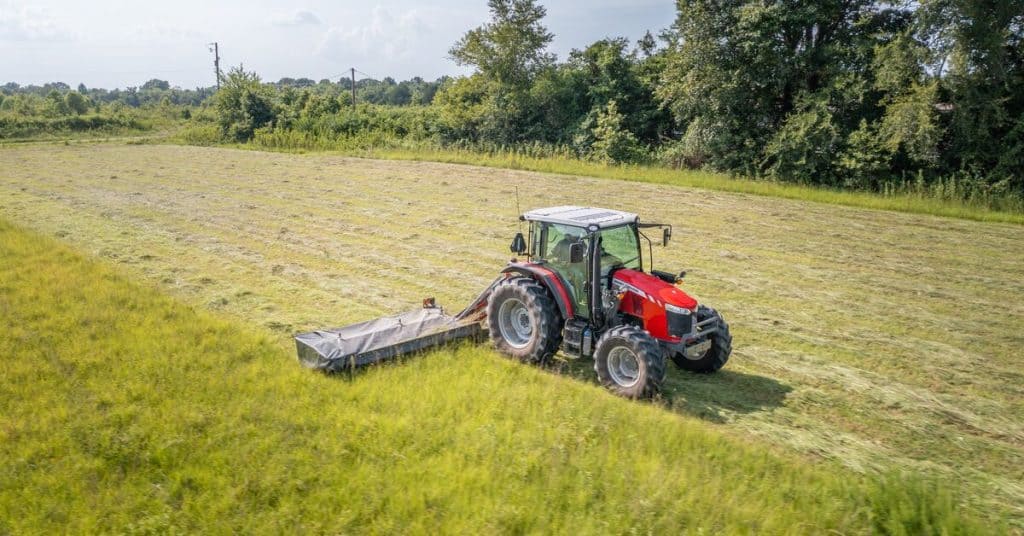

Model	MF DM 306-P
Type	Rear mounted, Side attachment, Compact angle drive
Working Width	9'10" (3.0 m)
Min PTO HP (no conditioner)	61
Min PTO HP (with conditioner)	86
Base Mower Weight	1,596 lbs (724 kg)
Conditioner Compatibility	Tine
