Duo Lift DC6050

Call Now Get A Quote Schedule A Visit Value Your Trade Apply for Financing

Description

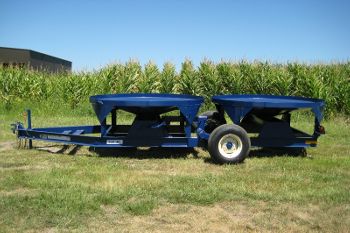

The Duo Lift DC6050 hauls two 2,500 or 3,000-gallon cone bottom poly tanks side by side. A crank-style jack lifts and lowers each tank cone for loading. D.O.T. safety chains, conspicuity tape, and ag lights keep the trailer road-ready. Transport this trailer empty, since tanks are purchased separately.

Condition New
Model DC6050

Specifications

Model DC6050
Condition New
Type Duo Cone Bottom Poly Tank Transport Trailer
Tank Capacity (2) 2,500 or (2) 3,000 Gallon Cone Bottom Tanks, 30° Slope, 90" Diameter (Tanks Not Included)
Trailer Weight 2,560 Lbs. (Without Tanks)
Frame 6" Structural Channel
Capacity (Transport) 4,000 Lbs.

Features

Running Gear & Frame

Cold Rolled Spindles
The 2-inch diameter, 1144 cold rolled spindles support a stable ride.

611 Hubs
611 hubs on a 6-bolt circle carry up to 3,600 pounds each.

15″ x 6″ Wheels
15 by 6-inch wheels mount on a 6-lug, 6-inch bolt circle.

Tubeless Tires
The trailer rides on 11L x 15 tubeless tires rated for the road.

Structural Channel Frame
A 6-inch structural channel frame supports two poly tanks at once.

Loading & Lift System

Crank-Style Jack Lift
A heavy-duty jack crank lifts and lowers the tanks with ease.

Mechanical Side-Wind Lift
A mechanical side-wind lift system raises and lowers each tank cone.

Dual Transport Height Lock
Dual lock pins with a retaining chain secure the trailer at transport height.

Top-Wind Tongue Jack
A top-wind tongue jack makes hookup and setup simple.

Safety & Convenience

Safety Chains & Ag Lighting
Two D.O.T. safety chains and ag transport lights keep you safe and visible.

Tank Hold-Downs & Hose Hooks
Two tank hold-downs and two hose hooks per cone keep gear secure.

Tongue-Mounted Pump Platform
A platform in the tongue supports your pump for easy access.

Adjustable Clevis Hitch
An adjustable clevis hitch matches your tow vehicle’s hookup height.

Operator’s Manual Canister
An onboard canister keeps the operator’s manual on hand in the field.
