DB150

Description

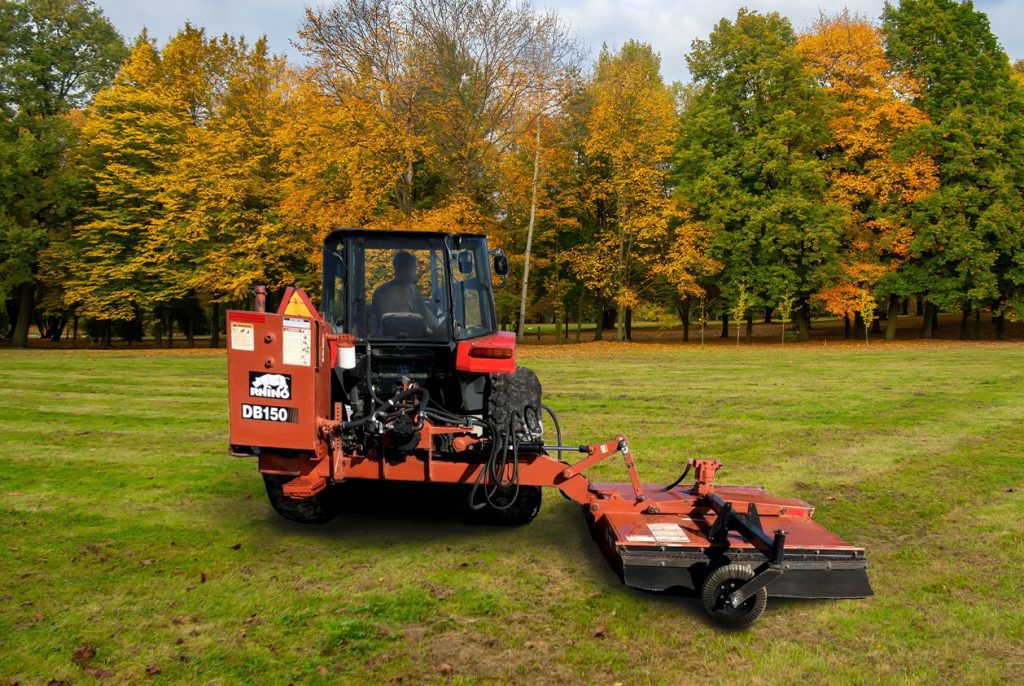

Over 30 years of hydraulic mower design experience has made the Rhino® DB150 the preferred choice of experienced operators for the mowing of pond banks, levees, drainage ditches, and hard-to-reach areas.

The DB150 can extend to a maximum of 158″ from centerline, allowing the 60 inch rotary head to cut areas that are difficult or impossible to reach with ordinary mowers. Being hydraulically driven, maintenance is reduced. The DB150 utilizes a 60 gallon max hydraulic system, allowing cooler operation. The reservoir serves as a stationary counterweight on the mainframe, eliminating the traffic hazard of a movable counterweight. To ensure a clean cut, the DB150 features updraft blades and a blade tip speed of 20,028 FPM.

The DB150 can be retracted to a width of 119″ for easy transport on narrow roads and through narrow gates. The operating range of the head is 85° up and 90° down to handle many different applications. The transport-locking arm can be attached easily to lock the head in transport position for enhanced safety during transport. Unit hook-up and storage is made easier by the standard support stand.

Potential traffic hazards are reduced by the stationary oil reservoir. Unlike most competitive models, the DB150’s counterweight does not extend out into traffic when the cutting head is extended. The optional side gauge wheel helps the head follow the ground contours. The heavy-duty boom arm is constructed using a special steel alloy that adds strength and rigidity.

The hydraulic motor of the DB150 mounts to the frame, not the deck, to help reduce downtime and repair costs. The gearbox mount access hole allows for easy access to the spindle housing grease fitting. The clean deck design of the DB150 increases the life of the unit by allowing for easier clean-up.

A Cat 4 driveline is standard equipment on the DB150, allowing for easy unit hook-up. The speed increaser and hydraulic pump are mounted to the frame for a secure mount and easy access to component parts. A heavy duty ball valve separates the hydraulic reservoir from the hydraulic pump, motor, and hoses and can be closed to reduce oil loss during maintenance and repair. The driveline is fully shielded for enhanced safety.

ConditionNew
ModelDB150
Cutting Width5' (60'')
Transport Width119''
Overall Width (Head)65 1/4''
Overall Length (Head)71 3/8''
Cutting Height (Min)1''
HitchCAT 2 & 3 QH Compatible w/ Adapter Kit
Blade CarrierPan
Blades1/2'' x 4'' Updraft
Blade RotationClockwise
HP Required60, with adequate front wt.
Tractor PTO Speed540 RPM
Oil Reservoir Capacity55 Gallons (Factory Filled)
Max System Pressure3,000 PSI
Blade Tip Speed16,870 FPM
Horizontal Reach (Max.)158'' (from center of tractor)
Extension Cylinder Stroke30''
Cutting Capacity (Max.)1''
Driveline SizeCAT 4
Overload ProtectionRelief Valve
Deck Thickness10 Ga
Side Skirt10 Ga x 9 1/4''
Range of Head Movement (Degrees)85º Up / 90º Down
Hydraulic Pump Capacity18.32 GPM
Skid ShoesReplaceable
Safety DeflectorsRubber Deflectors or Chain Guards
Weight (Approx.)2,140 lbs. with oil

Features

  • CAT II-III Quick Hitch
  • Hydraulic Breakaway
  • 60 Gallon Oil Reservoir
  • 190 Degrees of Head Movement
  • 2” Diameter Cut Capacity
  • 9 ½ Foot Transport Width
