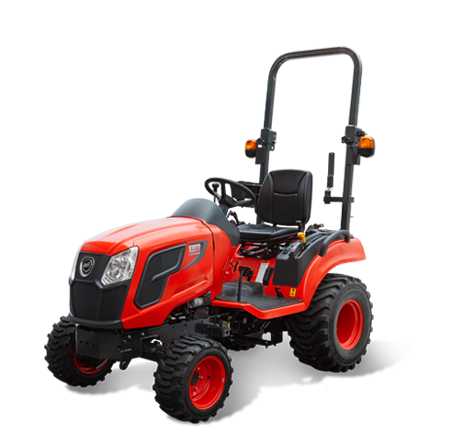

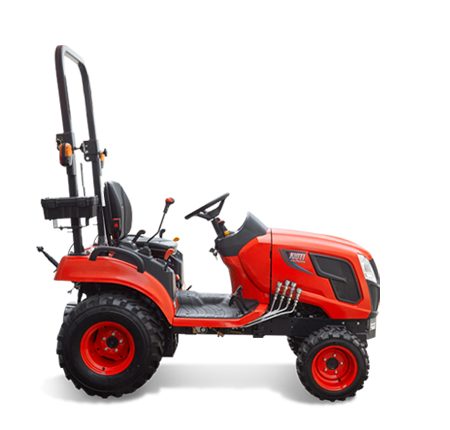

KIOTI CS2520 SUBCOMPACT TRACTOR

Description

  • Premium, water-cooled diesel engine
  • Rear differential lock
  • Ergonomic operator work station with tilt steering wheel
  • Mid PTO
  • Rear PTO and Category I three-point hitch
  • Twin HST Pedals for effortless forward/reverse movement
  • Joystick Valve
ConditionNew
ModelCS2520
Engine
Engine Model3C100LFH-U2
Engine Gross Power24.5 hp (18.3 kW)
Rated Speed3,200 rpm
No. of Cylinders3
Fuel TypeDiesel
Displacement61.5 cu in. (1,007 cc)
Fuel Tank Capacity6.7 gal. (25.5 L)
Transmission
Transmission TypeHydrostatic
Main GearHydrostatic
No. of Travel Speeds - Forward / ReverseInfinite, 2 Range
Min. Travel Speed of Forward w/ Ag @ Engine rated speed0 mph (0 km/h)
Max. Travel Speed of Forward w/ Ag @ Engine rated speed9.57 mph (15.4 km/h)
Power Take-Off
PTO TypeIndependent
PTO Power18.5 hp (13.9 kW)
Rear PTO Speeds(1st)540 rpm
Mid PTO Speeds2,200 rpm
Brakes and Clutch
BrakesWet Multi Disc
Dimensions w/ AG Tire
Length w/ 3-point hitch99.3 in. (2,523 mm)
Width45.9 in. (1,168 mm)
Height From Top of the Highest Point88 in. (2,226 mm)
Wheelbase55.1 in. (1,400 mm)
Ground Clearance6.4 in. (162 mm)
Front Tread Ag Tires - Min44.6 in. (1,133 mm)
Rear Tread Ag Tires - Min46 in. (1,168 mm)
Turning Radius w/ Brake8.2 ft. (2.54 m)
Hydraulics
Total Pump Flow6.97 gpm (26.4 L/min)
3-Point Hitch
Standard CategoryCategory 1
Maximum Lifting Capacity (24”aft. of hitch)700 lbs. (318 kg)
Control TypePosition
Weight
Weight w/ Ag Tires w/ ROPS1,554 lbs. (705 kg)

Features

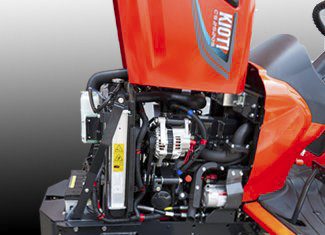

Premium Diesel Engine

A 24.5 hp (18.3 kW) optimized combustion diesel engine has large power output, yet low fuel consumption. Fluid service and inspection locations are easily accessible to the operator.

Headlights

55W lamps are the brightest in this tractor’s class.

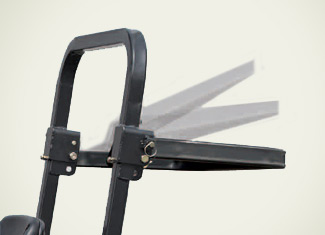

Foldable ROPS

The standard fold-down roll bar allows you to move into low-clearance areas quickly and easily.

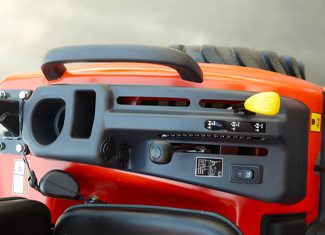

Control Levers

The HST with HI-LO range lever allows the tractor to overcome a wide range of load tasks. The rear PTO and mid-PTO can be controlled separately or together with a simple in-line shifting lever. The height adjustment lever allows the operator to control the mid-mount mower’s cutting height easily.

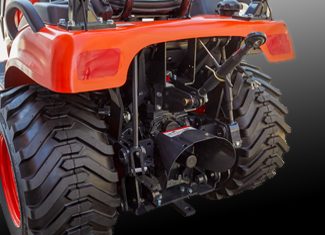

Rear PTO and 3-Point Hitch

The rear PTO and high-capacity three-point hitch can accommodate a variety of implements and attachments. The flip-up PTO guard ensures easy implement attachment.

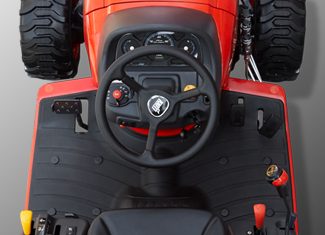

Ergonomic Operator Station

The ergonomically designed workstation places operator controls within easy reach for maximum comfort.

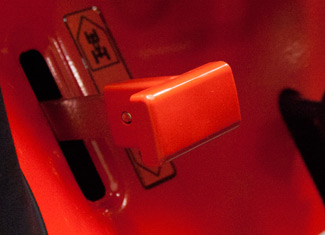

Four Wheel Drive

Single-lever engaged 4WD is standard on the CS2520 tractor.

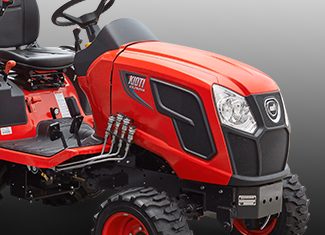

Distinctive Hood Design

The streamlined hood design improves the visibility for the operator. A vertical opening hood allows for easy access to the air filter, fluid service and inspection locations fuse box and electrical components.

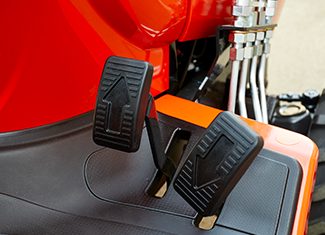

Twin HST Pedals

Twin HST pedals offer easy forward and reverse movement with smooth engagement, acceleration and deceleration. Pedal pressure is minimized which reduces operator fatigue during long hours of use.

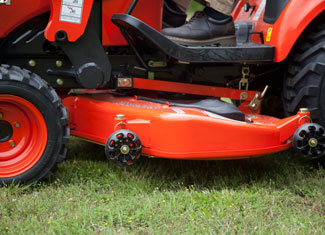

Mid PTO

The standard mid PTO (2,200 rpm) allows you to use implements such as a mid-mount mower.

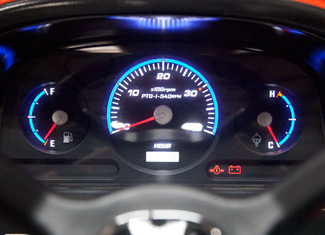

Illuminated Dashboard

The dashboard illuminates when the engine is started. The digital gauge package includes tachometer, fuel and temperature gauges along with a low fuel warning lamp.
