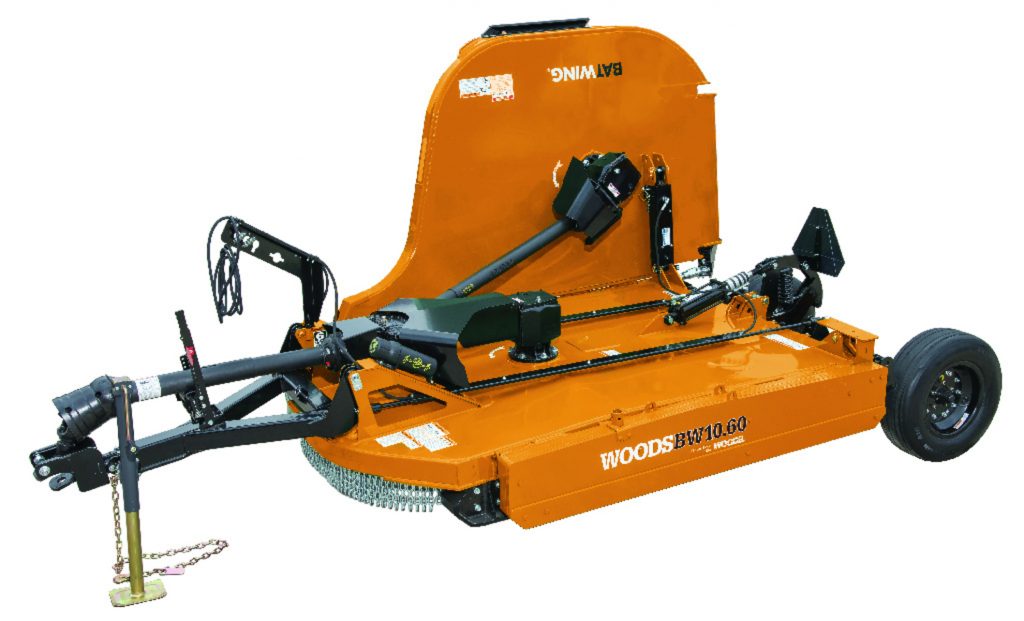

BW10.60

Description

  • Ideal for cutting tall brush and trees up to 4 inches in diameter
  • Patented driveline lift assistance system makes it easy to hook up
  • Rounded wings easily maneuver around obstacles and slice through tall brush while the curved leading edge shrugs off impact
  • New gearbox seal technology reduces leaks and downtime
  • A steel tube around the perimeter absorbs shock and creates a stronger, longer-lasting machine
  • Woods’ exclusive greasable Quick-change blade pins allow blade changes from the top of the deck, in the field
  • Strategically placed, welded baffles cut and distribute debris evenly
  • NOTE: All gearbox horsepower ratings listed in the following specifications are based on Woods’ field testing.
ConditionNew
ModelBW10.60
Tractor PTO HP55-275
Hitch TypeSwivel clevis
Cutting Height (in)2 to 15
Cutting Capacity Diameter (in)4
Cutting Width (in)126
Blade Tip Speed (fpm)15,700 at 540 rpm; 16,000 at 1,000 rpm
Weight (lbs)4,400
Deck Thickness (in).179 (7 ga)
Side Skirt Thickness (in)0.25
Side Skirt Depth (in)13
Transport Width (in)93
Wing Flex Up/Down (degrees)90 up, 22 down
Driveline RatingCAT 6 CV main, CAT 4 wing
Splitter/Wing Gearbox Rating (hp)275 / 225 *Gearbox horsepower ratings listed are based on field testing.
Output Shaft Diameter (in)3
Tongue Weight (lbs)1,350
Wheel Options15 inch rims; 21 inch laminated; 25 inch severe-duty Ag; or 29 inch used aircraft
Gearbox Warranty (yrs)6
OptionsDouble row chain shielding; dual wheels; LED lights; shredding kit; deck ring; spring axle; full walking tandem
SuspensionSingle spring on center wheel yoke or spring-loaded axles
Blade Overlap (in)6
Blade Dimensions (in).5 x 4
Cutting Area ShieldingStandard chain shielding

Features

  • Ideal for cutting tall brush and trees up to 4 inches in diameter
  • Patented driveline lift assistance system makes it easy to hook up
  • Rounded wings easily maneuver around obstacles and slice through tall brush while the curved leading edge shrugs off impact
  • New gearbox seal technology reduces leaks and downtime
  • A steel tube around the perimeter absorbs shock and creates a stronger, longer-lasting machine
  • Woods’ exclusive greasable Quick-change blade pins allow blade changes from the top of the deck, in the field
  • Strategically placed, welded baffles cut and distribute debris evenly
  • NOTE: All gearbox horsepower ratings listed in the following specifications are based on Woods’ field testing.
