BPX9010 Bale Processor

Description

Simple process, tough processor.

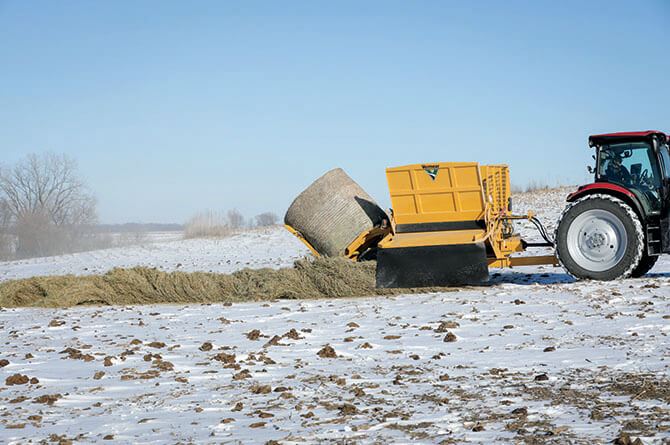

Meet the BPX9010 bale processor. Distribute a consistent, uniform windrow of crop along the bunk line or out in the pasture. Or spread bedding with consistency and accuracy at ranges up to 50 ft (15.2 m). This workhorse combines simplicity, durability and versatility — an all-around processor ready to perform a variety of applications.

ConditionNew
ModelBPX9010 Bale Processor

DIMENSIONS AND WEIGHTS

  • Length: 15.8 ft
  • Height: 8.5 ft
  • Transport Width: 8.2 ft
  • Working Width: 11.2 ft
  • Weight: 5240 lbs
  • Drawbar Weight: 1480 lbs
  • Axle adjustment: 12 in (30.5 cm) each axle
  • Tires: Standard: 14L x 16.1FL; Optional: 16.5L -16.1SL 6 SofTrac II flotation tire

TRACTOR REQUIREMENTS

  • PTO horsepower minimum: 85 hp (63 kW)
  • PTO horsepower recommended: 100 hp
  • PTO horsepower maximum: 210 hp
  • PTO speed: 1000 rpm
  • Hydraulic Type: 3 double-acting (2 double-acting with optional kit)
  • Hydraulics Pressure: 2000 psi
  • Hydraulic flow rate: 8 gpm

TUB

  • Bale rotation: 3 roller chains with bolt-on cross slat
  • Bale size capacity: (2) bales, 6 ft x 5 ft (1.8 m x 1.5 m)
  • Bale weight capacity: 2500 lbs

PROCESSING SYSTEM

  • Cut Control Bar Adjustment: Hand lever with 5 settings, plus an additional high/low setting
  • Cut Control Bar Quantity: 7
  • Flail description: 7/16 in x 5-9/16 in (1.1 cm x 14.1 cm) in tempered spring
  • Flail Drum Diameter: 26.8 in
  • Flail Drum Length: 78 in
  • Flail Drum Speed: 1000 rpm
  • Flail Drum Quantity: 30

DISCHARGE SYSTEM

  • Discharge Direction: Right hand
  • Horizontal spread distance: Up to 50 ft (15.2 m)

FEATURES

  • Safety Chain: Optional
  • Torque Protection - Driveline: Shear bolt
  • Scale kit: Optional
  • Material containment kit: Optional
  • Powered sidewall: Optional
  • Square bale kit: Optional
  • Front discharge curtain: Optional

Features

Versatile bale processing

The BPX9010 bale processor has the versatility to process square bales with the optional powered sidewall kit and optional straight fork kit.

Slat and chain bale rotation design

The slat and chain bale rotation design feeds the bale consistently into the rotor – reducing the need for reverse rotation.

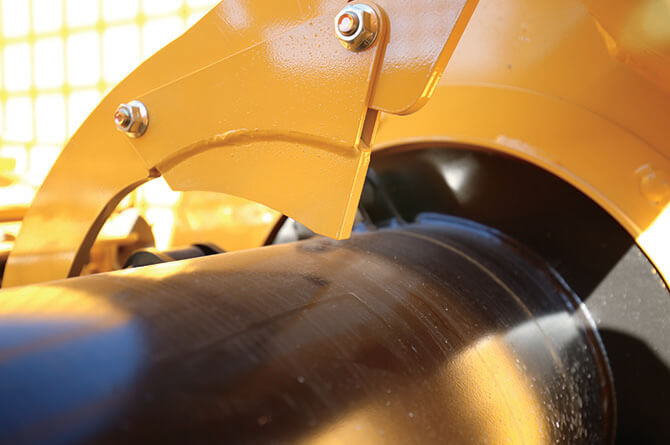

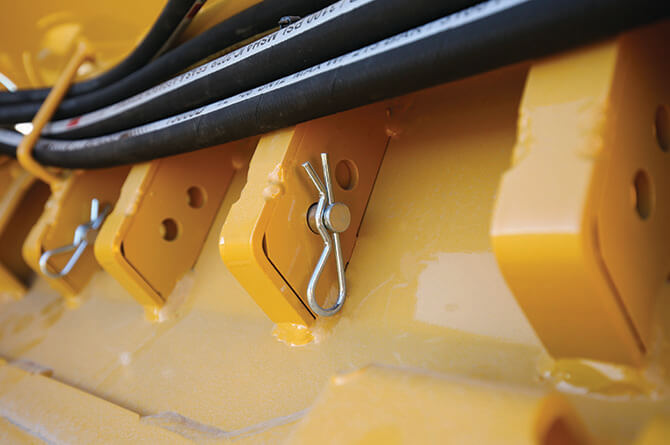

Toolless cut control bar design

The new toolless cut control bar design allows dual adjustments for increased aggression easily accessible from outside the machine. Ten different settings allow producers to be in control of processing speed and material size.

Rotor cleaner attachment

The rotor cleaner attachment on the cut control bar can be set to the self-cleaning position to help reduce excessive net and twine on the rotor, or set to the manual clean position to help minimize the amount of net or twine mixed in the feed.

Vertical bale lift system

A vertical bale lift system makes it more efficient to load bales and reduce stress on the machine. Plus, the robust T-style tongue frame has no welds or gussets at high stress points and is bolted high on the tub.

Offset rotor

An offset rotor pulls material through for more consistent feeding and helps prevent uncontrolled fall-through from slowing down the machine. Process whole bales of varying shapes (with a powered sidewall kit) and qualities to produce uniform windrows, hit tight spots along the bunk line or spread evenly up to 50 ft (15.2 m) for bedding.
