Big Dog 26′

Description

BIG DOG REAR UNLOAD FORAGE BOXES

PL88C open barrel pintle chain @ 29,900# per strand = 119,600#, w/2″ x 1″ x 3/16″ formed apron channels for apron cross bars.
Barn Doors w/Air Closure (Truck Mount)
Top Pivot Door w/Hydraulic Gate Delay

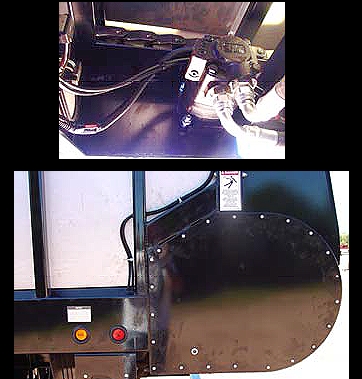

The “BIG DOG” features 1″ steel lines to the back of the box and DUAL HYDRAULIC MOTORS. The motors evenly drive each final drive system for more power and less shaft stress than a single motor system.
The drive shaft features MD nylon reversible style bearings.
16 Gauge Stainless Steel Sides.
Large 17″ x 28″ front window for viewing when unloading.
The idler apron shaft assembly features 6 tooth machined steel sprockets with bronze idler bushings.
Apron tension adjustment is made by tightening the 4 spring loaded tightener bolts on the front of the box. The spring loaded tighteners maintain tension on the apron during start up and operation.
Spring Loaded Main Apron Tighteners.
LED Lighting and Door Locks.
Available with an Optional Rollback or Side to Side Tarp.



ConditionNew
ModelBig Dog 26'
26′
CAPACITY - STRUCK LEVEL1477 cu. ft.
BOX WEIGHTN/A
INSIDE LENGTH26′
INSIDE WIDTH98″
INSIDE HEIGHT86″
OVERALL LENGTH27′ 7″
OVERALL WIDTH102″
OVERALL HEIGHT INCLUDING TAILGATEN/A
SIDE HEIGHTN/A
DRIVE SYSTEMDual Hydraulic Motors
FINAL DRIVE SYSTEMDual Final Drive w/ Oil Bath and Spring Loaded Tightener
MAIN APRON CHAIN & SLATSPL88C Open Barrel Pintle 2″ x 1″ x 3/16″ Formed Apron Channels
REAR DRIVE SHAFT2¼″ 1045 Steel
FRONT IDLER SHAFT1¾″ 1045 Steel
UPRIGHTS2″ x 2″ x 3/16″ Tubular Steel Set on 16″ Centers
UNLOAD TIMEDependent on Tractor Hydraulic System & GPMs
WALL MATERIALStainless Steel
FLOOR MATERIALVirgin Grade Poly
AIR GATE DELAY SYSTEMStandard
REAR DOOR LATCHINGAutomatic
FRONT WINDOW17″ x 28″
LIGHTSLED
CUSTOMER FARM NAMEStandard

Features

  • PL88C open barrel pintle chain @ 29,900# per strand = 119,600#, w/2″ x 1″ x 3/16″ formed apron channels for apron cross bars.
  • Barn Doors w/Air Closure (Truck Mount)
  • Top Pivot Door w/Hydraulic Gate Delay
  • The “BIG DOG” features 1″ steel lines to the back of the box and DUAL HYDRAULIC MOTORS. The motors evenly drive each final drive system for more power and less shaft stress than a single motor system.
  • The drive shaft features MD nylon reversible style bearings.
  • 16 Gauge Stainless Steel Sides.
  • Large 17″ x 28″ front window for viewing when unloading.
  • The idler apron shaft assembly features 6 tooth machined steel sprockets with bronze idler bushings.
  • Apron tension adjustment is made by tightening the 4 spring loaded tightener bolts on the front of the box. The spring loaded tighteners maintain tension on the apron during start up and operation.
  • Spring Loaded Main Apron Tighteners.
  • LED Lighting and Door Locks.
  • Available with an Optional Rollback or Side to Side Tarp.
