ATJ 60

Manitou ATJ 60

Description

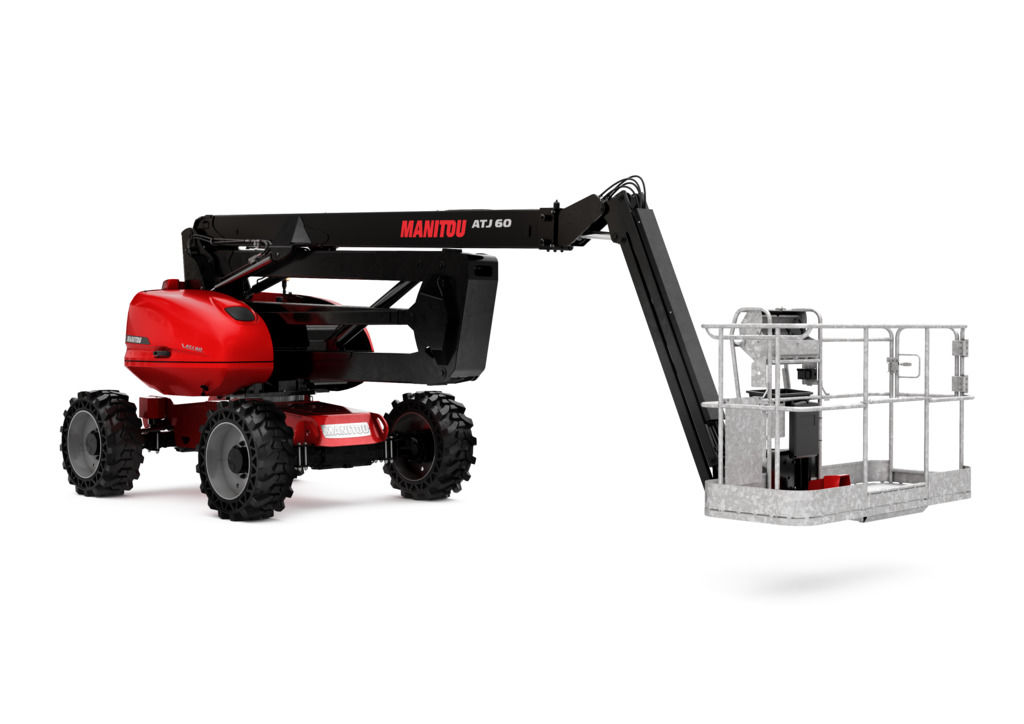

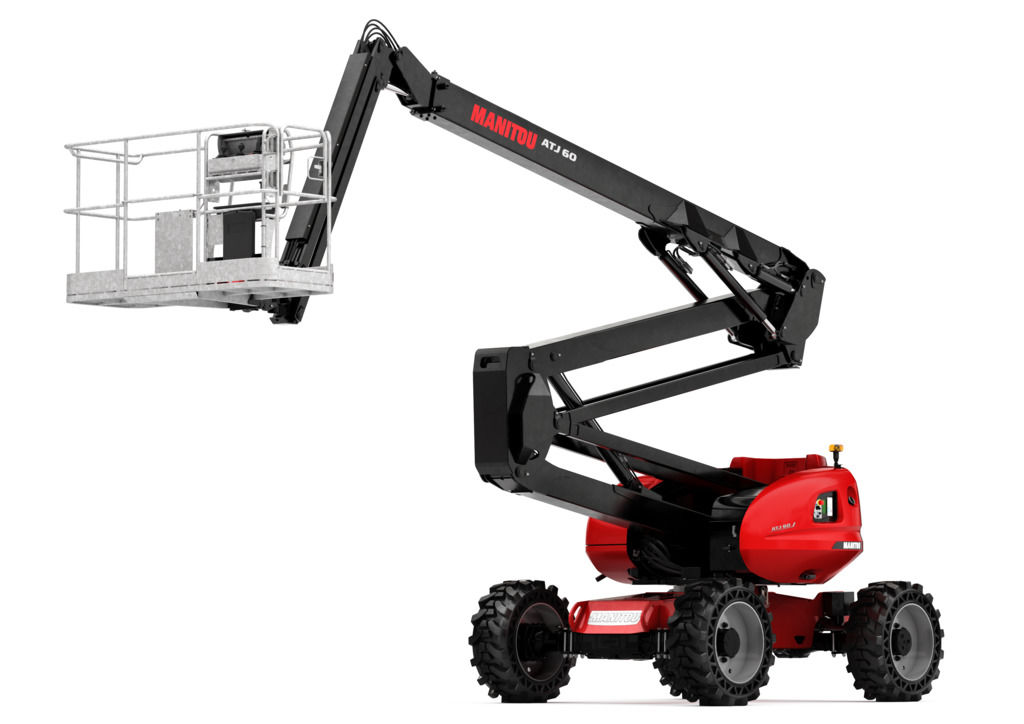

Looking for a compact, all-terain MEWP solution? Then the ATJ 60 is the solution for you! With its 18.3 meter max platform height, articulated arm and 360 degree continuous rotation, it allows you the ability to work in the most remote and difficult to access areas. To ensure safety, the ATJ 60 has a smooth double basket, an operator presence pedal and a negative braking system. The design of the chassis is well-suited for off-road use, whatever the ground conditions, making the ATJ 60 an ideal aerial lift for all your outdoor work.

Compare Models

Two models to choose from. Click any model below to see full specs.

Manitou ATJ 60 | 66’3″ Working Height | Diesel, 4WD

Model	Manitou ATJ 60
Working Height	66’3″
Max Outreach	39’3″
Platform Capacity	500 lb
Number of Operators	2
Engine	Kubota D1803-CR-TIE4B, Tier 4, 42.9 hp
Platform Weight	22,267 lb
External Turning Radius	12’10”
Drive System	4-wheel drive, 360° continuous turret rotation

Manitou ATJ 60 e 4WS CR | 65’7″ Working Height | 100% Electric

Model	Manitou ATJ 60 e 4WS CR
Working Height	65’7″
Max Outreach	38′
Platform Capacity	551 lb
Number of Operators	2
Power Source	100% electric, zero emissions
Platform Weight	16,601 lb
External Turning Radius	12’5″
Drive System	4-wheel steer, 360° continuous rotation

Condition	New
Model	ATJ 60

Features

Lift Performance

360° Continuous Turret Rotation Full rotation lets operators reposition the platform around obstacles without repositioning the machine.

Articulated Boom Design The articulating arm reaches over and around structures for access in tight or congested work areas.

Chassis & Mobility

All-Terrain Chassis A rugged chassis design handles rough or uneven ground conditions across outdoor jobsites.

Compact Turning Radius A 12’10” external turning radius helps the ATJ 60 maneuver through tight yards and congested sites.

Operator Safety

Smooth Double-Entry Basket A double basket entry design gives operators safe, easy access to the platform from either side.

Operator Presence Pedal A dedicated presence pedal confirms the operator is in position before platform functions engage.

Negative Braking System A negative braking system holds the platform securely in place at height for added confidence.

Engine & Efficiency

Kubota Tier 4 Diesel Engine A Kubota D1803-CR-TIE4B engine delivers 42.9 hp for reliable power on the jobsite.

Incremental Hydraulic Management A hydraulic system automatically adjusts engine speed to reduce noise levels and fuel consumption.

Comfort & Controls

Ergonomic Console An ergonomic control console speeds up handling and keeps operators comfortable through long shifts.
