ATJ 46+

Description

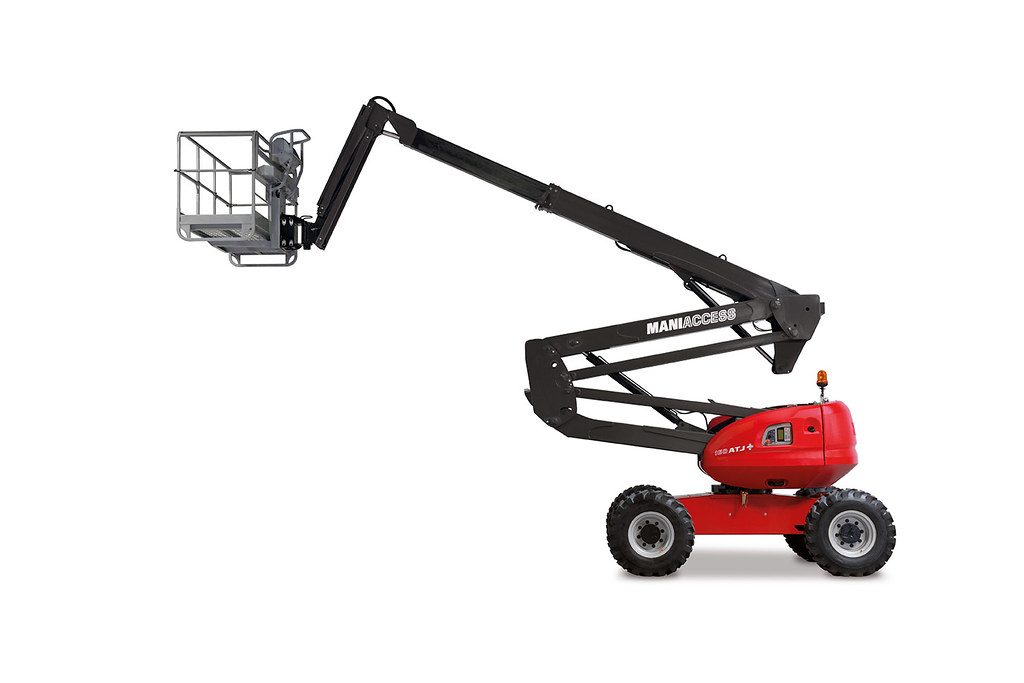

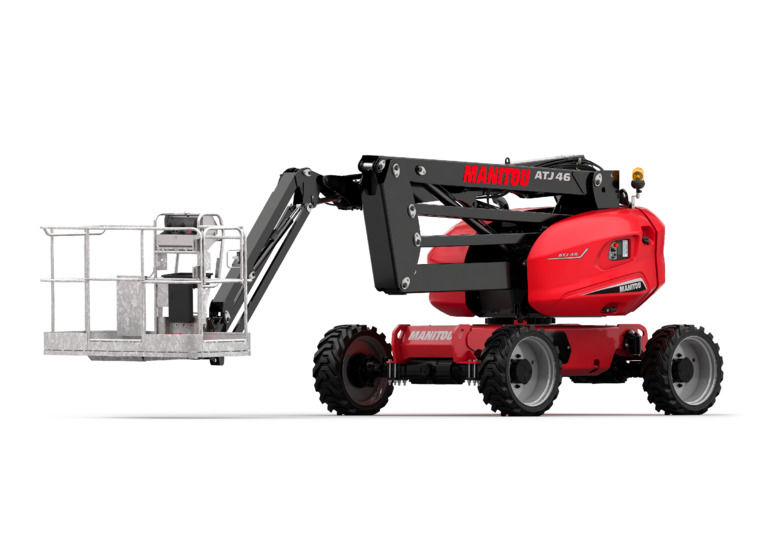

Enjoy the handling performance of the ATJ 46+ high capacity aerial workplatform. Thanks to its compact structure, all-terrain design and high ground clearance, this MEWP has excellent performance on uneven surfaces with the ability to work in cramped, difficult to access areas. The extra capacity in the workplatform of the ATJ 46+ is designed to fit 3 operators. Increased operator comfort is provided by the large spacious workplatform, ergonomic driving position and excellent visibility of the loads and the jobsite environment. Make smoother movements and increase productivity with the ATJ 46+ articulated aerial workplatform!

ConditionNew
Lifting height46'2"
Lifting capacity900 lb
Lifting capacity (no. of people)3
Exterior lifting capacity (no. of people)3
Max reach28'4"
Overhang22'5"
Moving speed3.1 mph
Working speed0.62 mph
Overall length22'10"
Overall length (folded)16'2"
Wheelbase length7'4"
Width7'8"
Height7'11"
Overall height (folded)8'1"
Weight (unladen)18047 lb
Turning radius12'1"
Ground clearance1'6"
EnergyDiesel
Engine brandKubota
Engine typeTier IV Final
Engine manufacturer typeD1803-CR
Power32.8 KW
Pressure340 bars
Hydraulic oil tank volume14.27 gal
Number of wheels (front/rear)2/2
Number of drive wheels (front/rear)2/2
Number of steering wheels (front/rear)2/2
Number of braking wheels (front/rear)0/2
Tyre dimensions (rear)18"

Features

  • Rotating beacon light
  • Electric predisposition on boom
  • Fuel gauge with low level indicator
  • Integrated diagnostic assistance
  • Front axle with limited slip
  • Proportional controls
  • Audible alarm and illuminated indicator lamp (leveling, overload, lowering)
  • Active oscillating front axle
  • Emergency stop button in platform and on frame
  • Protective cover for control panel
  • CAN bus technology
  • Differential locking on rear axle
  • 4 wheel steer with crab mode
  • 4 simultaneous movements
  • Dead man pedal
  • Continuous turret rotation
  • Battery cut off
  • Horn in the platform
  • Pendular arm
  • 4 wheel drive
