Blu-Jet AT3015

Call Now Get A Quote Schedule A Visit Value Your Trade Apply for Financing

Description

All Terrain JetStream Injection Toolbars

The BLU-JET AT3015 integrates many of the features, such as high flotation tires and bottom fill plumbing, found on BLU-JET Commercial Class Application Equipment, while offering a more cost efficient tank and chassis option. This mixture has made AT3015 one of the best sellers on the market.

Field Proven Durability

The AT3015 integrates BLU-JET Commercial Class Application Features into a durable, cost effective, implement for those looking to side dress at 30’ and 40’ widths. With design elements including an integrated tongue and hitch, a 1,025 elliptical tank mounted perpendicularly to reduce sloshing, high flotation tires, bottom fill plumbing, and BLU-JET Liquid Injection Row Units; the AT3015 continues to be one of the longest running, and best selling, liquid applicators on the market today.

These standard features, combined with the options of mechanical or variable rate pump drives and gull wing toolbar lift, have made the AT3015 an easy choice for those who have years of experience in liquid application, and those who are new to the practice.

Condition New
Model AT3015

Specifications

Model AT3015
Condition New
Tank Capacity 1,025 gal, elliptical, perpendicular mount
Toolbar Widths 27.5 ft to 42.5 ft (30", 22", or 20" spacing)
Bottom-Fill Plumbing 2 in
Axle Hubs 8-bolt
Tires 320/85x38 single radial
Pump System Positive contact ground-drive, NGP-7055 single piston, 34.2 GPM max flow
Coulter System Super 1200, 20 in smooth blades, 1,200 lbs down pressure, 30° swivel
Injection System Standard JetStream liquid injection
Hitch CAT 4 single tang and clevis
Transport Width 13 ft, 4 in (13 ft, 1 in with narrow transport package)

Features

Rugged Toolbar and Mounting

7″ x 7″ tubing on the toolbar delivers added strength, with ±7° wing flex to follow ground contours for consistent application depth across uneven terrain.

Dual 3 x 8 Lift Cylinders with Depth Setting Spacers

Dual 3-inch bore by 8-inch stroke lift cylinders raise and lower the toolbar in the field, with depth setting spacers that lock in a consistent, repeatable working depth pass after pass.

3 x 20 Wing Fold Cylinders

3-inch bore by 20-inch stroke cylinders fold the wings for transport, helping the AT3015 move efficiently between fields while keeping the toolbar compact and secure on the road.

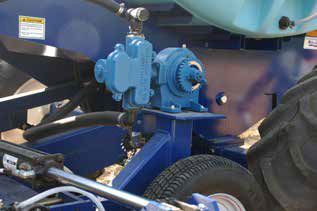

Positive Contact Drive Mount

A positive contact ground-drive pump system, powered by the NGP-7055 single piston pump, delivers up to 34.2 gallons per minute of dependable, ground-speed-matched flow.

Bottom-Fill Plumbing

2-inch bottom-fill plumbing speeds up tank filling and keeps the fill process simple and mess-free at the field edge.
