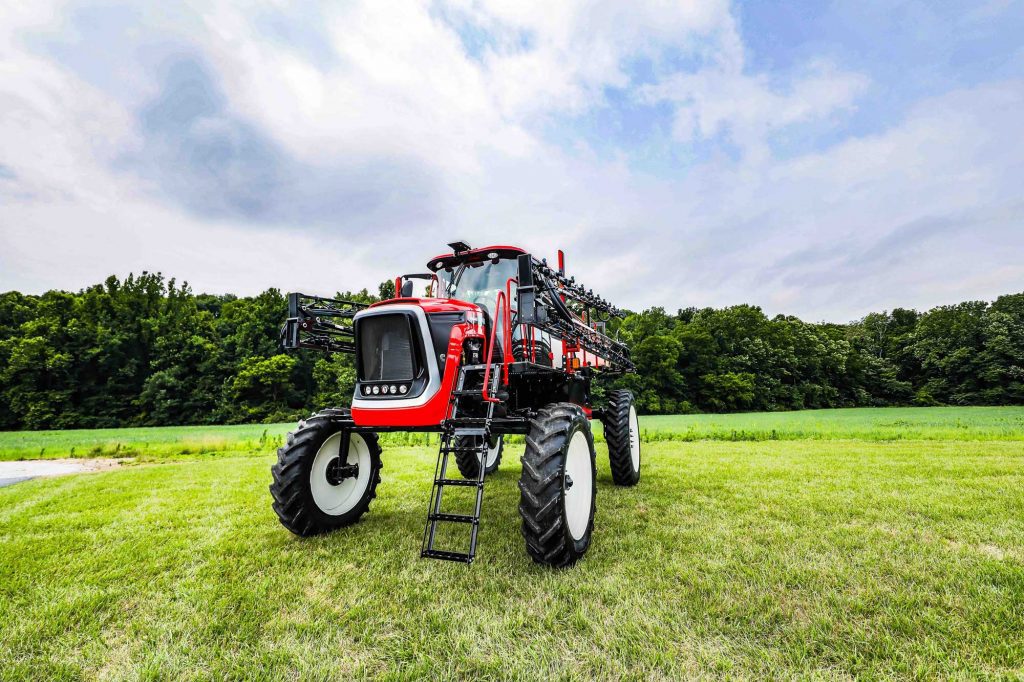

AS650

Description

The AS650 is compact, lightweight and agile — and the most affordable self-propelled sprayer in the industry. Built for the farmer who wants to upgrade from a pull-behind to a self-propelled or for the larger producer that needs an agile extra sprayer. Whether it’s the first, second or third sprayer in the operation, spray applications will be brought to the next level of precision with the AS650.

The lightest self-propelled sprayer made at just 16,900 pounds, features include a 4-speed JCB power shifting transmission, a powerful 163 hp Cummins QSB 4.5 Tier 4 final engine and a narrow 90- or 120-inch, front axle design.

Better fuel economy, reduced compaction and a lower price, the AS650 is everything that is great about Apache, but in a smaller package. Find out why the AS650 is right for you.



ConditionNew
ModelAS650
TANK CAPACITY650 gal
APPROXIMATE DRY WEIGHT16,900 lbs
AXLE WIDTH88″, 90″, 108″, 114″ or 120″ fixed
TRANSPORT WIDTH & HEIGHT144″ maximum
OVERALL LENGTH290″ maximum
TURNING RADIUS17’2″
WHEEL BASE13’8″
FRONT TIRES (STANDARD)Michelin 380/85R34
REAR TIRES (STANDARD)Michelin 380/80R38
CROP CLEARANCE42″ or 48″ based on tire selection with JCB final drives
BOOMSET Custom Boom (Steel) Straight 90′ or 60’/90′Pommier (Aluminum) Straight 100′
RINSE TANK50 gal
RATED HORSEPOWER163 hp
DRIVELINE EFFICIENCY90%
PTG: HP PER 1,000 lbs.8.7
FUEL TANK CAPACITY80 gal
SUSPENSIONActive airbag with independent front
TOP ROAD SPEED32 mph
TRANSMISSIONJCB transmission Powershift, 4-speed
ENGINECummins Tier 4F 163 hp (rated)

Features

AS650 Product Enhancements

FRONT ENTRY TO CAB
New front entry, same legendary Apache view. Our engineering team preserved the visibility of the front axle, angling the grates, and performed test after test to ensure the view was not compromised.

OPERATION CONVENIENCE
To improve productivity and convenience, operators can now perform rinse, agitate, and other fill-station functions right from the cab (with the 3″ fill option). We’ve also simplified our fuel and hydraulic tanks for ease of fill.

FRONT AXLE
More durable than ever. All AS Series Sprayers feature an improved front axle, making for uniform steering and better suspension with new struts boasting 8x better performance.

IR LED BACKUP CAMERA
The Voyager VCMS20B high-resolution color IR LED camera boasts a 145 degree wide viewing angle that provides coverage and an improved depth of field
