9300 Series

Description

A Cut Above
Lead the way with our Razorbar

You need your disc header to cut crop cleanly and effectively, then condition it before depositing it in a consistent swath. Our Hesston by Massey Ferguson 9300 Razorbar disc headers do just that, offering industry leading performance to maximize the value of your hay.

ConditionNew
Model9300 Series
ModelHeader Width ft (m)ConditionersSwath Width in (m)Number of DiscsRoll Tension
9313S13 (4)240 - 96 (1 - 2.4)8Hydraulic
9313D Twin Max13 (4)440 - 96 (1 - 2.4)8Hydraulic
9316S16 (4.9)240 - 96 (1 - 2.4)10Hydraulic
9316D Twin Max16 (4.9)440 - 96 (1 - 2.4)10Hydraulic


Features

DUAL DRIVE HYDRAULIC MOTORS
Provide increased-but-balanced power to the cutterbar and conditioner drives on both sides.

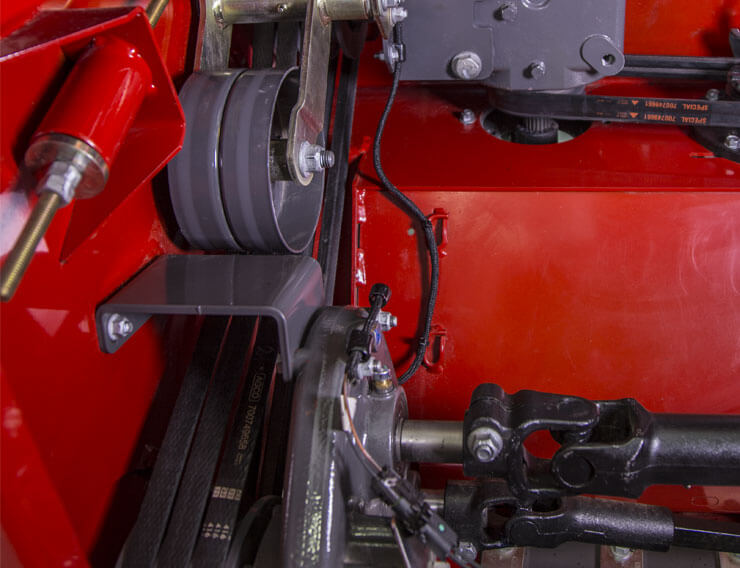

ROBUST BELT DRIVES
Self-adjusting spring-tensioned belt drives with easy access covers to allow maintenance.

QUICK ROLL GAP CHANGE
Shims easily allow 1/8 inch adjustments to be made without changing stop nut location on the 9316 S/D headers.

MINIMIZED SERVICE POINTS
High-quality bearings and greaseless composite bushings on the 9316 S/D headers.

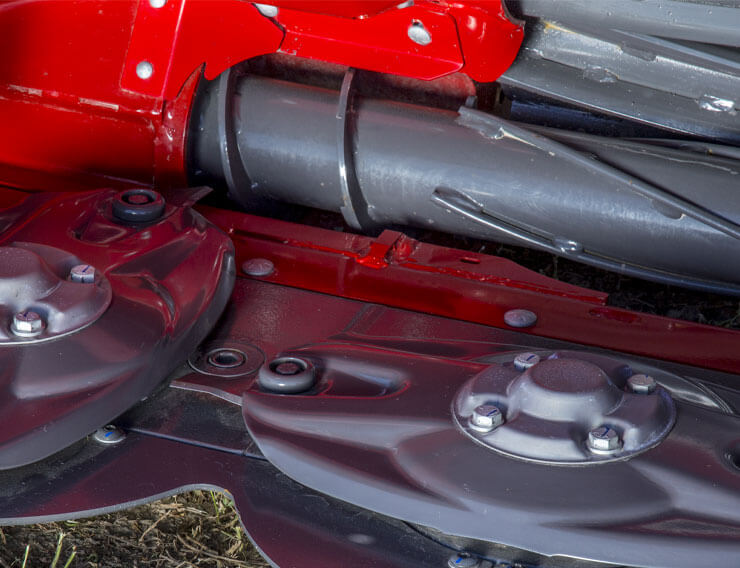

CONSISTENT CROP FLOW
The 9316 S/D headers use stub augers in the crop flow path to provide smooth and easy feeding, improving windrow formation and increasing drydown.

EFFECTIVE CONDITIONING
Dependable hydraulic tensioned steel-on-steel herringbone conditioner rolls provide superb conditioning to crop stems while minimizing leaf bruising and loss.

PERFECTED FEEDING
Superior cage design enhances feeding from outer discs to conditioners.
