Gleaner 9300 Series DynaFlex

Description

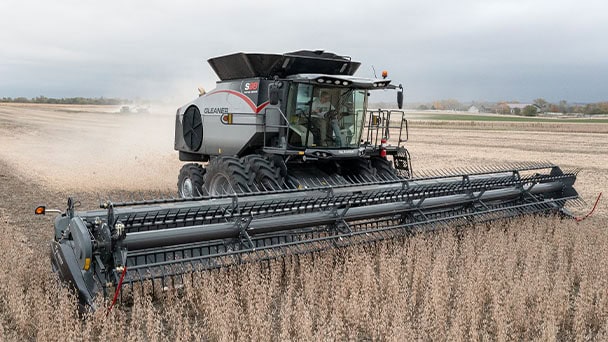

The Gleaner 9300 Series DynaFlex draper heads combine field performance with increased reliability and durability to maximize harvest uptime and efficiency. Available in four cutting widths — the 9325, 9330, 9335, and 9340, spanning 25 to 40 feet — the lineup features a completely redesigned variable-speed gathering belt drive running 384 to 602 ft/min, plus a fixed-speed draper option at 557 ft/min. Independent, dampened tilt arms every 30 inches and separate side accumulators deliver a full 8 inches of cutter bar float with cab-adjustable flotation pressure, while redesigned skid shoes and lightweight divider and end-shield construction keep the head running low and light across the field. Two cutting height options — rigid high-cut and flex low-cut — let one head handle standing grain, down crop, and variable terrain across the season. Parallel Ag’s parts and service team stands behind every 9300 Series DynaFlex head with genuine AGCO parts and pre-season setup support.

Compare Models

Four models to choose from. Click any model below to see full specs.

9325 | 25 ft. | 8 in. Float

Model	9325
Cutting Width	25 ft. (7.6 m)
Cutter Bar Options	High Capacity or SCH
Cutter Bar Drive	Dual mechanical system
Cutter Bar Float	8 in. (203.2 mm)
Cutting Height Options	Rigid high-cut or flex low-cut
Variable Speed Draper	384-602 ft/min (117-183 m/min)
Fixed Speed Draper	557 ft/min (169.77 m/min)
Transport Wheels	Optional

9330 | 30 ft. | 8 in. Float

Model	9330
Cutting Width	30 ft. (9.1 m)
Cutter Bar Options	High Capacity or SCH
Cutter Bar Drive	Dual mechanical system
Cutter Bar Float	8 in. (203.2 mm)
Cutting Height Options	Rigid high-cut or flex low-cut
Variable Speed Draper	384-602 ft/min (117-183 m/min)
Fixed Speed Draper	557 ft/min (169.77 m/min)
Transport Wheels	Optional

9335 | 35 ft. | 8 in. Float

Model	9335
Cutting Width	35 ft. (10.7 m)
Cutter Bar Options	High Capacity or SCH
Cutter Bar Drive	Dual mechanical system
Cutter Bar Float	8 in. (203.2 mm)
Cutting Height Options	Rigid high-cut or flex low-cut
Variable Speed Draper	384-602 ft/min (117-183 m/min)
Fixed Speed Draper	557 ft/min (169.77 m/min)
Transport Wheels	Optional

9340 | 40 ft. | 8 in. Float

Model	9340
Cutting Width	40 ft. (12.1 m)
Cutter Bar Options	High Capacity or SCH
Cutter Bar Drive	Dual mechanical system
Cutter Bar Float	8 in. (203.2 mm)
Cutting Height Options	Rigid high-cut or flex low-cut
Variable Speed Draper	384-602 ft/min (117-183 m/min)
Fixed Speed Draper	557 ft/min (169.77 m/min)
Transport Wheels	Optional

Condition

New

Features

Built to Maximize Harvest Uptime

Performance, Reliability & Durability in One Head
The 9300 Series DynaFlex draper heads combine field performance with increased reliability and durability to maximize your harvest uptime and efficiency.

Four Cutting Widths From 25 to 40 Feet
Choose the 9325, 9330, 9335, or 9340 to match your combine’s capacity and the acres you need to cover each day.

Two Cutting Heights for Every Crop
Rigid high-cut or flex low-cut cutting height options let you optimize grain harvest across variable field terrain and different crop types.

Optional Transport Wheels
Optional transport wheels make moving the head between fields faster and easier without a separate trailer.

Redesigned Gathering Belt Drive

Completely Redesigned Variable-Speed Drive
A completely redesigned, variable-speed gathering belt drive lets operators dial in belt velocity for whatever field condition they’re running through.

384 to 602 Ft/Min Variable Speed Draper
The variable-speed draper runs from 384 up to 602 ft/min, giving you the range to match feeding speed to crop type and volume.

557 Ft/Min Fixed Speed Draper Option
A fixed-speed draper option running at 557 ft/min is available for operations that prefer a simpler, consistent setup.

Improved Feeding Into the Combine
The redesigned belt drive is engineered specifically to improve how material feeds into the combine, reducing losses at the header.

Improved Flexibility & Ground Following

8 Inches of Cutter Bar Float
A full 8 inches (203.2 mm) of cutter bar float lets the head follow uneven ground closely across all four cutting widths.

Independent Dampened Tilt Arms Every 30 Inches
Independent, dampened tilt arms positioned every 30 inches give the cutter bar a responsive, even flex range across the full width of the head.

Separate Accumulators, Cab-Adjustable Flotation
Separate accumulators on each side absorb ground movement and boost response, with flotation pressure adjustable right from the cab.

High Capacity or SCH Cutter Bar Options
Choose the cutter bar that matches your conditions — High Capacity or SCH — on any of the four cutting widths.

Built-In Durability

Redesigned Skid Shoes
Redesigned skid shoes reduce wear while maintaining a low cutting height, extending the life of wear components across a full season.

Lightweight Divider & End Shield Construction
Lightweight dividers and end shields minimize weight resting on the skids, helping prevent the head from plowing into the soil.

Dual Mechanical Cutter Bar Drive
A dual mechanical cutter bar drive delivers consistent, reliable cutting performance across the full width of the head, season after season.

Engineered for Reliability
Every component of the 9300 Series is engineered to keep the head running through long harvest days with minimal downtime.

Matched to Your Combine

Built for Gleaner Combines
The 9300 Series DynaFlex is engineered to pair with Gleaner combines for a matched, factory-integrated harvesting solution.

Consistent Feeding Across Widths
From the 25-ft 9325 up to the 40-ft 9340, feeding performance stays consistent so operators get the same experience regardless of head size.

Simple, Season-Ready Setup
Straightforward controls for flotation and draper speed mean less time adjusting and more time harvesting once you’re in the field.

Proven Platform, Continually Refined
The DynaFlex platform has been refined generation over generation, carrying forward what works while improving feeding, flotation, and durability.

Versatility Across Crops & Terrain

Rigid High-Cut for Standing Grain
The rigid high-cut setting is suited to standing small grains where flex isn’t needed, keeping the cutter bar steady and consistent.

Flex Low-Cut for Down or Uneven Crop
The flex low-cut setting follows ground contours closely, helping recover down or lodged crop and uneven terrain.

Adaptable to Variable Field Conditions
Switching between cutting heights and draper speeds lets one head handle a wide range of field and crop conditions across the season.

Four Widths to Match Any Acreage
Whether you’re running smaller fields or wide-open ground, a 25 to 40-foot cutting width is available to fit the job.

Parts & Service Support

Backed by Parallel Ag’s Parts & Service Team
Parallel Ag’s expert parts and service team is here to keep your 9300 Series DynaFlex head running at peak performance — with knowledgeable staff across all our locations ready to support you throughout harvest.

Genuine AGCO Parts
AGCO replacement parts are made to the same high standards as those used on the assembly line. Talk to your local Parallel Ag parts team to get the genuine parts you need, fast.

Pre-Season Setup & Support
Parallel Ag’s team can help you get your DynaFlex head set up, adjusted, and ready before the first day of harvest.

Financing Available
Talk to Parallel Ag about financing options to get your new DynaFlex head working for you this harvest.
