The 900T Pull-Type has a maximum payload of 24,000 lbs (10,886 kg), struck capacity of 731 ft³ (20.7 m³) or 841 ft³ (23.8 m³) with tub extension, and requires 130 horse power (97 kW).

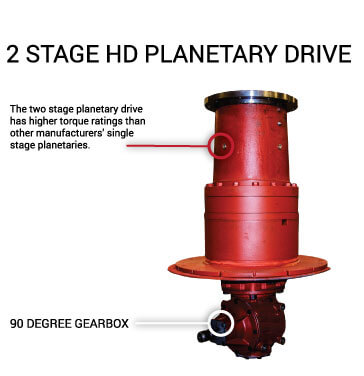

Unlike most other vertical mixers that use smaller single stage planetary drives, Supreme uses the heaviest two-stage planetary drive available. Combined with a heavy duty gearbox, this robust system rotates the auger through the toughest of materials. This simple design features few moving parts with no chains, sprockets or countershafts to worry about. Each Supreme pull type is built to order with a large variety of options available, ensuring each customer gets a unit that is designed to meet their specific needs.

The 900T is also available as a truck mount and a stationary mixer.

Minimum Power Requirements:130 hp / 97 kW
Unit Capacity:
Struck Capacity: 731 ft³ / 20.7 m³, Capacity with Extension: 841 ft³ / 23.8 m³
Tires:(4) 11R/22.5in 16 Ply Truck Tires With Budd Wheels & HD Axle
Empty Weight:16,259 lbs / 7,375 kg
Max Payload:24,000 lbs / 10,886 kg

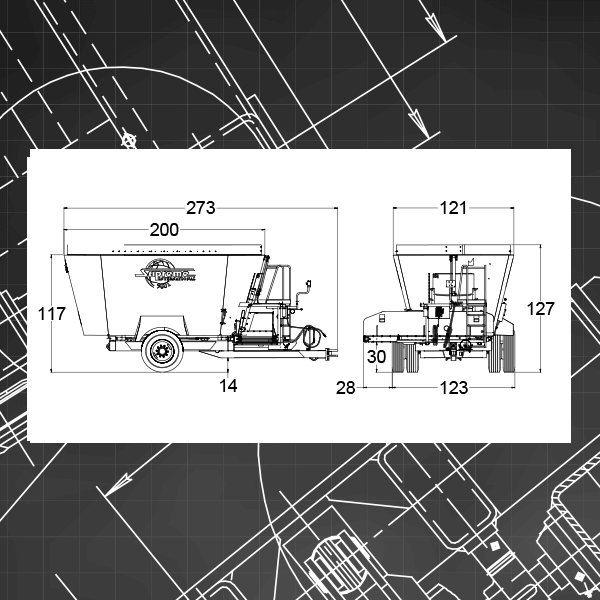

Dimensions:Height: 117" / 297 cm, Height w/ 10" Extension: 127" / 323 cm, Overall Width: 123" / 312 cm, Overall Length : 273" / 693 cm
Drive / rpm PTO:(2) Heavy-Duty, Two-Stage Planetary Drives / 540 or 1000 rpm PTO
Standard Discharge Ground Clearance:Flat: 30" / 76 cm, Dogleg: 44" / 112 cm, Ext. Dogleg: 55" / 140 cm, 42" Folding: 53" / 135 cm, 54" Folding: 60" / 152 cm
Number of Knives:(10) Replaceable Forage Cutting Blades
Conveyor:Front Center Door With 10’ Flat Conveyor
Floor Thickness:3/4’’ / 19 mm M/S Floor
Wall Thickness:1/4” / 6 mm AR200 Walls
Standards Specifications:SS Auger Outer Edge, Two Patented Freestanding Vertical Cutting Augers, Manual Restrictor Plates, Heavy-Duty Tubular Steel Frame, 5/8” / 16 mm AR200 Auger Flighting, Ultra Wear Kicker Plates, Removable Heavy Duty Hitch Jack, 4 pt Scale System, 12 Volt Battery, Independent Steel Oil Reservoirs, SS Conveyor Top Pan
Horse Power Required:130
Maximum Payload (lbs):24000
