8700S Series Row Crop Tractors

Description

ONE TRULY POWERFUL WORKHORSE.

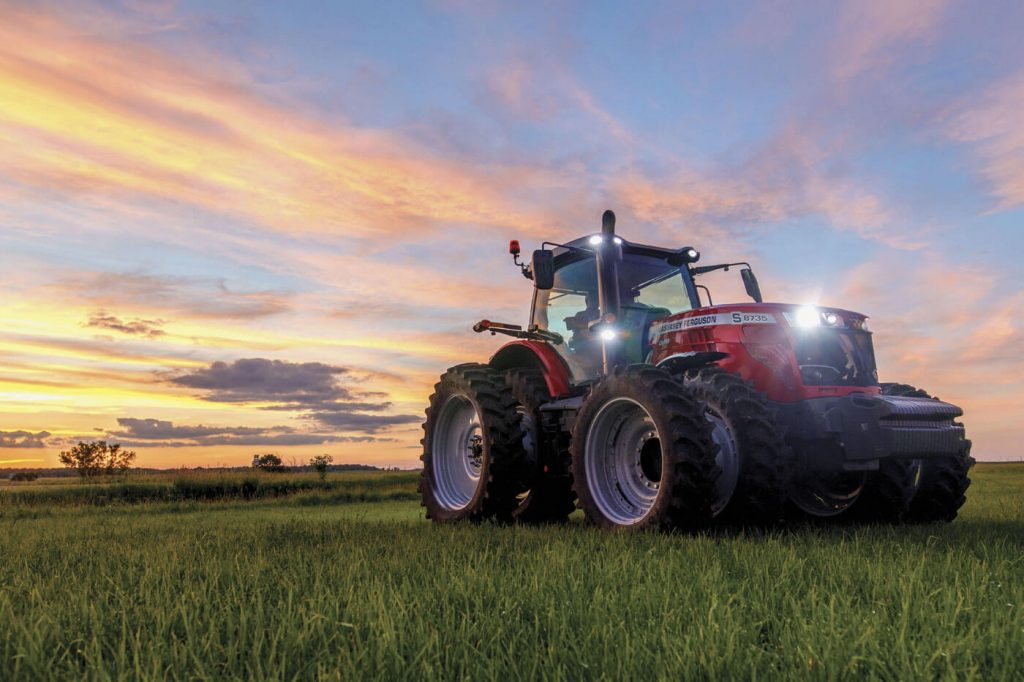

MF 8700 S Series Row Crop Tractors

We’ve put over a century and a half of farming innovation into each tractor we make, and we’ve engineered the Massey Ferguson® 8700 S Series to provide the performance and versatility to tackle any job you throw at it. Whether it’s row crop or dairy operations, planting, mowing or hauling, the MF 8700 S Series won’t quit until you do.

If you need to get the job done right, this is your tractor.

BIG POWER FOR BIG OUTPUT
With up to 405 HP, these are the most powerful tractors ever built by Massey Ferguson, delivering ultimate output with low running costs.

AN EFFICIENT DRIVETRAIN
The Dyna-VT transmission with Engine Power Management delivers more power when it’s needed most. Combining it with the AGCO Power™ engine gives you efficient power for maximum output.

A BETTER FOOTPRINT FOR YOUR SOIL
An 84-inch rear wheel diameter enhances traction, reduces soil compaction and maximizes performance. The Michelin AxioBib 2 tire option puts more lugs in contact with the soil, creating “mini tracks” that lengthen the footprint by 26%, distribute the weight more effectively and improve traction by up to 28%.

TECHNOLOGY AT YOUR FINGERTIPS

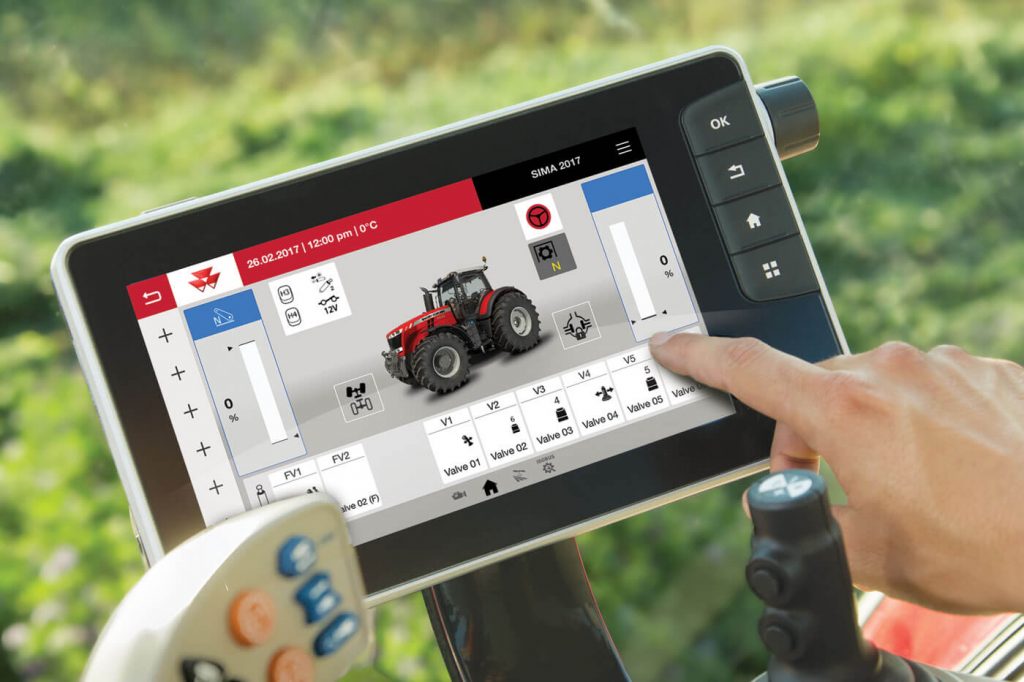

The MF Datatronic 5 touchscreen terminal is intuitive but advanced. The MF Guide feature gives you absolute precision from a wide choice of correction signals. The MF ISOBUS feature with multi pad is comfortable to use and gives you maximum efficiency.

ULTIMATE COMFORT AND SAFETY
A large, quiet four-post cab offers 360-degree visibility.



ConditionNew
Model8700S Series Row Crop Tractors

8727 S

Emissions LevelTier 4 Final
Max HP270
Rated HP @ 2200 rpm240
PTO HP205
TransmissionDyna-VT (CVT)
Rear Lift Capacity @ link ends (lbs)26,455
Weight (lbs)23,810

8730 S

Emissions LevelTier 4 Final
Max HP300
Rated HP @ 2200 rpm265
PTO HP225
TransmissionDyna-VT (CVT)
Rear Lift Capacity @ link ends (lbs)26,455
Weight (lbs)23,810

8732 S

Emissions LevelTier 4 Final
Max HP320
Rated HP @ 2200 rpm290
PTO HP250
TransmissionDyna-VT (CVT)
Rear Lift Capacity @ link ends (lbs)26,455
Weight (lbs)23,810

8735 S

Emissions LevelTier 4 Final
Max HP350
Rated HP @ 2200 rpm320
PTO HP275
TransmissionDyna-VT (CVT)
Rear Lift Capacity @ link ends (lbs)26,455
Weight (lbs)23,810

8737 S

Emissions LevelTier 4 Final
Max HP370
Rated HP @ 2200 rpm340
PTO HP290
TransmissionDyna-VT (CVT)
Rear Lift Capacity @ link ends (lbs)26,455
Weight (lbs)23,810

Features

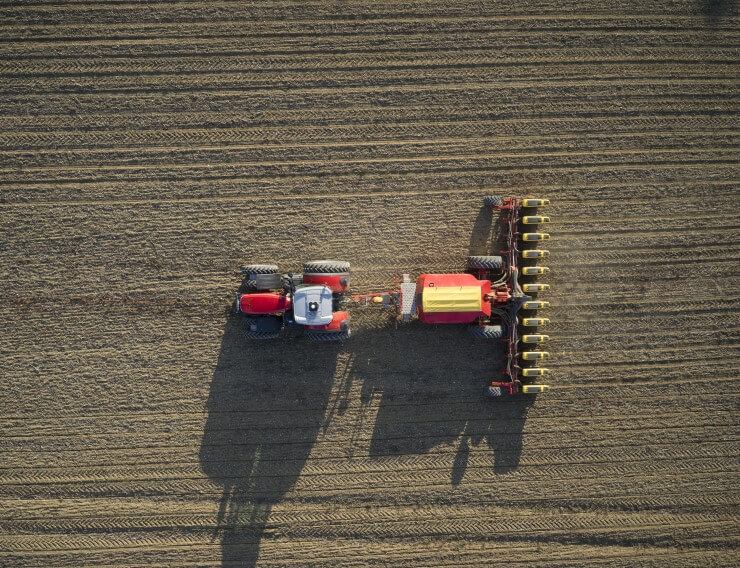

STEPLESS PRECISION
The Dyna-VT transmission offers stepless travel from 0.02 to 30 mph at any engine speed, operated via two speed ranges.

CRUISE CONTROL
The MF 8700 S Series is fitted with an engine speed “Supervisor” that automatically reduces forward speed to maintain full engine power by maintaining engine speed, whatever the job at hand.

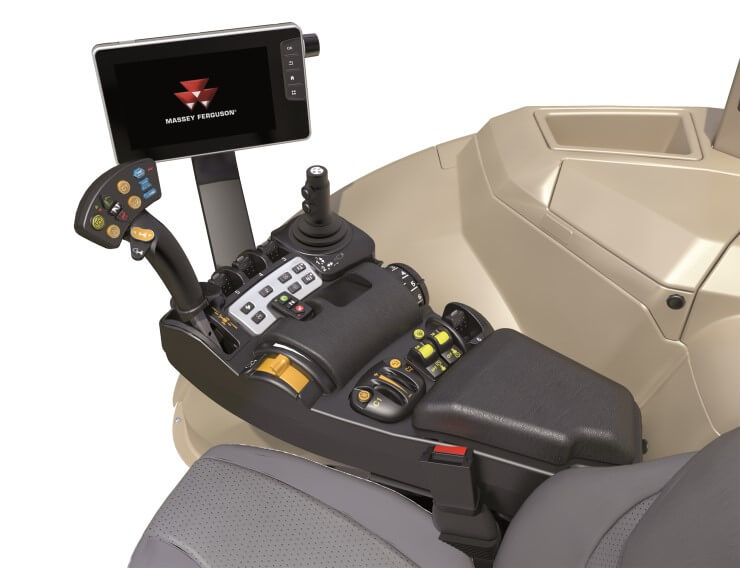

MULTIPAD JOYSTICK – MF 8700 S EXCLUSIVE MODELS
The Command Control armrest, and the Multipad joystick, are part of the package that makes these tractors, despite their power, so easy to control with precision. A multitude of functions can be controlled in the palm of your hand.

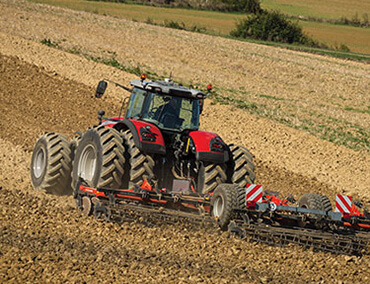

MINIMUM WEIGHT OF 10.8 T
With a minimum weight of just 10.8 tons, the MF 8700 S Series tractors are up to 4 tons lighter than others in this class. This allows them to tread lightly for top work and transport.

ENGINE POWER MANAGEMENT – 30 HP BOOST
These tractors have the considerable benefit of Engine Power Management (EPM), which gives the capability of up to a 30 HP-plus power boost, plus extra torque, whenever you need a bit extra.

8.4 LITRE AGCO POWER 6 CYLINDER ENGINE
These engines generate power from 270 to 405 hp.

ALL-IN-ONE STAGE V ENGINES
These comply with strict Stage V emission regulations using Massey Ferguson’s award-winning “All-in-One” system, which now includes a straightforward soot catalyst.

DYNA-VT
With the continuously variable Dyna-VT transmission, Massey Ferguson engineers have developed a system of power transfer that sets a new benchmark for ease of use and precision.

DYNAMIC TRACTOR MANAGEMENT
For control and comfort Dynamic Tractor Management (DTM) works with Dyna-VT and automatically controls engine and transmission when activated. DTM handles engine speed to maintain forward speed and minimize engine revs without losing power.

EFFICIENT PACKAGE AS STANDARD
Efficient is the entry-level package for the MF 8700 S Series, but you will notice that it is anything but basic. It provides all the key elements, with all key functions ergonomically grouped in the Control Command Center armrest.

PANORAMA CAB
Best-in-class features in the “Panorama” cab offer the highest levels of comfort, quiet, visibility, space, access and technology.

EXCLUSIVE CAB
This level, with its more advanced features, aims to cater for more intensive, larger-scale operations seeking cost-effective benefits for the business.

AIR-SUSPENDED OPERATOR SEAT
Optional cab suspension damping can be included. Paired with a premium-class air-suspended operator’s seat, the result is one of the most comfortable rides around.

NEW DASHBOARD WITH SIS
The slim dashboard design provides for quick, clear and easy analysis of operating data, presented on the easy-to-read color Setup and Information Screen (SIS).

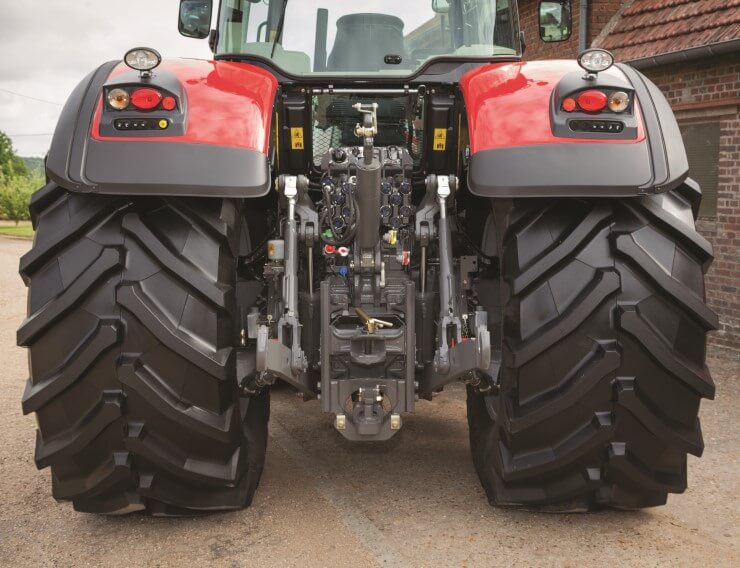

REAR HITCHES
The rear hitch with a choice of pintle pin, pick-up hitch, clevis, K80 ball or drawbar has been completely redesigned to make coupling quicker, easier and safer.

BRAKING SYSTEM
Reassuring, fade-free braking comes courtesy of oil-immersed, power-assisted disc brakes, while air brakes for trailed equipment are an option.

PTO SPEED CONTROL
With the benefit of a constant power band of up to 600 rpm and the ability, with Dyna-VT, to precisely select any ground speed at the chosen engine speed, you can always achieve a perfect match of PTO speed for optimum economy.

ELECTRONIC LINKAGE CONTROL – ELC
The industry-leading ELC comes standard. The system provides precise and responsive control of linkage functions, ensuring accurate management of working depth for soil engaging implements and working height for other implements.

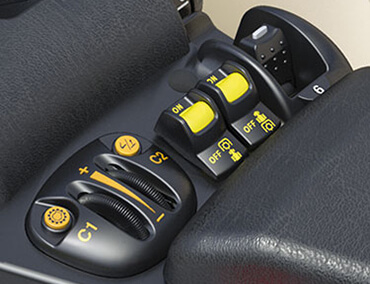

PTO SPEED OPTIONS
MF 8700 S tractors can be specified with a fully independent 540 Eco/1,000 RPM PTO, or 1,000/1,000 Eco speeds. External engagement and emergency stop buttons provide convenience and safety.

UP TO EIGHT ELECTROHYDRAULIC SPOOL VALVES
Four electrohydraulic spool valves come standard, with up to eight available if required.

FULLY INTEGRATED 11,000-POUND FRONT LINKAGE
At the front, buyers can specify a fully-integrated 11,000-pound front linkage designed to match the Massey Ferguson front suspension, with two double-acting spool valves and a free return line.

TIRE OPTIONS
The latest tire equipment allows MF 8700 S models to work at low pressures, even on high traction jobs. Choose dual rear wheels with tire size of up to 35 in. and 98 in. diameter for better power transfer to the ground.

BALLASTS
Available from factory or via AGCO Parts with additional front, rear and tyre weights to exactly match your needs.

FINGERTIP SPOOL VALVE MANAGEMENT SYSTEM
The Fingertip Spool Valve Management System enables complex equipment to be controlled with ease and precision.

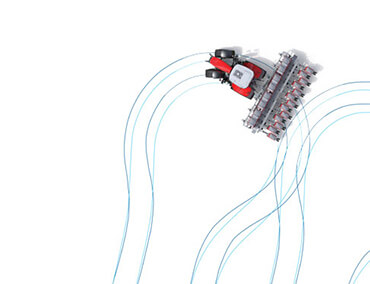

SPEED STEER
The optional Speed Steer feature allows sharp turns to be achieved with far fewer rotations of the steering wheel, so you can make headland or turnrow turns quicker and easier.

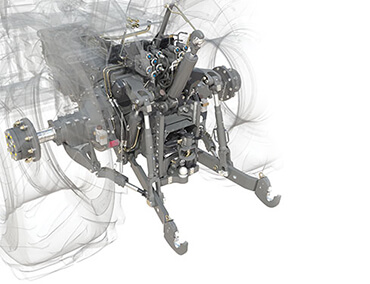

26,000-POUND REAR LINKAGE CAPACITY
With a rear linkage lift capacity of 26,000 pounds, there are few tractors in this class that can match the MF 8700 S Series for the ability to hoist heavy implements.

The on- and off-board technology solutions incorporated into the MF 8700 S Series show Massey Ferguson’s commitment to innovation. Information is power when it comes to getting the job done more efficiently and more productively. That’s why Massey Ferguson delivers straightforward and dependable technology solutions resulting in unbeatable ease of use, improved productivity and profitability through higher yields, lower inputs costs and greater profits.

MF SECTION CONTROL
With the fully automatic Section Control for ISOBUS implements, operators can apply seeds, fertilizer or crop protection products without overlapping. This prevents double treatment and areas worked outside of the field edges.

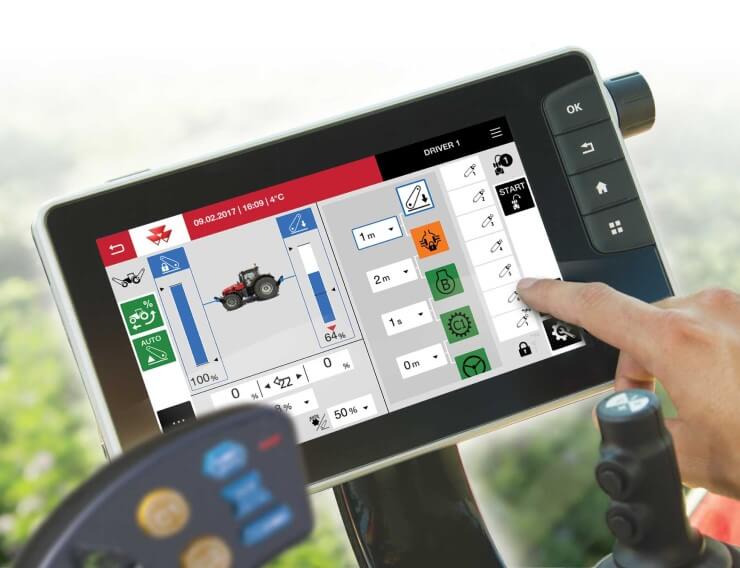

DATATRONIC 5
Available as an option on Efficient and Exclusive models, Datatronic 5 gathers and stores data on both tractor and precision farming setting. In addition, the terminal can be used to control MF Auto Guide, ISOBUS and cameras.

FIELDSTAR 5
The new FieldStar 5 terminal is designed to create a more intuitive precision farming experience, providing a system that delivers a straightforward and easy-to-use experience, improving efficiency, productivity and profitability.

MF CONNECT
MF Connect service enables you — and your dealer — to coordinate, optimize and seamlessly connect your fleet, to better manage maintenance and remotely monitor equipment in the field.

MF TASKDOC
The MF TaskDoc system has a real place in the future of agriculture, helping farmers to become more productive through the knowledge brought by putting precision-measured data at the business owner’s fingertips.

MF GUIDE
MF Guide is Massey Ferguson’s full-featured, hands-free steering system, available on new tractors or as an after-market installation. It is capable of delivering precise, high-accuracy movement, increasing the efficiency of your farming.
