6200

Description

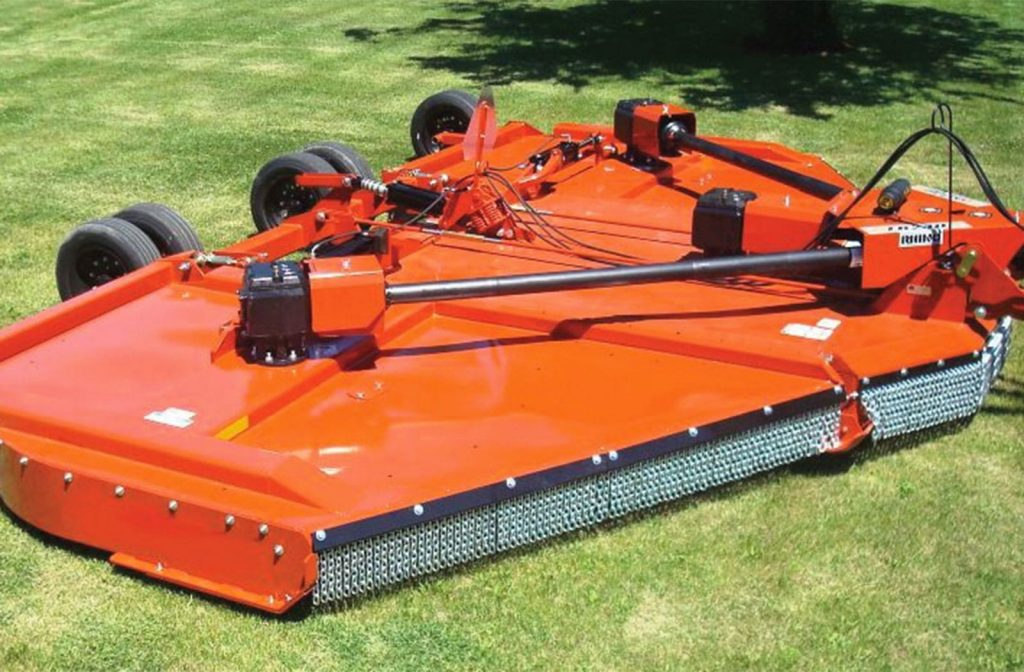

Perfect for mowing heavy grass and weeds, Rhino’s new 6000 series provides a great cut. The divider gearbox is rated at 250 horsepower, while the outboard boxes are rated at 225 HP! All of our gearboxes are sold with 6 Year Limited Warranties. Category 6 CV main drive and Category 6 wing drivelines are standard with a 2-year limited driveline warranty. The smooth top center deck is one of the strongest and easiest to clean in the industry, and the unobstructed underside of deck provides enhanced airflow in the cutting chamber to distribute cut material evenly. Based on application, the 6000 Series offer 540 and 1000 RPM drivelines, while three blade choices for the 6200 and two for the 6140!

ConditionNew
Model6200
Cutting Width240''
Transport Width115''
Transport Height100''
Overall Width248''
Overall Length216''
Cutting Height *2'' - 16''
Height AdjustmentHydraulic Cylinder
Jack StandStandard
HitchPull
Blade CarrierWing Pan, Oval Pan, or Shredder Bar
Blades1/2'' x 4'' Updraft
Blade Types Available
Blade Overlap6''
HP Required80 PTO
Tractor Drawbar Load2,920 lbs
Gearbox Rating - Divider **250 HP
Gearbox Rating - Center & Wing **225 HP
Gearbox Oil (85W-140)Factory Filled
Output Shaft Diameter3''
Blade Tip Speed (FPM) - 540 RPM15,675 Center/ 15,703 Wing
Blade Tip Speed (FPM) - 1000 RPM16,054 Center/ 15,804 Wing
Cut Capacity (Max)4 1/2''
Driveline SizeCAT 6 CV Main/Cat 6 HD Wing
Driveline ProtectionSlip Clutch
Deck Thickness10 Ga. Top/Bottom
Side Skirt1/4” x 12”
Tire and Wheel OptionLaminated, Pneumatic, Foam Filled
Wing Lift HydraulicsStandard
Wing Flex (Degrees)90° Up/22° Down
Deck RingsStandard
Safety Tow ChainStandard
Safety DeflectorSingle or Double Chain Guards
LED Light KitStandard

Features

  • Available with 540 or 1000 RPM drives
  • 6140 available with right wing and counterweight
  • Three blade carrier choices for your application needs
  • Deck rings included as standard
