605N Cornstalk Special Baler

Description

It takes a rugged baler with heavy-duty components to withstand the tough conditions and tight time frames of baling cornstalks.

When it comes to durability and efficiency, the new Vermeer 605N Cornstalk Special baler is equipped to bale through even the toughest crop quickly and efficiently. With more heavy-duty components than its predecessor, it’s clear that the 605N Cornstalk Special offers unmatched productivity when baling cornstalks.

ConditionNew
Model605N Cornstalk Special Baler

BALE SIZE

  • Bale Diameter: 36 in - 72 in (91.4 cm - 182.9 cm)
  • Bale Width: 61 in
  • Maximum bale weight: 2400 lbs

DIMENSIONS AND WEIGHTS

  • Length standard: 195 in
  • Height: 117 in
  • Width with standard tires: 129 in
  • Tires: 21.5L-16.1 flotation tire
  • Weight fully optioned: 8600 lbs

BALE FORMING CHAMBER

  • Drive Roller Size: 5.5 in (14 cm)
  • Drum roller size: 12 in
  • Idler roller size: 3.5 in (8.9 cm), 4.8 in (12.1 cm), 5.5 in (14 cm)
  • Start Roller Size: 4.5 in
  • Belt Type: Premium mini rough top
  • Number of Belts: 8
  • Width of Belt: 6.8 in
  • Length of belt (long): 540 in
  • Length of belt (short):533 in
  • Type of Lace: Alligator rivet
  • Silage kit: Optional

DRIVE SYSTEM

  • Driveline: 1000 rpm, extended lube, cut-out clutch
  • Torque protection pickup: Friction with slip-sensing
  • Roller chains: Single 50 (60, 80 - O-ring)
  • Bearing and Sprocket Configuration: Hex shaft and bearings

TRACTOR REQUIREMENTS

  • PTO horsepower minimum: 150 hp

PICKUP

  • Pickup type: Cammed wide
  • Width tooth to tooth: 77 in
  • Width on outside flair: 90 in
  • Tooth Bars: 10
  • Number of Teeth: (65) double rubber-mounted
  • Teeth spacing: 3-1/16 in (7.8 cm)
  • Stripper bands: Steel
  • Flotation: Gauge wheels - 7.1 - 16 HD semi-pneumatic with spring assist
  • Pickup Lift: Hydraulic

CONTROL SYSTEM

  • Control system type: E-Link Pro
  • Display: 7 in (17.8 cm) color touch screen
  • Field Statistics: 20 customers with 10 fields each
  • Field statistics download: USB
  • Bale shape indicators: Standard
  • Moisture: Standard - up to 27%
  • Bales per hour: Standard

DENSITY

  • Bale density adjustments: Standard
  • Density readings: Physical gauge
  • Cylinder size: 3 in (7.6 cm)

BALE TIE SYSTEM

  • Netwrap system: Standard
  • Net tension control: via mechanical adjustment
  • Extra roll storage: Standard

FEATURES

  • Bale ramp: Standard hydraulic; Optional Inline® ramp
  • Auto Lube greasing system: Standard
  • Automatic chain lube system: Optional
  • Right-hand door: Standard
  • LED maintenance lights: Standard
  • Fire extinguisher, safety chain: Optional

Features

Heavy-duty components

Heavy-duty components – from the O-ring change to the pickups and axles – make the baler durable enough to handle high-volume, contamination-prone cornstalks.

Pickup clutch

The drive system features a pickup clutch that is mounted on the lower drive roller that automatically stops the pickup when desired bale size is reached. Lessening inadvertent overfill of the bale chamber, this feature provides longer pickup life due to less wear and tear on components.

E-Link Pro display

The E-Link Pro display offers enhanced usability, such as easily accessible bale weight and moisture readings on the home screen with optional scale and/or moisture sensors. It also comes with the ability to keep track of information for up to 20 customers, with up to 10 fields per customer, electronically. Additionally, the E-Link Pro display provides the operator with feedback on the Auto Lube greasing system and the pickup clutch control.

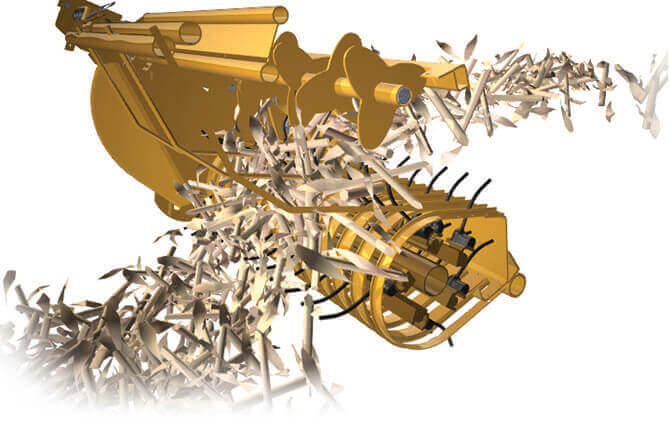

Patented powered windguard design

Features evenly spaced, fin-shaped plates clamped to the hex shaft to help feed high-volume cornstalk material into the bale chamber. And it’s reversible – so you can quickly clear the pickup and continue to bale, without leaving the tractor cab.

Inline ramp

The Inline® ramp makes loading bales in the field up to 35% faster by turning the bales during discharge to position them between the rows. Reduce damage to the bales and wear and tear on bale moving equipment, with less movement required for bale retrieval and prevent the need to drive across rows, ridges and stalks.

Standard Auto Lube greasing system

Controlled through the E-Link Pro display, the standard Auto Lube greasing system allows timely lubrication to critical bearings at user-defined intervals. This automatic system performs best with high-pressure polyurea grease.
