5700S Series Mid-Range Tractors

Description

EFFICIENT DESIGN. IMPRESSIVE PERFORMANCE.
MF 5700 S Series Mid-Range Tractors
The MF 5700 S Series tractors offer excellent maneuverability and versatility for work in and around barns, in the field, or on the road. The impressive performance and efficient design of the Dyna-4 transmission provides unbeatable productivity, control and convenience, with completely clutchless shifting of 16 forward and 16 reverse speeds.

THE ULTIMATE LOADER TRACTOR
The slim dashboard; high-visibility steep nose hood; left-hand Power Control lever to change direction, shift speeds and shift to neutral; and the multi-function joystick to operate the loader, change direction and change speeds are just a few reasons the MF 5700 S Series carries the reputation of the ultimate loader tractor.

LOW COST OF OPERATION
High-efficiency AGCO Power™ 4-cylinder, 4.4 liter Tier 4 Final engines offer more power and torque, plus lower fuel and DEF consumption. An “All-In-One” emissions system consists of a DOC and SCR and doesn’t require a DPF filter. That means no downtime and no DPF service cost over the life of the tractor.

LOW REPAIR AND MAINTENANCE COST
The MF 5700 S Series has several maintenance-free components including the Tier 4 Final engine’s after-treatment system.

ERGONOMIC CONTROLS
Easy-to-reach controls make operation a breeze. The right-hand T-handle allows for simple shifting between Dynashift ratios. A multi-function left-hand control provides convenient forward/reverse operation and shifting speeds. An optional multipad joystick puts even more controls within easy reach.

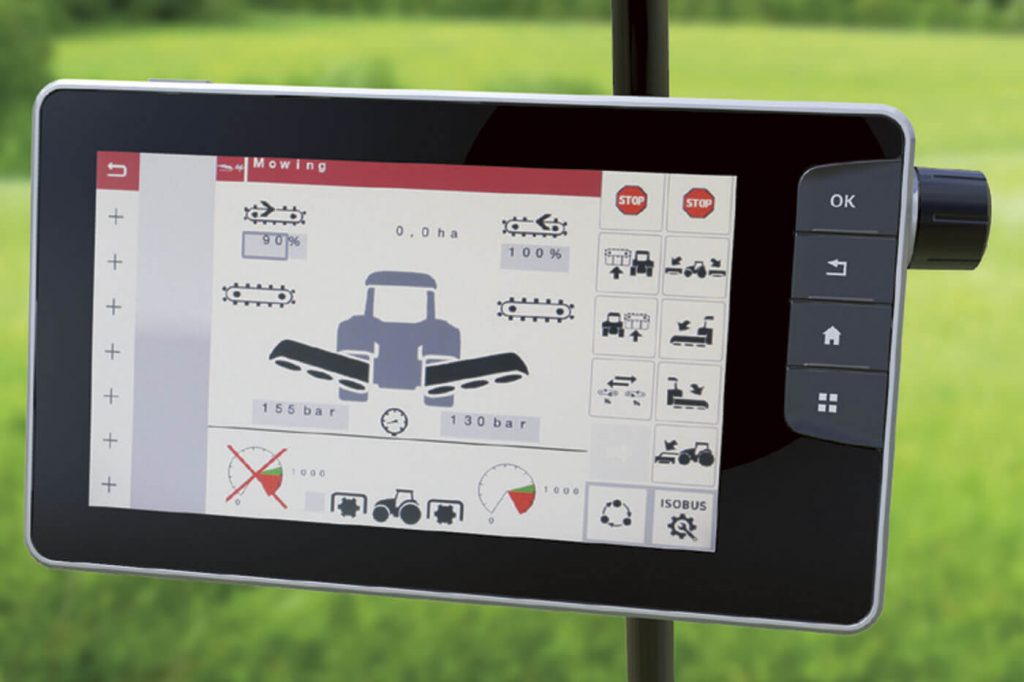

TECH YOU NEED FOR BIG PRODUCTIVITY
The FieldStar 5 system features a larger nine-inch screen and intuitive arrangement, similar to popular tablets or smartphones, and help you simplify work in the field by unlocking new precision farming functionalities.

ConditionNew
Model5700S Series Mid-Range Tractors

5711S

Model5711S
Max Engine HP110
PTO HP85
Hydraulic Flow (GPM)29
Max Gross Weight (lbs.)18,700

5712S

Model5712S
Max Engine HP120
PTO HP95
Hydraulic Flow (GPM)29
Max Gross Weight (lbs.)18,700

5713S

Model5713S
Max Engine HP130
PTO HP105
Hydraulic Flow (GPM)29
Max Gross Weight (lbs.)18,700

Features

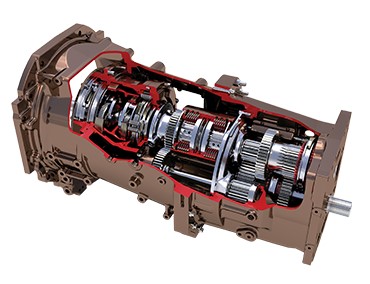

EFFICIENT DRIVELINES BRING HIGHER PRODUCTIVITY
The proven Dyna-4 transmission provides 16 speeds with optional Auto-Drive™ for automatic shifting, helping to achieve the desired ground speed for any application.

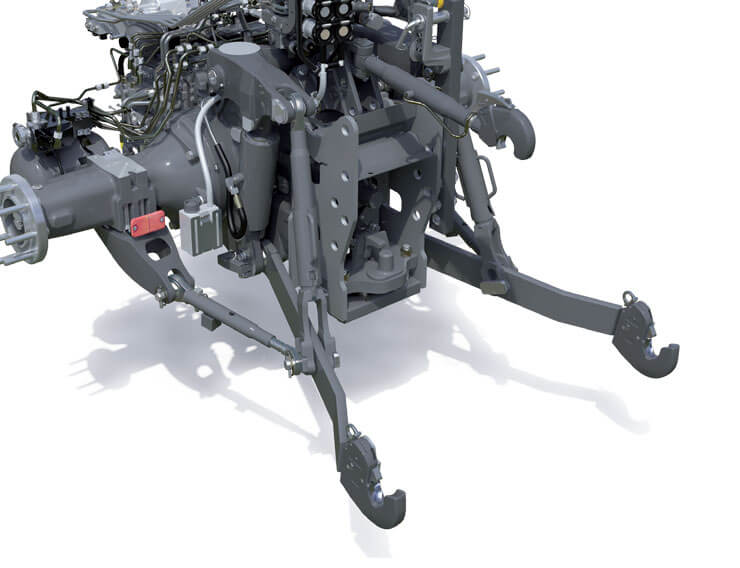

HEAVY-DUTY REAR LINKAGES
The rear linkage has been optimized specifically to complement this size of tractor. It boasts an impressive lift capacity of up to 11,464 lbs., meaning that heavy mounted equipment can be lifted with ease.

SIMPLE, MULTI-FUNCTION LEFT-HAND CONTROL
The Power Control lever provides convenient three-in-one, straightforward operation. Operators can shuttle between forward/reverse, shift Dynashift speeds/ranges, and select neutral, leaving the right hand free to operate the loader/implement hydraulics.

SUPERCREEP
Close control in specialized low-speed tasks is assured with additional supercreep gears, enabling forward speeds as low as .06 mph to be achieved.

WORK IN COMFORT
Cab and front axle suspension improve driving comfort and decrease operator fatigue.

THE BEST SEAT IN THE HOUSE
The panoramic cab offers unobstructed visibility to the right-hand side for safe and efficient operation of side-mounted equipment. The wide, one-piece polycarbonate screen is extremely tough and protects operators from flying debris.

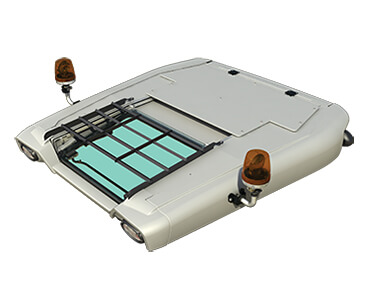

VISIO ROOF
The optional Visio™ roof provides perfect visibility when stacking bales or loading trailers. The Visio roof has a sunblind that can be pulled shut when the loader is not in use.

EFFICIENCY PTO
The PTO stems from a simple driveline, giving maximum power transmission. PTO speed selection is electro-hydraulic. Rocker switches are conveniently placed in the console.

INTEGRATED FRONT LINKAGE SYSTEM (IFLS)
A heavy-duty Integrated Front Linkage System (IFLS) is available as an option and is designed to match the front suspension.

WORK WITH THE MOST DEMANDING IMPLEMENTS
With up to four spool valves to the rear and two to the front, and the optional 26 gpm open-center system or 29 gpm closed-center system, the MF 5700 S is compatible with the most demanding implements.
