Brent 57-Series Grain Train® Wagons

Call Now Get A Quote Schedule A Visit Value Your Trade Apply for Financing

Description

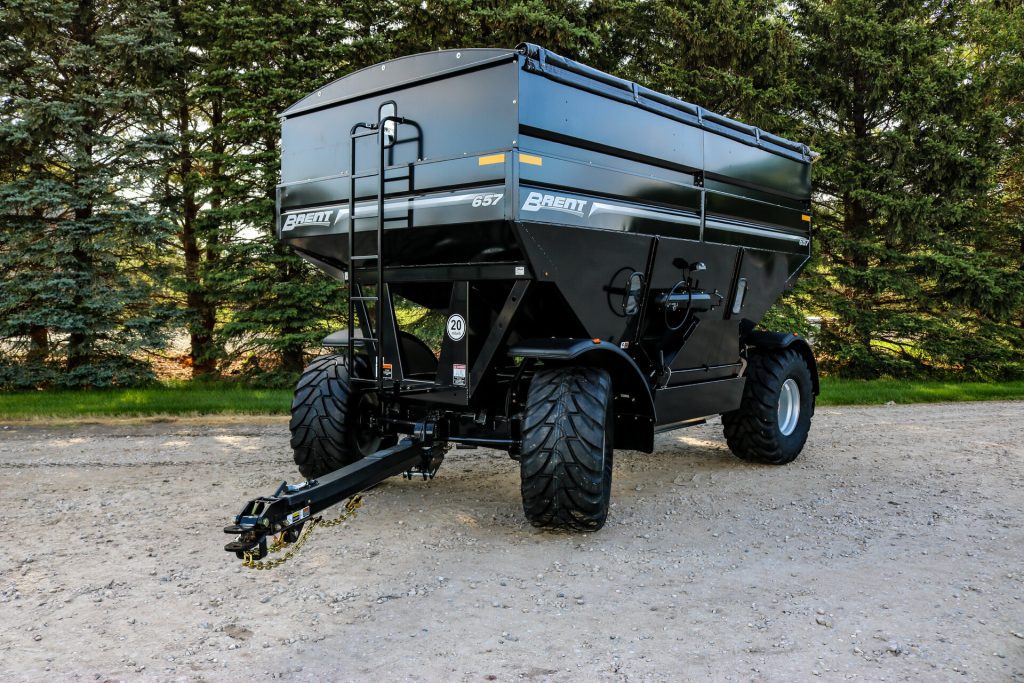

Brent 57-Series Grain Train Wagons move grain fast. They’re built for local hauls and field-to-field moves. Pick the 757, 657, or 557 model. Capacities range from 550 to 750 bushels. A steep interior and wide door empty each wagon quickly. The UltraSteer chassis turns tight and rides smooth over rough ground. Heavy-duty hubs and a tough finish help these wagons last for years.

Condition Used
Model 57-Series Grain Train® Wagons


Compare Models

Three sizes to choose from. Click any model below to see full specs.

757 | 750 bu
Model Brent 757
Capacity 750 bushels
Length 17 ft, 6 in
Width 9 ft, 6 in
Height 10 ft, 9 in
Front/Rear Slope 36°
Back Slope 32°
Door Width 60 in
Chute Height (adjustable) 15 in – 18 in
Unloading Time 80 sec
Brakes (hydraulic surge) 4-wheel
Spindle Size 3.5 in
Hub Size 10-bolt
Wheel Size (singles) 13x22.5
Wheel Size (duals) 9x22.5
Overall Width (singles) 8 ft 8 in / 9 ft 6 in
Overall Width (duals) 10 ft, 3 in
Turning Radius 8 ft (10 ft 3 in w/ duals)
Wheel Base 12 ft
Approx. Weight 7,370 lbs
657 | 650 bu
Model Brent 657
Capacity 650 bushels
Length 16 ft, 9 in
Width 9 ft
Height 10 ft, 4 in
Front/Rear Slope 37°
Back Slope 32°
Door Width 60 in
Chute Height (adjustable) 15 in – 18 in
Unloading Time 70 sec
Brakes (hydraulic surge) 4-wheel
Spindle Size 3.5 in
Hub Size 10-bolt
Wheel Size (singles) 13x22.5
Overall Width (singles) 8 ft, 8 in
Turning Radius 8 ft
Wheel Base 12 ft
Approx. Weight 7,130 lbs
557 | 550 bu
Model Brent 557
Capacity 550 bushels
Length 15 ft, 7 in
Width 9 ft
Height 10 ft
Front/Rear Slope 40°
Back Slope 32°
Door Width 60 in
Chute Height (adjustable) 15 in – 18 in
Unloading Time 60 sec
Brakes (hydraulic surge) Rear (std.), Front (opt.)
Spindle Size 3.25 in
Hub Size 8-bolt
Wheel Size (singles) 13x22.5
Overall Width (singles) 8 ft, 5 in
Turning Radius 7 ft, 9 in
Wheel Base 10 ft, 11 in
Approx. Weight 5,890 lbs

Features

Capacity & Chassis Performance

Capacities for Any Operation
Choose 750 bushels (757), 650 bushels (657), or 550 bushels (557) to match your operation’s needs.

UltraSteer™ Chassis
The exclusive UltraSteer™ chassis delivers a tight turning radius and a smoother ride, even over rough ground.

Stable, Quiet Ride
A torsion-bar rear axle and torsion-flex bolsters on all corners keep the wagon level and stable during transport.

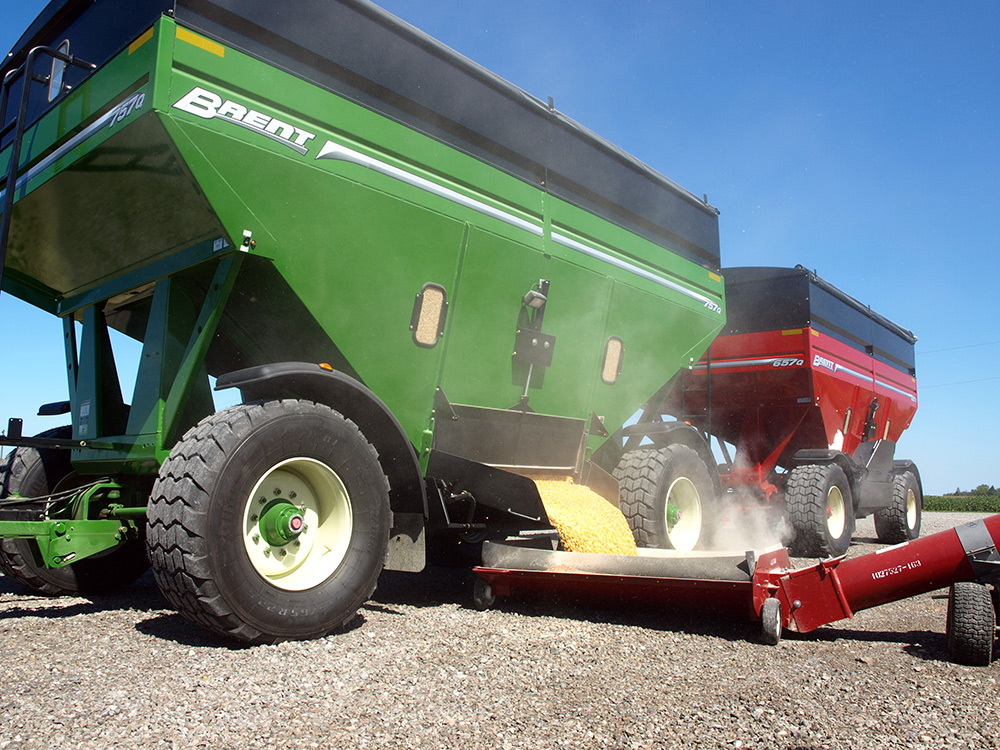

Fast, Complete Unloading

Fast, Complete Unloading
A steep-sloped, graphite-coated interior and a dual-position, 60-inch door empty the wagon quickly and completely.

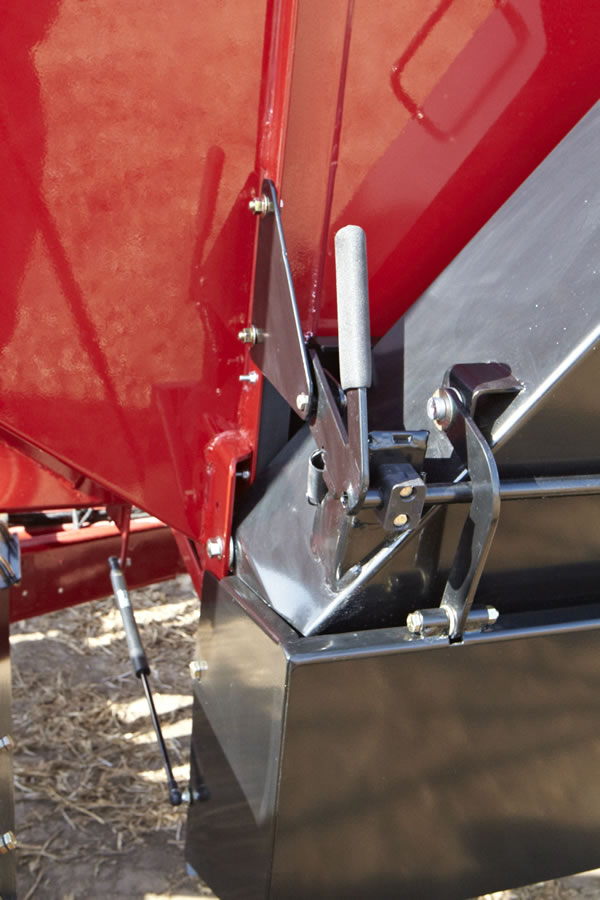

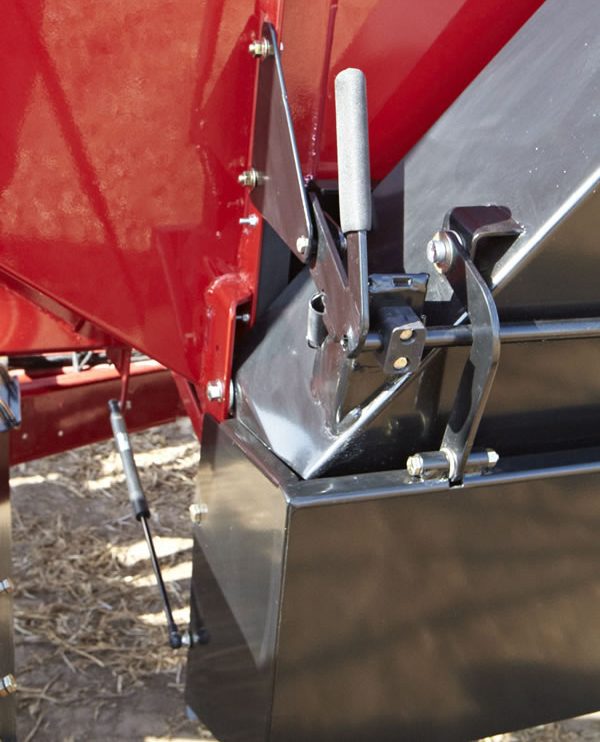

Effortless Unloading Chute
The gas-strut, lift-assist unloading chute with spring-loaded lock adjusts from 15 to 18 inches for flexibility at the pit or conveyor.

Dual-Position Door Wheel
A patented 6-to-1 gear reduction lets you open the door effortlessly from either the left or right side.

Built to Last

Oil-Bath Hubs
Heavy-duty oil-bath hubs keep maintenance low and durability high.

Retractable Wiring Harness
A lift-assist tongue with enclosed brake lines and a retractable wiring harness protect components for long service life.

Highway-Rated Tires
Choose from multiple singles or duals tire options, all DOT-compliant for the road.

Safety & Protection

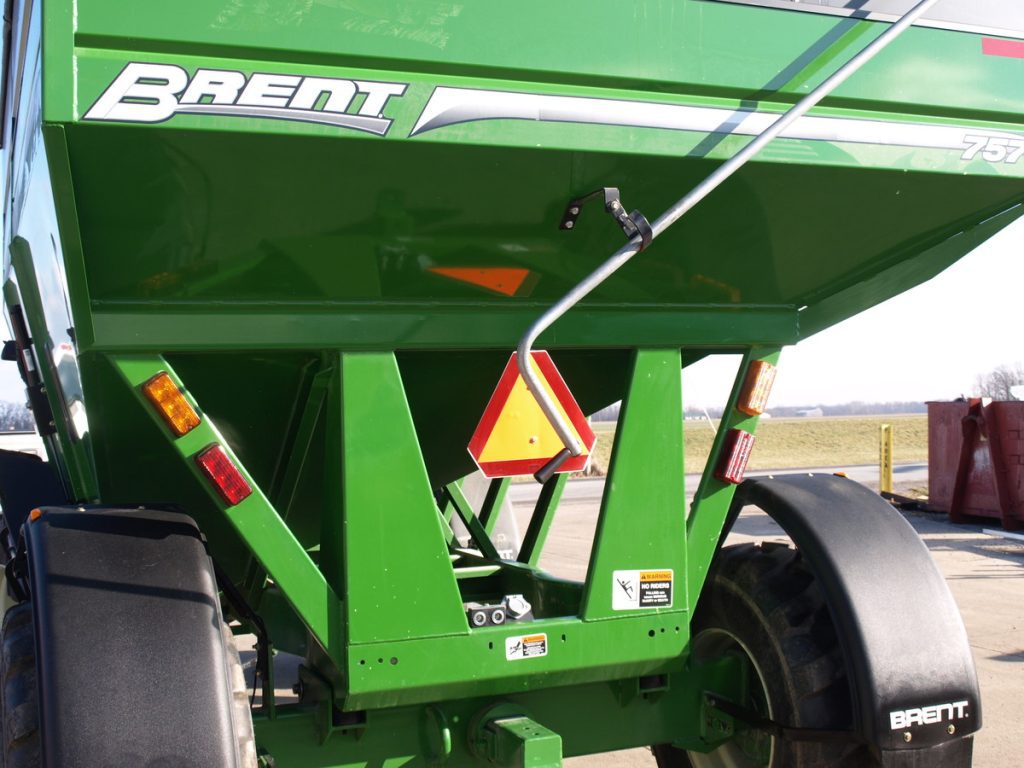

Molded Fenders & LED Lights
Molded fenders with integrated marker lights protect the finish and improve visibility on the road.

Built for Safety
Reflective striping, SMV/SIS emblems, and a safety chain come standard on every wagon.

Weather Protection
An optional 18 oz. canvas Weatherguard tarp with a self-locking design keeps grain covered, with electric open/close available.
