5215

Description

TOP SHOT SIDE DISCHARGE MANURE SPREADER MODEL 5215 – 1286 & 1500 GALLON

ALL MODELS EXCEPT THE 5215 are available with the optional Digi-Star GT400, or Nutrient Tracker Scale System with GPS!

The heavy-duty expeller system with a quick release poly-lined fine spread pan, and side fins help cut the drift of material towards the tractor and spreader, and provide an excellent spread pattern.

FEATURES

30″ Wide “Top Shot” Expeller Beater

24″ Diameter Round Core Segmented Auger

Left Side Poly Lined Tank

Front Splash Guards

Overrunning Clutch /Torque Limiting Clutch & Shear Bolt Protection

Shear Bolt Protection

Remote Grease System

The Auger System hydraulically raise and lower a full 8″ to break-up material that may bridge during the unloading process.

Automatic Chain Oiler System (Optional)

Highway Lighting System (Optional)

Rear Splash Guard & Side Boards = 1500 Gallon Capacity (Optional)

Tandem axle is available with your choice of 295R x 225 recap tires or 16.5 x 16.1 floatation tires. (Optional)

OPTIONS

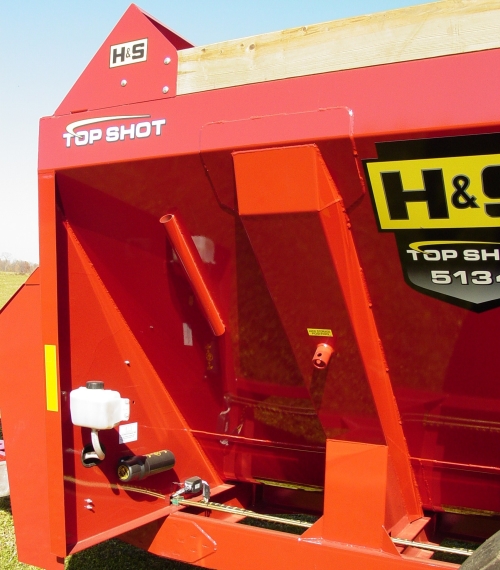

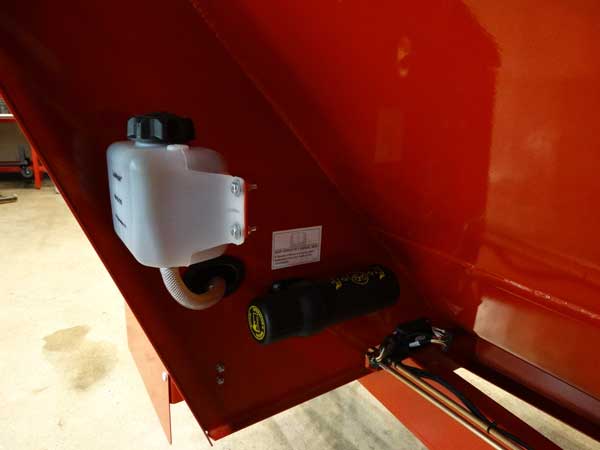

An optional automatic oiler system is available for the 5215 (standard on other models). The drive system chains are oiled anytime the discharge door is raised. A scraper holder is standard equipment. Jack storage is on the left side of the manure spreader.

ConditionNew
Model5215
5215
CUBIC FT. STRUCK LEVEL172
GALLON CAPACITY1286
TANK LENGTH14′
OVERALL LENGTH20′ 10″
TANK WIDTH - TOP70″
AUGER DIAMETER24″
POLY LINED TANKLeft Side
OVERRUNNING CLUTCHYes
SHEAR BOLT PROTECTIONYes
PTO540 RPM Std. 1000 RPM Opt.
EXPELLER WIDTH30″
FRONT SPLASHGUARDSStandard
REAR SPLASHGUARDSOptional
AUTOMATIC OILEROptional
HIGHWAY LIGHTINGOptional
WEIGHT5,740#

TIRE SPECIFICATIONS
w/19L X 16.1 Tires
SIDE LOADING HEIGHT65 ¾″
HEIGHT @ REAR CYL. BRACKET66 ¾″
HEIGHT @ FRONT SPLASH79″
HEIGHT @ REAR SPLASHN/A
OVERALL WIDTH88 ½″
WARRANTY: SEE OPERATORS MANUAL FOR WARRANTY DETAILS AND LIMITATIONS. H&S RESERVES THE RIGHT TO CHANGE ITS PRODUCTS OR THE DESCRIPTION AT ANY TIME WITHOUT NOTICE OR OBLIGATION. MODELS AND SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT PRIOR NOTICE.

Features

  • 30″ Wide “Top Shot” Expeller Beater
  • 24″ Diameter Round Core Segmented Auger
  • Left Side Poly Lined Tank
  • Front Splash Guards
  • Overrunning Clutch /Torque Limiting Clutch & Shear Bolt Protection
  • Shear Bolt Protection
  • Remote Grease System
  • The Auger System hydraulically raise and lower a full 8″ to break-up material that may bridge during the unloading process.
  • Automatic Chain Oiler System (Optional)
  • Highway Lighting System (Optional)
  • Rear Splash Guard & Side Boards = 1500 Gallon Capacity (Optional)
  • Tandem axle is available with your choice of 295R x 225 recap tires or 16.5 x 16.1 floatation tires. (Optional)

OPTIONS

  • An optional automatic oiler system is available for the 5215 (standard on other models). The drive system chains are oiled anytime the discharge door is raised. A scraper holder is standard equipment. Jack storage is on the left side of the manure spreader.
