Massey Ferguson 4700 Series Utility Tractors

Call Now Get A Quote Schedule A Visit Value Your Trade Apply for Financing

Description

Built for tough, gritty jobs. The 4700 Series from Massey Ferguson

The Massey Ferguson 4700 Series is built for tough, gritty jobs but engineered to be easy to use and comfortable to operate. The result of more than 65,000 hours of rigorous endurance testing in extreme conditions around the world, these heavy-duty utility tractors are purpose-built for big pulling power, more lift capacity, better maneuverability, and stability. With three models ranging from 75 to 100 HP, your choice of cab or open-platform configurations, and either a 12×12 Power-Shuttle or Dyna-2 transmission, the 4700 handles everything from loader work, haying, tilling, and rotary mowing to powering feed grinders and augers. At a best-in-class base weight of 7,125 lbs, the 4700 Series brings stability and pulling power that punches well above its horsepower class.



Download Brochure

Condition New
Model 4700 Series
  • Massey Ferguson 4700 Utility Tractor

Compare Models

Three models to choose from. Click any model below to see full specs.

MF 4707 | 75 HP Max
ModelMF 4707
Max Engine Power (HP)75
Rated Engine Power (HP)70
PTO Power (HP)60 @ 2,000 RPM
EngineAGCO Power 3.3L, 3-cylinder, Intercooled Turbocharger
Transmission12x12 Power-Shuttle or Dyna-2 (24x24)
MF 4709 | 95 HP Max
ModelMF 4709
Max Engine Power (HP)95
Rated Engine Power (HP)90
PTO Power (HP)77 @ 2,000 RPM
EngineAGCO Power 3.3L, 3-cylinder, Intercooled Turbocharger
Transmission12x12 Power-Shuttle or Dyna-2 (24x24)
MF 4710 | 100 HP Max | Top of the Line
ModelMF 4710
Max Engine Power (HP)100
Rated Engine Power (HP)99
PTO Power (HP)87 @ 2,000 RPM
EngineAGCO Power 3.3L, 3-cylinder, Intercooled Turbocharger
Transmission12x12 Power-Shuttle or Dyna-2 (24x24)

*Max power @ 2,000 RPM. Rated power and PTO HP @ rated RPM. All models feature High Pressure Common Rail Direct Fuel Injection (HPCR) and a Tier 4 Final-compliant engine. Available in 2WD or 4WD configurations.

Features

Heavier built. Easier to use.
The 4700 Series is heavier than other tractors in its class, uniquely designed to handle larger, heavier implements and more demanding applications. From the ground up, these tractors are engineered for smart, ergonomic, long-lasting operation. With AGCO Power 3.3L 3-cylinder engines specifically configured for North America, two transmission choices, a 4,850+ lb rear lift capacity, and a low center of gravity, the 4700 brings stability and pulling power to whatever your day requires. Whether you’re doing loader work, haying, tilling, mowing, or powering a feed grinder, this is the utility tractor that won’t hold you back.

Performance

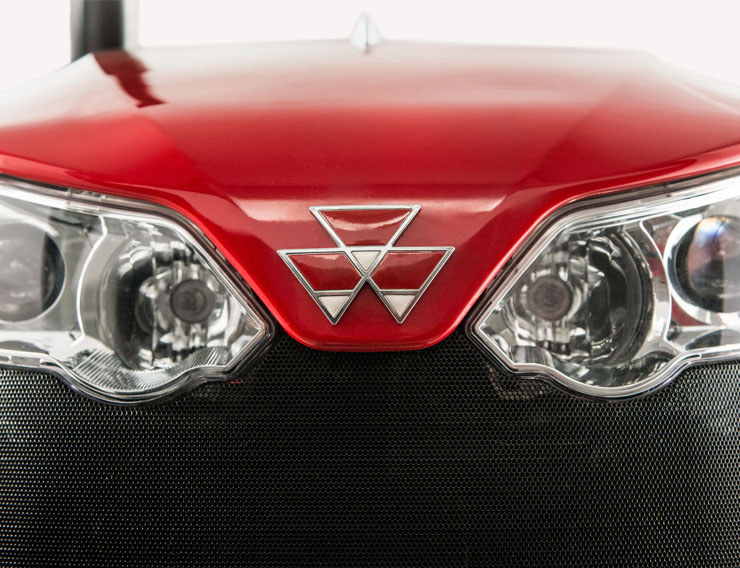

3-Cylinder 3.3L AGCO Power Engine
Rugged, reliable, fuel-efficient Tier 4 Final engine specifically configured for North America. Delivers 70-100 HP across the lineup with intercooled turbocharger and High Pressure Common Rail Direct Fuel Injection (HPCR).

Two Transmission Options
Choose between a 12×12 Power-Shuttle for straightforward operation or the Dyna-2 (24×24) with Speedmatching and Brake-to-Neutral for more loading and hauling tasks.

It’s a Beast
Best-in-class base weight of 7,125 lbs. Purpose-built for big pulling power and lift capacity, with better maneuverability and stability than other tractors in its class.

No DPF Required
The Diesel Oxidation Catalyst (DOC) emissions system means no Diesel Particulate Filter and no need to regenerate. Saves time, fuel, money, and unnecessary wear on the engine.

65,000+ Hours of Endurance Testing
Put through rigorous endurance testing in extreme weather and terrain conditions at seven sites around the globe. Engineered to last.

Productivity

2WD/4WD Options
2WD axle comes with five track-width settings in 4-inch steps to accommodate virtually all crop or field conditions. Optional hydraulic-controlled differential lock on 4WD front axles ensures evenly distributed drive for better traction.

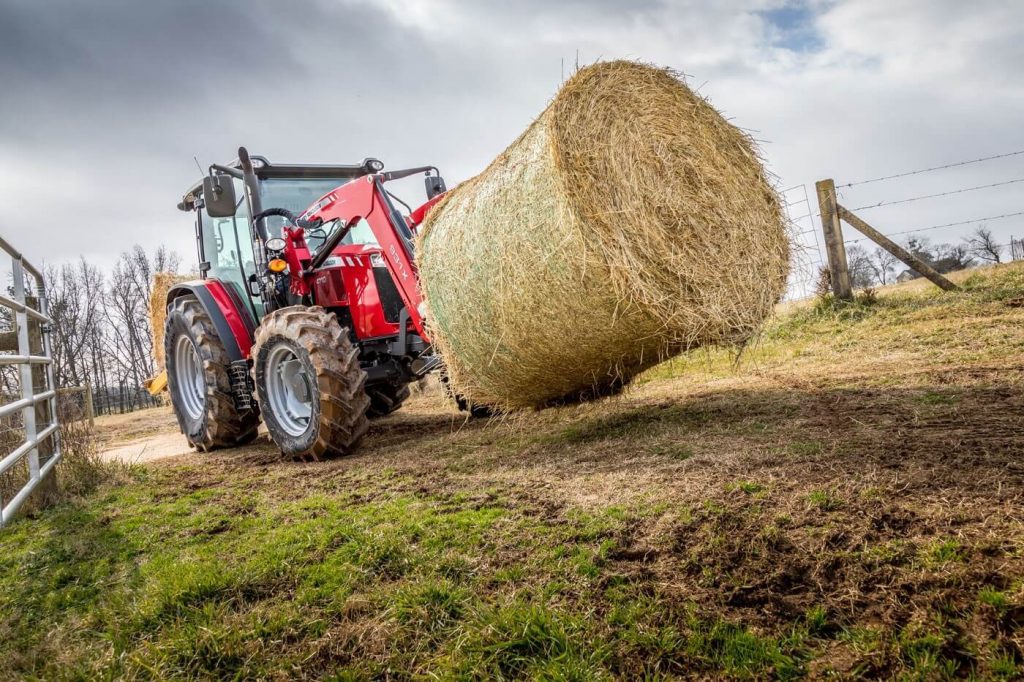

Better Maneuverability for Tight Spaces
Tight turning radius makes it easy to work in confined spaces with better stability. Maneuver headlands, barns, and yards without sacrificing pulling power.

Adjustable Wheel Spacing
Wide range of wheel-spacing settings handles everything from specialty farming applications like small-scale row crops and vegetables to roadside mowing and land management.

Heavy-Duty 3-Point Hitch
Two gear pumps power the simple, open-center hydraulic system. Heavy-duty three-point hitch provides rear lift capacity of 4,850+ lbs — virtually no limit to the range of implements you can put behind these tractors.

Premium Radial Tires Standard
Premium radial tires are standard, providing superior operator comfort, performance, and stability. The flexible construction absorbs shock and bumps better than other tires, reducing wear and delivering a smoother ride.

Ease of Use

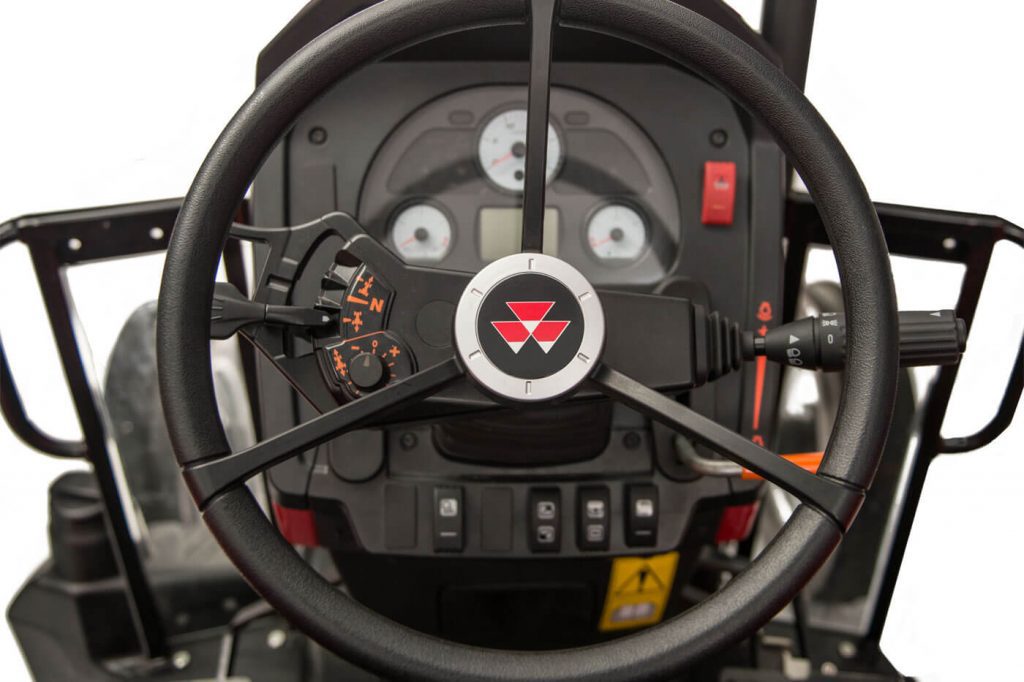

Easy-Reach Controls
Essential controls are ergonomically positioned for easy operation and comfort. Smart, ergonomic design means your tractor never works harder than it needs to.

Fender-Mounted 3-Point Controls
On deluxe models, hitch raise and lower controls are incorporated into the rear fender, making hook-up and disconnection of 3-point implements quick and easy.

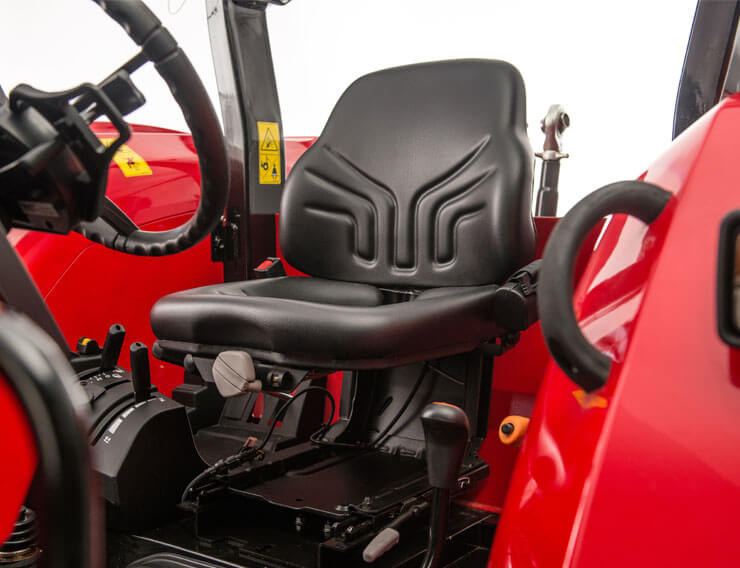

Seat Options
Open-platform models come standard with a mechanical spring seat. Cab tractors offer a mechanical spring-swivel seat as standard, with an upgrade option for a deluxe swiveling air-ride seat for all-day comfort.

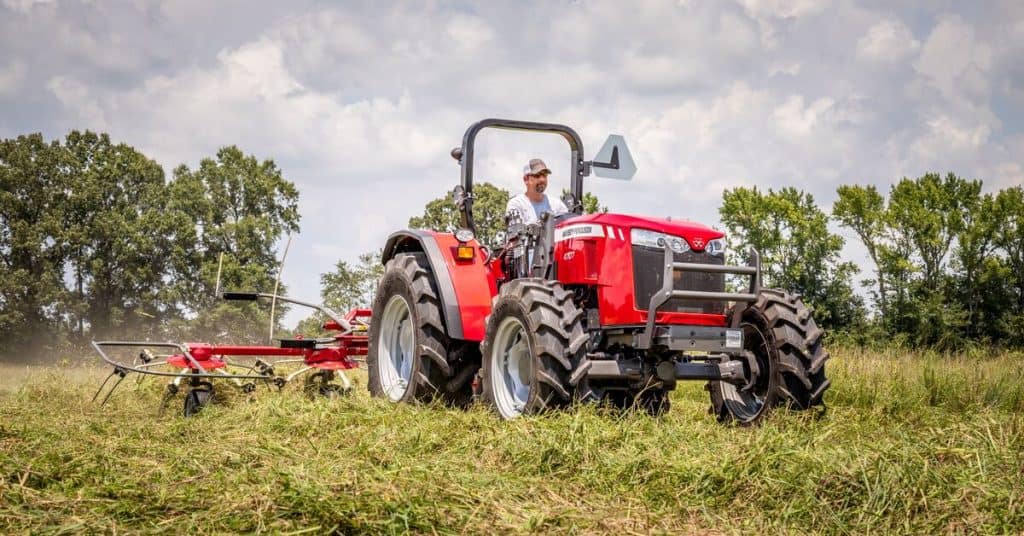

Cab or Open-Platform
Choose the configuration that fits your operation and budget. Cab models offer climate control and operator comfort. Open-platform models keep things simple and affordable.

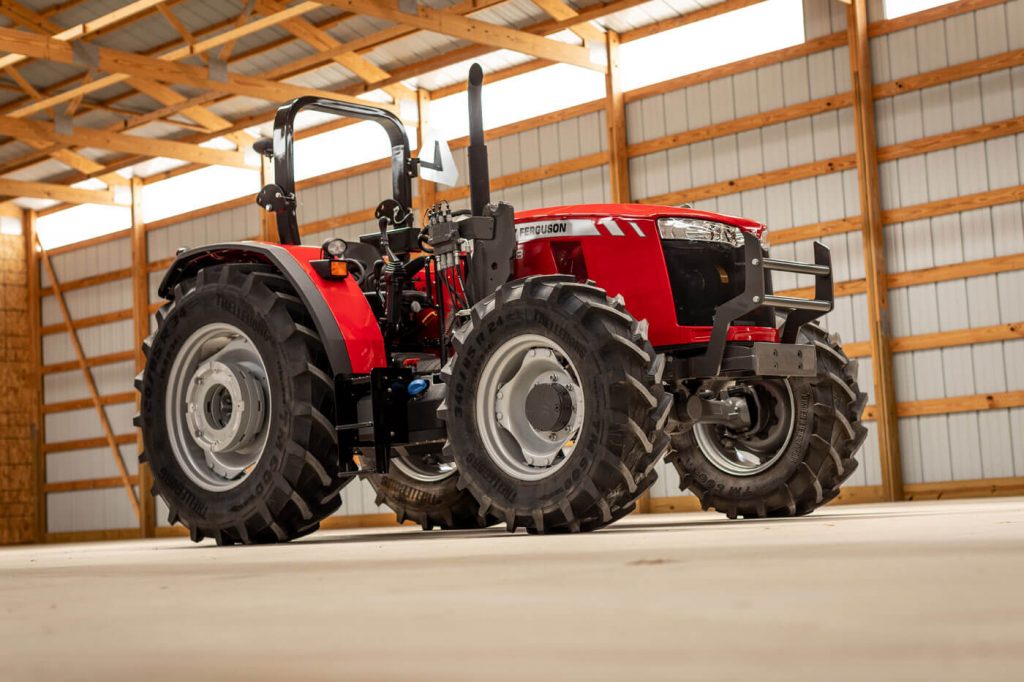

Low Cost of Ownership
Built to be fuel-efficient and straightforward to use. A tractor that won’t hold you back or create additional costs.
