Kinze 412 Mach Till

Call Now Get A Quote Schedule A Visit Value Your Trade Apply for Financing

Description

 Kinze built the 412 Mach Till to cover thousands of acres each season. Front discs loosen soil, and rear discs invert it for a level finish. A rubber furrow roller firms the ground and controls wind and water erosion. At 41 feet wide, the Mach Till tills about 50 acres every hour.

Condition New
Model 412 Mach Till

Specifications

Model 412 Mach Till
Condition New
Model 412 Mach Till
Type High-Speed Vertical Tillage Tool
Frame 3-Section
Number of Discs 98
Disc Diameter 20" or 22"
Disc Spacing 10" (Row) / 5" (Overall)
Disc Arm Angle 17° Rear, 14° Front
Working Width 41'
Transport Width (High Position) 16'
Transport Width (Low Position) 17'8"
Transport Height (Low) 13'6"
Transport Height (High) 14'
Transport Length 27'6"
Field Length 33'
Weight (w/ Rubber Roller, Scraper & 20" Discs) 37,800 Lbs.
Hitch Weight 10,500 Lbs.
Hitch Category 5 Articulating (Cat. 4 Insert Available)
Engine HP Requirement (Min.) 620+ (15 HP Per Foot)
Hydraulic Requirement 18-20 GPM at 2,500 PSI
Average Field Capacity 50 Acres/Hr. (3" Depth, 10 MPH, 80% Efficiency)

Features

Tillage Process & Discs

Independently Mounted Discs
Each disc moves up to 11.5 inches to clear rocks and follow land contours.

Rubber Torsion Disc Mounts
Four rubber spring elements pre-load each disc arm to keep discs engaged with the soil.

Concave Smooth & Double-V Discs
Shallow-faced discs cut aggressively while they break up compaction layers below.

Finishing & Weight Control

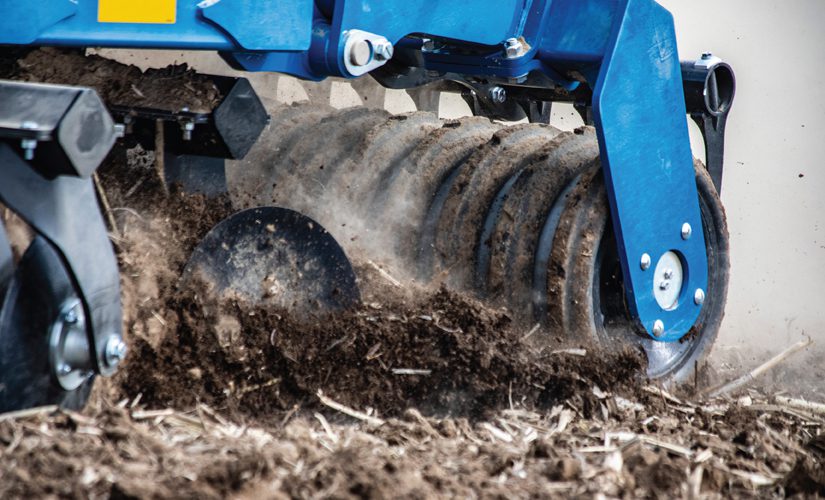

Full-Width OTICO Rubber Furrow Roller
The full-width roller firms soil and residue together without compacting the ground.

Hydraulic Weight Distribution
A pressure-compensated system spreads frame weight wing to wing for even depth.

Six-Way Adjustable Dirt Deflector
The dirt deflector adjusts six ways to level soil evenly between passes.

Durability & Hookup

Maintenance-Free DoubleSealed Bearings
Double-sealed bearings, composite bushings, and oversized pins cut downtime across many acres.

Tungsten Carbide Scrapers
Carbide roller scrapers keep the furrow roller clean in wet, sticky soil.

Category 5 Articulating Hitch
The articulating Category 5 hitch flexes with the tractor for easier turns.

Easy Hydraulic Hookup
Color-coded, textured couplers and a hose rack make hookup fast and simple.
