4100v Series Round Silage Balers

Description

A BETTER BALER.
MF RB Series Round Balers
Whether you run a small-to-mid-size dairy farm or a cow/calf operation, these rugged, hardworking machines from Massey Ferguson are built to handle everything your operation demands.

MORE COMPLETE CAMLESS PICK-UP
The RB Series features five tine bars with teeth spaced just 2.5 inches apart, allowing for a far more complete capture of crop on the field. A crop press roller is positioned in front of the pickup to enhance crop feeding into the chamber.

CHOP SILAGE, STOVER OR HAY
Two sets of XtraCut™ hydraulically operated knife banks can be controlled or disengaged from the tractor cab. Select zero, eight, nine or all 17 knives to attain forage cuts as small as 2.65 inches in length.

MORE OPERATOR CONTROL
The E-link Pro™ touch-screen monitor tracks bale formation and allows in-cab control of cutter engagement and knife group selection. In addition, the baler’s ISOBUS design allows the use of any compatible tractor monitor for baler monitoring and control.

ConditionNew
Model4100V Series
ModelRB4160VRB4180V
Bale Chamber Diameter35.5"-63"35.5" -71"
Bale Chamber Width48"48"
Bale Size4'x5'4'x6'
Pick-up width (flare-to-flare)78"78"
Tine to Tine width73"73"

Features

MORE TINE BARS
Due to the additional space created through the absence of a cam track, five tine bars are now fitted to the pickup. With the tines spaced just 2.5 inches apart, you get an even better and cleaner crop intake.

OFFSET TINES
When looking at the RB Series pickup, you’ll notice offset tines on the ends. This allows the pickup to continually and consistently feed the crop flow augers, giving you square, shouldered bales.

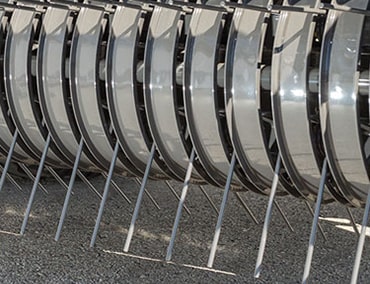

MORE DURABLE TINES
The tine is longer, thicker and more flexible for increased lifespan. Improved tine fixation also helps prevent tine breakage, because the tension within the material is more evenly spread.

ANGLED FOR CLEANER PICK-UP
The angle of the tine has been adjusted to ensure the cleanest possible crop pickup under all crop and soil conditions.

HYDROFLEXCONTROL
To maximise efficiency in the field and minimise downtime from crop blockages, the MF Round balers are fitted with the unique Hydroflexcontrol protection system which works in two stages:

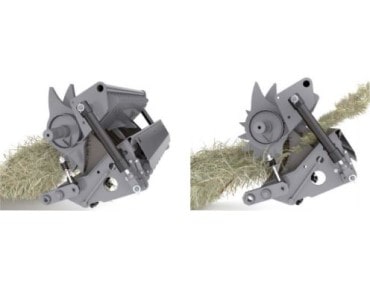

HYDROFLEXCONTROL – STAGE 1
The first stage of Hydroflexcontrol allows movement of the front part of the feed chamber floor and will automatically prevent up to 80% of potential blockages and will keep you going without unnecessary downtime.

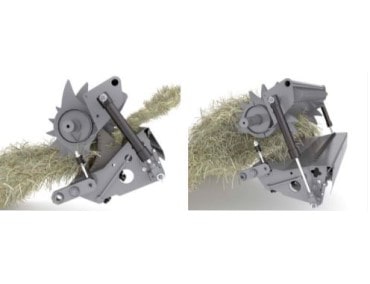

HYDROFLEXCONTROL – STAGE 2
Should a major blockage occur, stage two of hydroflexcontrol is activated by the operator, and is cleared by lowering the rear of the feed table floor hydraulically from the cab, allowing for material to easily pass through, therefore minimizing downtime.

IMPROVED CROP THROUGHPUT
Due to its compact design, the new pickup is positioned closer to the rotor. This ensures an improved crop flow to the bale chamber, giving you increased baling output, with well-shaped, more uniform bales every time.

THE HIGHEST BALE COMPACTION
The constant pressure system ensures an equally dense bale throughout, and four continuous belts provide maximum traction while the bale forms, creating the chamber.

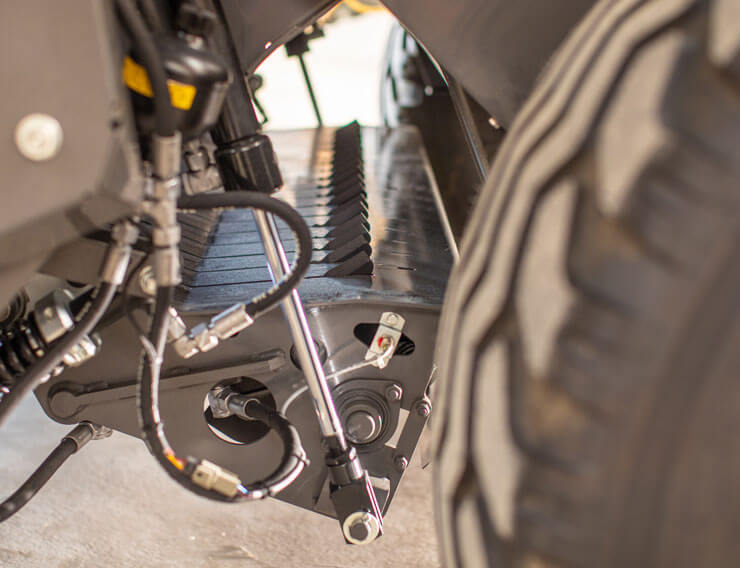

A HYDRAULIC SOLUTION FROM THE CAB
In the event of a blockage, the rear of the feed table floor can be lowered hydraulically from the operator’s seat. When lowering the feed floor, all knives are withdrawn, ensuring that the blockage has passed into the bale chamber without any wastage.

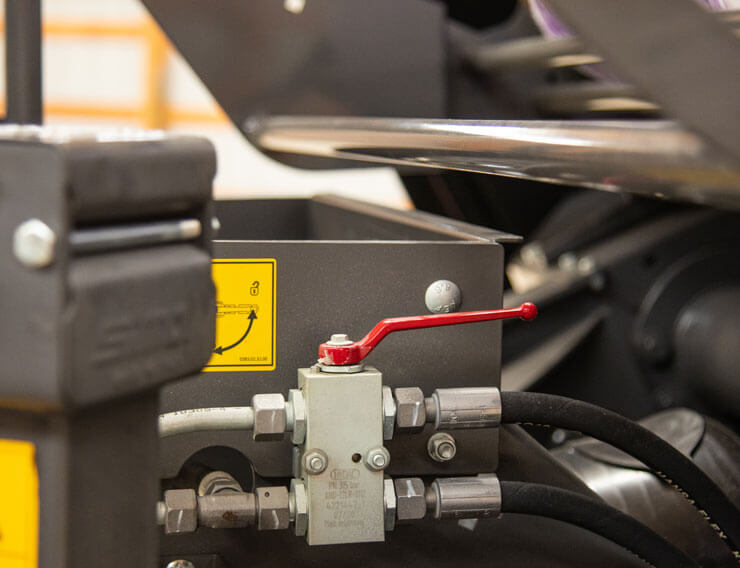

CONSISTENTLY SIZED BALES
The mechanical tailgate locking system ensures that the tailgate remains completely closed throughout the baling process, giving you consistently sized bales with little crop loss.

VARIONET WRAPPING
The Varionet system provides ‘edge to edge’ or ‘over the edge’ wrapping, for perfect bale coverage every time. This means your bales not only look great, but they’re also completely protected against bad weather and crop losses.

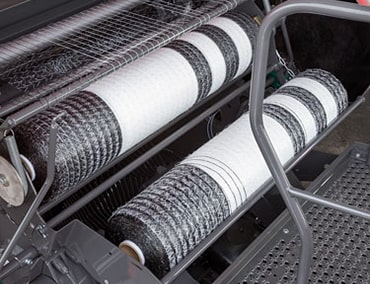

ELS MAKES IT EVEN EASIER
The Easy Load System, or ELS, allows easier loading of the net roll. After loading, the new net roll is simply tipped backward, then lifted and locked into position. It makes the process simple, saving you time and effort.

E-LINK PRO
The E-link Pro touch-screen monitor lets you track bale formation, control cutter engagement and select knife group from inside the cab. In addition, the baler’s ISOBUS design allows the use of any compatible tractor monitor for baler monitoring/control.
