The MF 3 Series is built for ground other tractors cannot work. Three configurations across seven models: Ground Effect for low clearance under trees and inside greenhouses and polytunnels, Specialty at about four feet wide for more open vineyards and orchards, and Vineyard at just over three feet wide for narrow rows. Four-cylinder power from 75 to 115 horsepower, a curved chassis that turns tighter, and hydraulic flow that runs mowers, pruners and trimmers without complaining about it.
Seven models across three configurations. Click any model below to see full specs.
MF 3GE.75 | Ground Effect | 75 hp | platform
Model
MF 3GE.75
Type
Ground Effect
Operator Environment
Platform
Max Power @ 2,000 rpm
75 hp
Engine
3.4 L, 4-cylinder diesel
Fuel Tank Capacity
19.6 gal. (74.2 L)
Standard Transmission
24F/24R Synchro Shuttle
Optional Transmission
24F/12R powershuttle with speed shift
Lower Links
Cat. 2 adjustable hook end
Maximum Lift Capacity at Link End
4,409.2 lbs. (2,000 kg)
Hydraulic System
Open center
Steering Flow
7.87 gpm
Implement Flow
17.64 gpm
Emission Compliance
Stage V
Aspiration
Turbocharged, air cooled
MF 3GE.95 | Ground Effect | 95 hp | platform
Model
MF 3GE.95
Type
Ground Effect
Operator Environment
Platform
Max Power @ 2,000 rpm
95 hp
Engine
3.6 L, 4-cylinder diesel
Fuel Tank Capacity
19.6 gal. (74.2 L)
Standard Transmission
24F/24R Synchro Shuttle
Optional Transmission
24F/12R powershuttle with speed shift
Lower Links
Cat. 2 adjustable hook end
Maximum Lift Capacity at Link End
4,409.2 lbs. (2,000 kg)
Hydraulic System
Open center
Steering Flow
7.87 gpm
Implement Flow
17.64 gpm
Emission Compliance
Stage V
Aspiration
Turbocharged, air cooled
MF 3GE.105 | Ground Effect | 105 hp | platform
Model
MF 3GE.105
Type
Ground Effect
Operator Environment
Platform
Max Power @ 2,000 rpm
105 hp
Engine
3.6 L, 4-cylinder diesel
Fuel Tank Capacity
19.6 gal. (74.2 L)
Standard Transmission
24F/24R Synchro Shuttle
Optional Transmission
24F/12R powershuttle with speed shift
Lower Links
Cat. 2 adjustable hook end
Maximum Lift Capacity at Link End
4,409.2 lbs. (2,000 kg)
Hydraulic System
Open center
Steering Flow
7.87 gpm
Implement Flow
17.64 gpm
Emission Compliance
Stage V
Aspiration
Turbocharged, air cooled
MF 3SP.75 | Specialty | 75 hp | cab
Model
MF 3SP.75
Type
Specialty
Operator Environment
Cab
Max Power @ 2,000 rpm
75 hp
Engine
3.4 L, 4-cylinder diesel
Fuel Tank Capacity
26.41 gal. (100 L)
Standard Transmission
24F/24R Synchro Shuttle
Optional Transmission
24F/12R powershuttle with speed shift
Lower Links
Cat. 1/2 adjustable ball end
Maximum Lift Capacity at Link End
5,511.5 lbs. (2,500 kg)
Hydraulic System
Open center
Steering Flow
7.87 gpm
Implement Flow
17.64 gpm
Emission Compliance
Stage V
Aspiration
Turbocharged, air cooled
MF 3SP.95 | Specialty | 95 hp | cab
Model
MF 3SP.95
Type
Specialty
Operator Environment
Cab
Max Power @ 2,000 rpm
95 hp
Engine
3.6 L, 4-cylinder diesel
Fuel Tank Capacity
26.41 gal. (100 L)
Standard Transmission
30F/30R Synchro Shuttle
Optional Transmission
30F/15R powershuttle with speed shift
Lower Links
Cat. 1/2 adjustable ball end
Maximum Lift Capacity at Link End
5,511.5 lbs. (2,500 kg)
Hydraulic System
Open center
Steering Flow
7.87 gpm
Implement Flow
17.64 gpm
Emission Compliance
Stage V
Aspiration
Turbocharged, air cooled
MF 3SP.115 | Specialty | 115 hp | cab
Model
MF 3SP.115
Type
Specialty
Operator Environment
Cab
Max Power @ 2,000 rpm
115 hp
Engine
3.6 L, 4-cylinder diesel
Fuel Tank Capacity
26.41 gal. (100 L)
Standard Transmission
30F/30R Synchro Shuttle
Optional Transmission
30F/15R powershuttle with speed shift
Lower Links
Cat. 1/2 adjustable ball end
Maximum Lift Capacity at Link End
5,511.5 lbs. (2,500 kg)
Hydraulic System
Open center
Steering Flow
7.87 gpm
Implement Flow
17.64 gpm
Emission Compliance
Stage V
Aspiration
Turbocharged, air cooled
MF 3VI.95 | Vineyard | 95 hp | cab
Model
MF 3VI.95
Type
Vineyard
Operator Environment
Cab
Max Power @ 2,000 rpm
95 hp
Engine
3.6 L, 4-cylinder diesel
Fuel Tank Capacity
19.6 gal. (74.2 L)
Standard Transmission
30F/30R Synchro Shuttle
Optional Transmission
30F/15R powershuttle with speed shift
Lower Links
Cat. 1/2 adjustable ball end
Maximum Lift Capacity at Link End
5,511.5 lbs. (2,500 kg)
Hydraulic System
Open center
Steering Flow
7.87 gpm
Implement Flow
17.64 gpm
Emission Compliance
Stage V
Aspiration
Turbocharged, air cooled
Condition
New
Specifications
Models Available
7 across 3 configurations
Configurations
Ground Effect (GE), Specialty (SP), Vineyard (VI)
Max Power @ 2,000 rpm
75 to 115 hp
Engine
3.4 L 4-cylinder diesel (75 hp) or 3.6 L 4-cylinder diesel (95 hp and above)
Emission Compliance
Stage V
Aspiration
Turbocharged, air cooled
Operator Environment
Cab on SP and VI; platform on GE
Approximate Width
GE just over 4 ft.; SP 4 ft.; VI just over 3 ft.
Transmissions
24F/24R or 30F/30R Synchro Shuttle, by model
Optional Transmissions
24F/12R or 30F/15R powershuttle with speed shift
Lower Links
Cat. 1/2 adjustable ball end (SP, VI); Cat. 2 adjustable hook end (GE)
Maximum Lift Capacity at Link End
5,511.5 lbs. (2,500 kg) on SP and VI; 4,409.2 lbs. (2,000 kg) on GE
Hydraulic System
Open center
Steering Flow
7.87 gpm
Implement Flow
17.64 gpm
Fuel Tank Capacity
26.41 gal. (100 L) on SP; 19.6 gal. (74.2 L) on GE and VI
ROPS
Foldable ROPS frame on Ground Effect models
Features

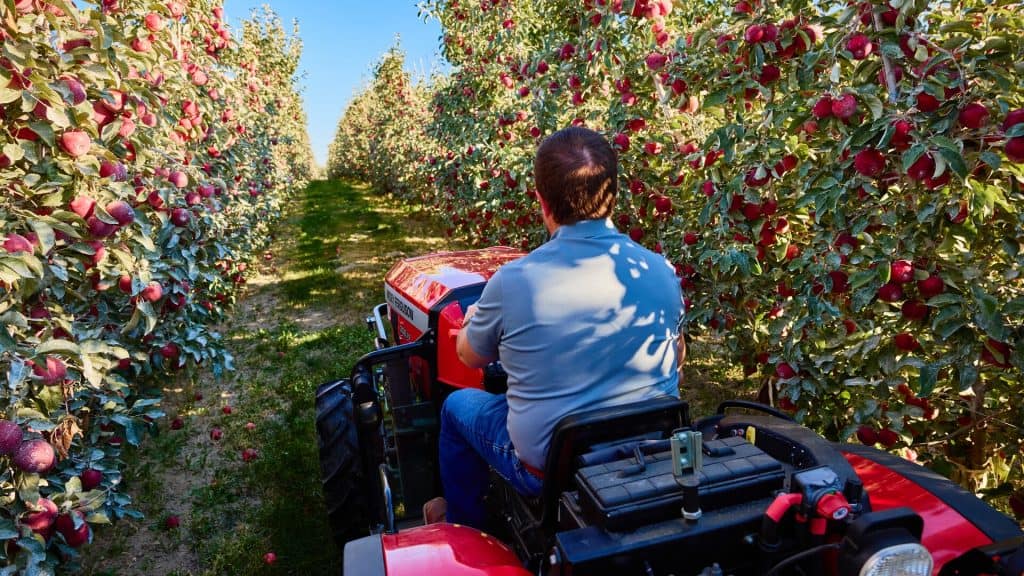

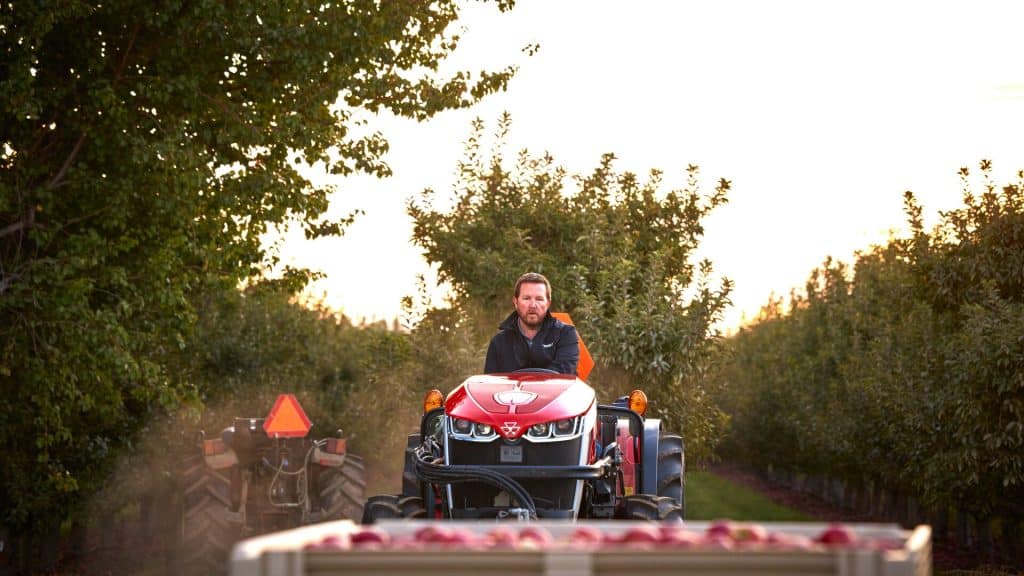

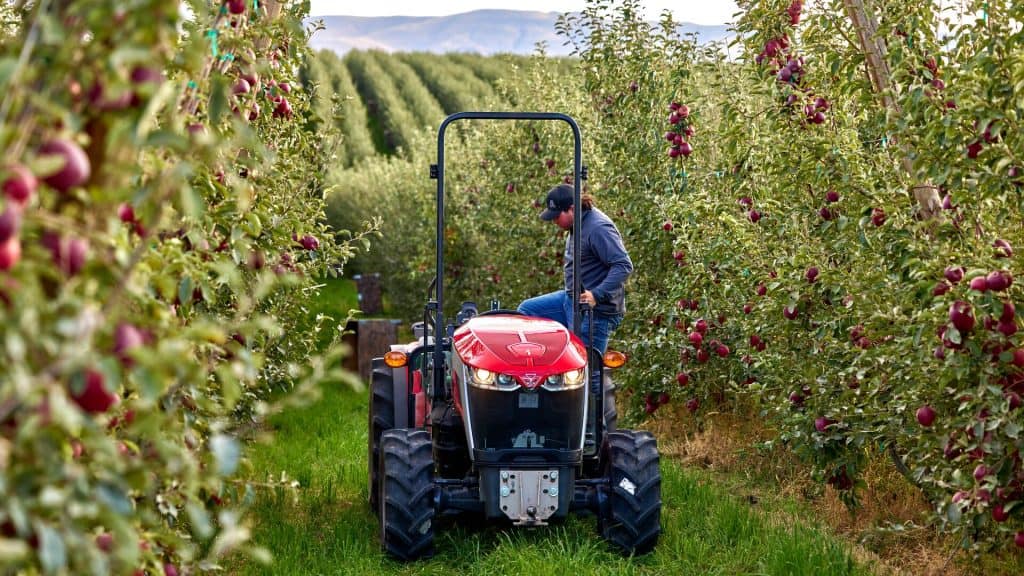

Ground Effect (GE) — Get Under It
Low Profile by Design
Featuring a low-profile design along with a comfortable operator platform, the MF 3GE is an ideal solution for operations that need low clearance under trees or the ability to fit in greenhouses or polytunnels.
Just Over Four Feet Wide
At just over 4 feet wide, with horsepower options from 75 to 105, the Ground Effect option lets you work in areas where other tractors simply cannot go.
Excellent Access to Low and Confined Areas
Compact dimensions and a foldable ROPS frame get you into the tight spots. Refer to your manual for correct operation of the foldable ROPS and follow all safety instructions.
Superb Visibility
The aftertreatment system is perfectly integrated under the low-profile hood, so nothing blocks your view.
Lower Cost of Ownership
The MF 3GE gives you the power and torque to get the job done right, at a lower total cost of ownership than other options in its class.

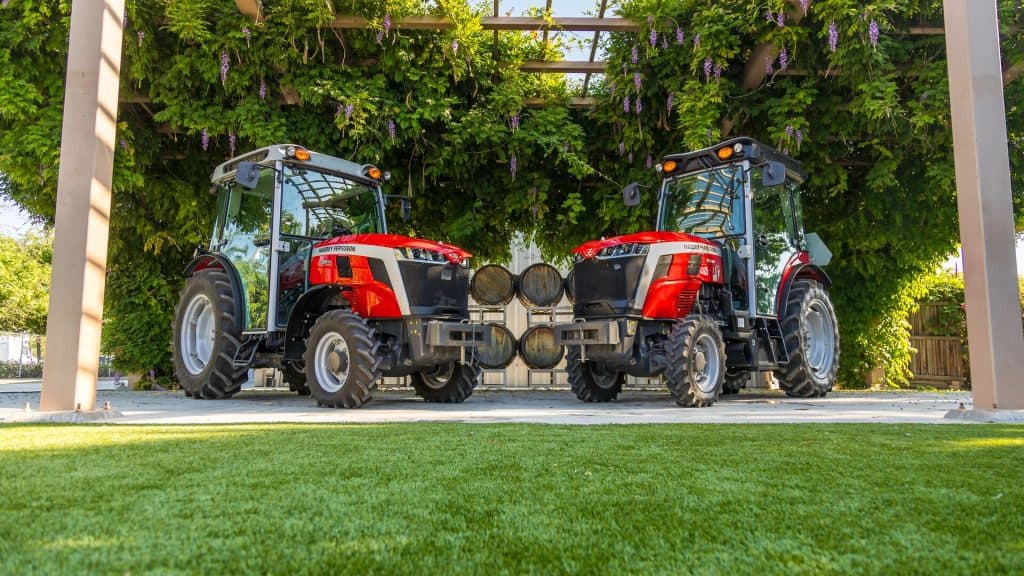

Specialty (SP) and Vineyard (VI) — Built for the Rows
Tailor-Made for Your Operation
Some of the best visibility on the market, a robust cab environment, a narrow turning radius and available power shuttle transmission make the MF 3SP and 3VI ideal for vineyard operations.

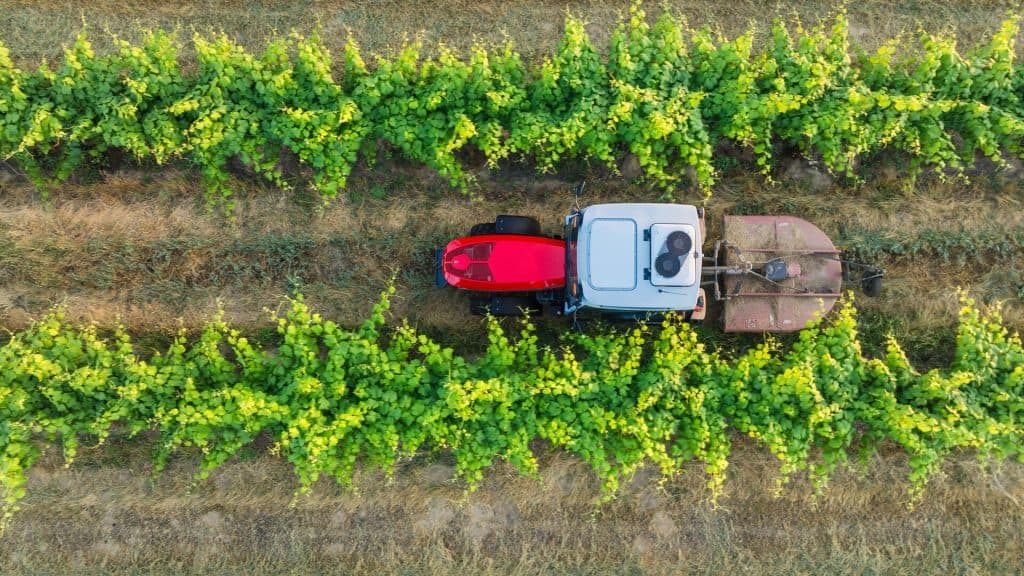

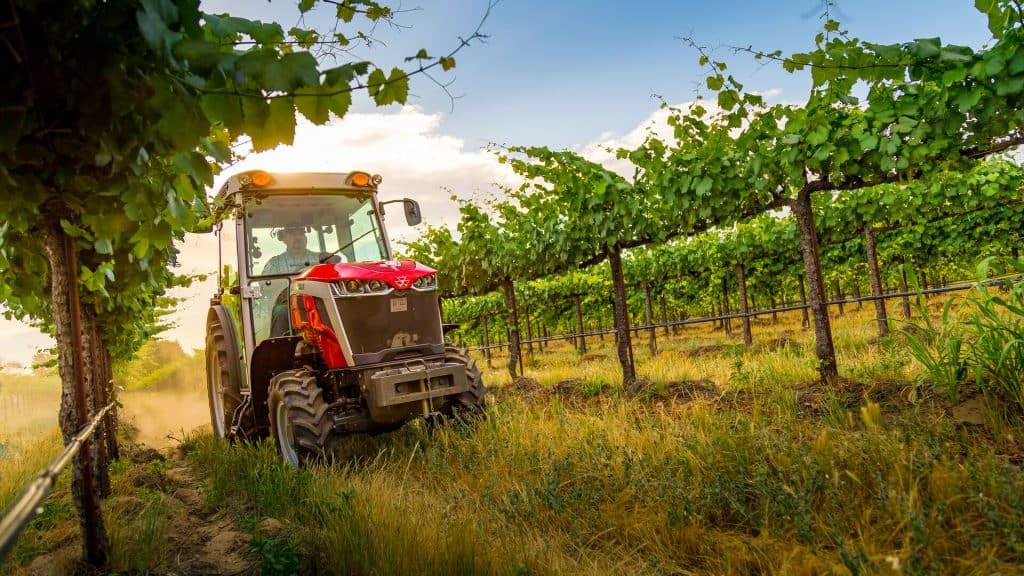

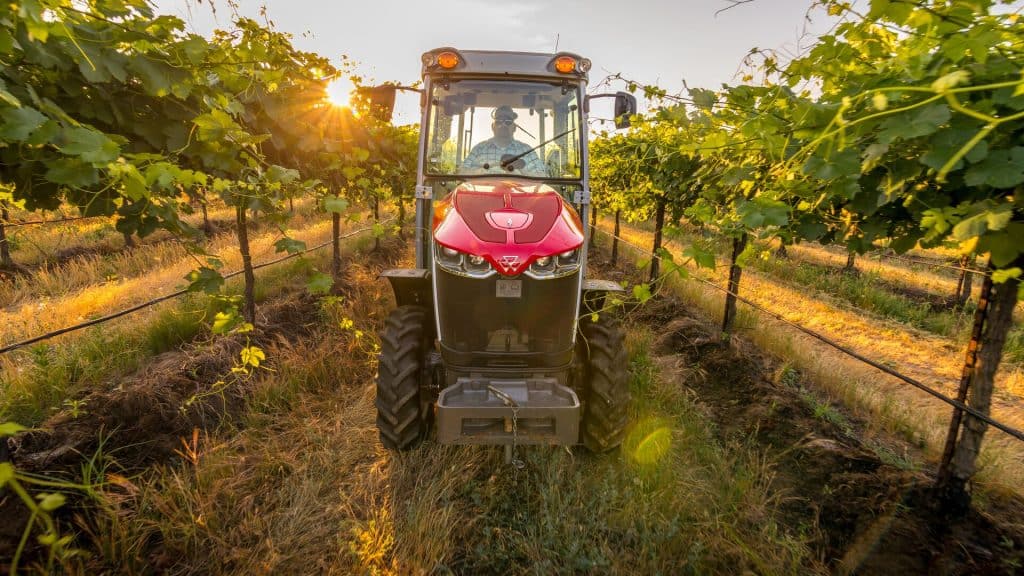

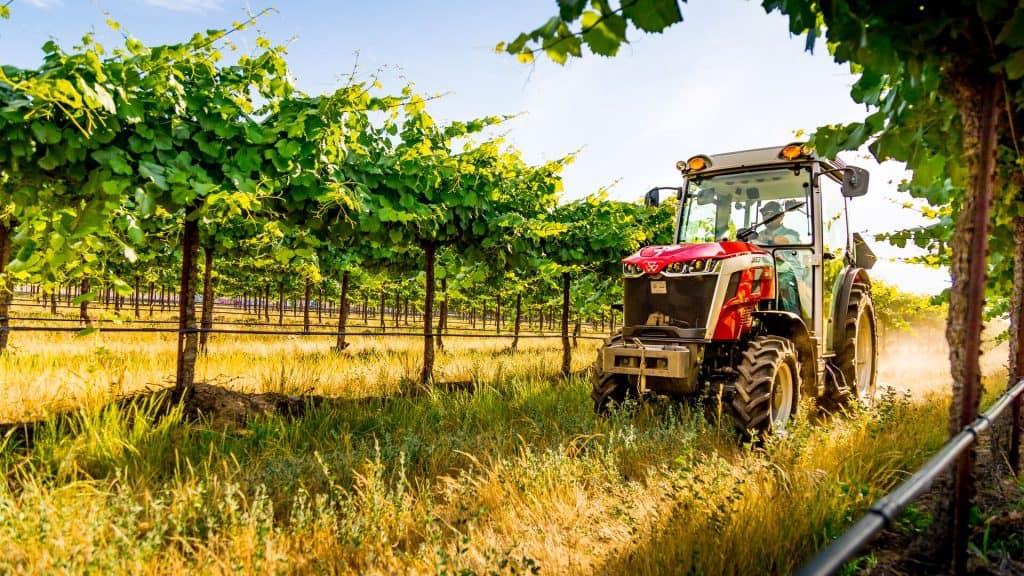

SP — Four Feet Wide
At a width of 4 feet, the SP or Specialty option is your partner for working in more open vineyards.

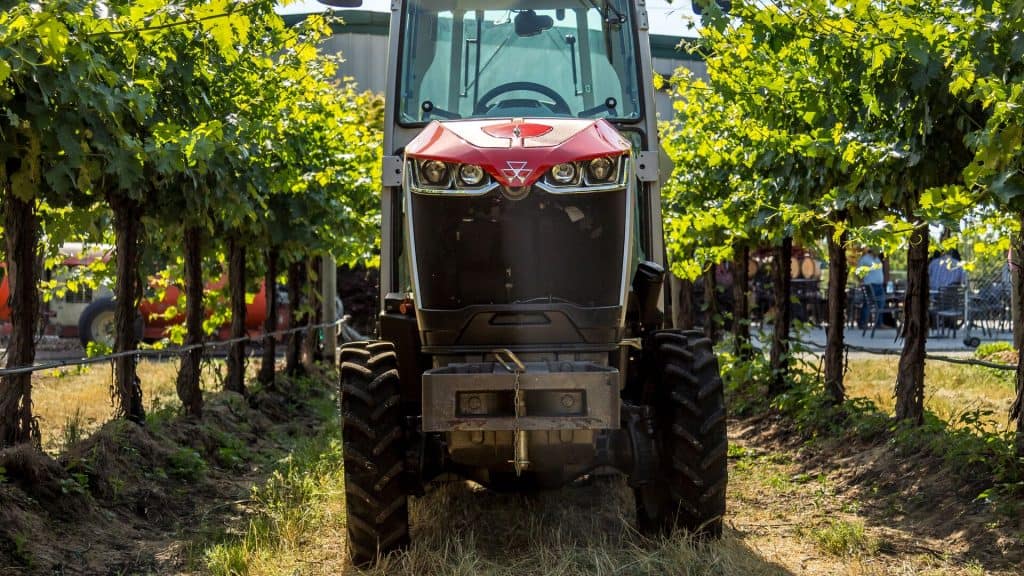

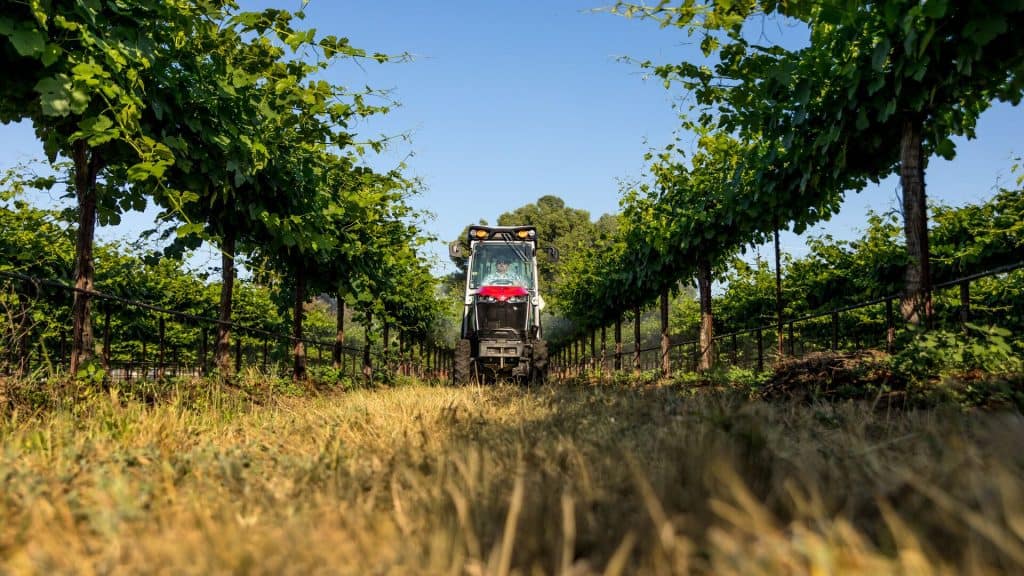

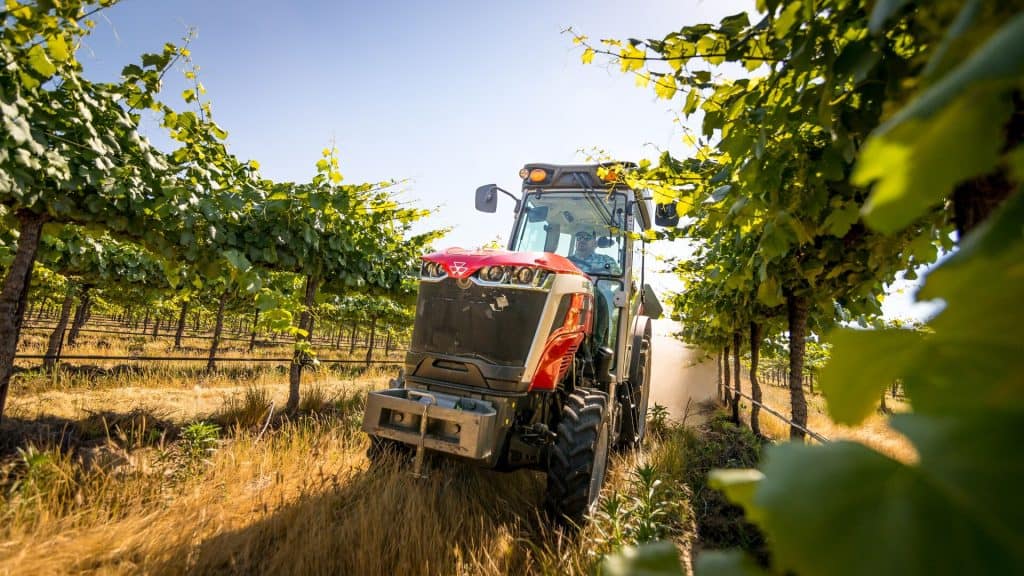

VI — Just Over Three Feet Wide
At just over 3 feet wide and coming in at 95 hp, the VI or Vineyard option fits perfectly in narrow vineyard rows.
Superb Visibility
A compact aftertreatment system, horizontal exhaust and low hood height give you unmatched visibility and maneuverability.
Power and Performance
Stage V Four-Cylinder Power
Horsepower ranges from 75 to 115 with a Stage V-compliant 4-cylinder engine — 3.4-liter on the 75 hp models and 3.6-liter above that, turbocharged and air cooled.
Greater Working Efficiency
An increase in gross vehicle weight by up to 880 lbs. allows the use of larger, higher-capacity implements.
Powerful Hydraulic Flow
Open center hydraulics deliver 7.87 gpm steering flow and 17.64 gpm implement flow, so loaders, pruners and trimmers run efficiently.
Precise and Straightforward Linkage
Linkage control is available with standard 5,500 lbs. lift capacity on SP and VI models, and up to 4,400 lbs. on Ground Effect models.
Maneuverability
Curved and Sculpted Chassis
The curved chassis on SP and VI models and the sculpted chassis on Ground Effect models both deliver tighter turns where you need them.
Narrow Turning Radius
A narrow turning radius means fewer passes wasted at the headland and less damage to what you are working around.
Transmission Choices
Wide Range of Options
Options range from a straightforward mechanical transmission up to a higher-specification offering equipped with power shuttle and speed shift.
Synchro Shuttle
24F/24R Synchro Shuttle on the 75 hp and Ground Effect models, 30F/30R Synchro Shuttle on the 3VI.95, 3SP.95 and 3SP.115.
Optional Powershuttle
24F/12R or 30F/15R powershuttle with speed shift, depending on model.
Higher Productivity
An extra transmission speed plus a new brake-to-neutral feature enhance operations.

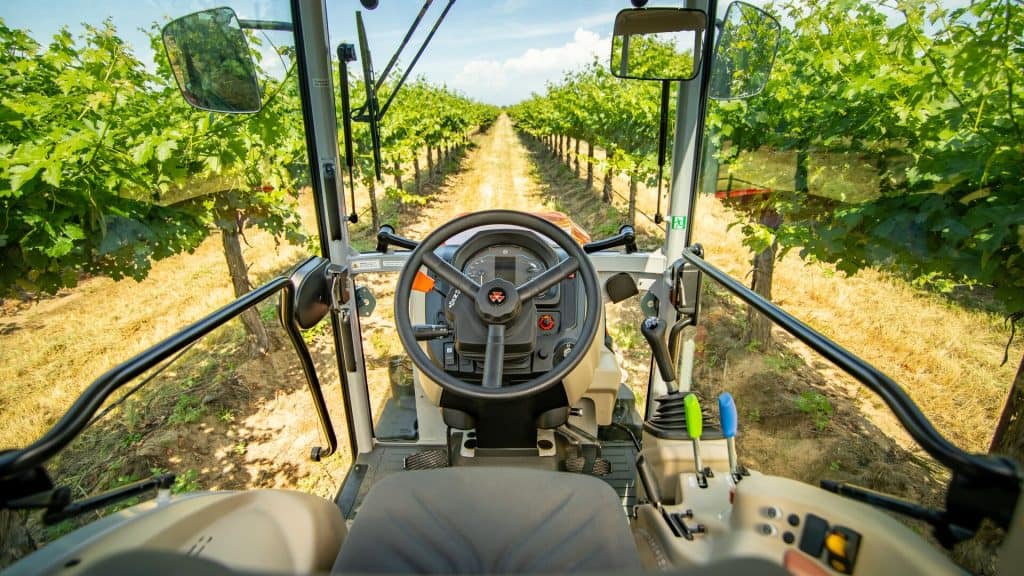

Cab, Controls and Comfort
Increased Comfort and Safety
A spacious semi-flat-floor cabin gives you additional headroom and an enhanced control layout.
Intuitive Modern Dashboard
A simple, clear color display shows operating information and settings at a glance.
Convenient Operation
Easy-to-use, ergonomically designed and placed controls.
Work in All Conditions
Optional LED lights keep you working until the job is done.
Greater Stability, Reduced Downtime
The fuel tank is located under the cab, with capacity up to 19.6 gallons on VI and Ground Effect models and 26.41 gallons on SP models.
New Hood Styling
The design includes a saber stripe and new numbering to match the Massey Ferguson product portfolio.
