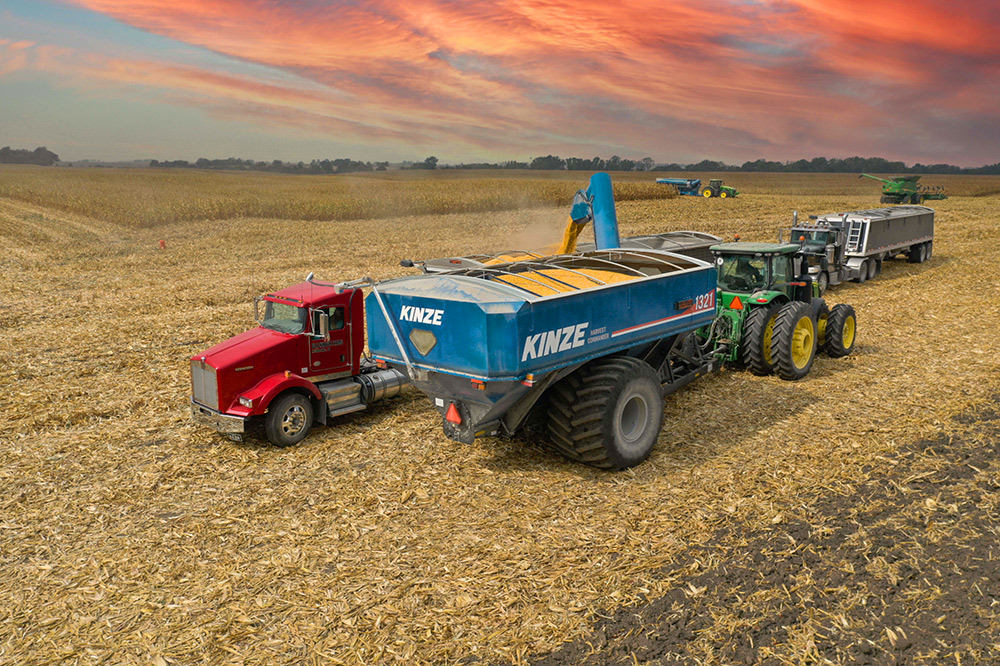

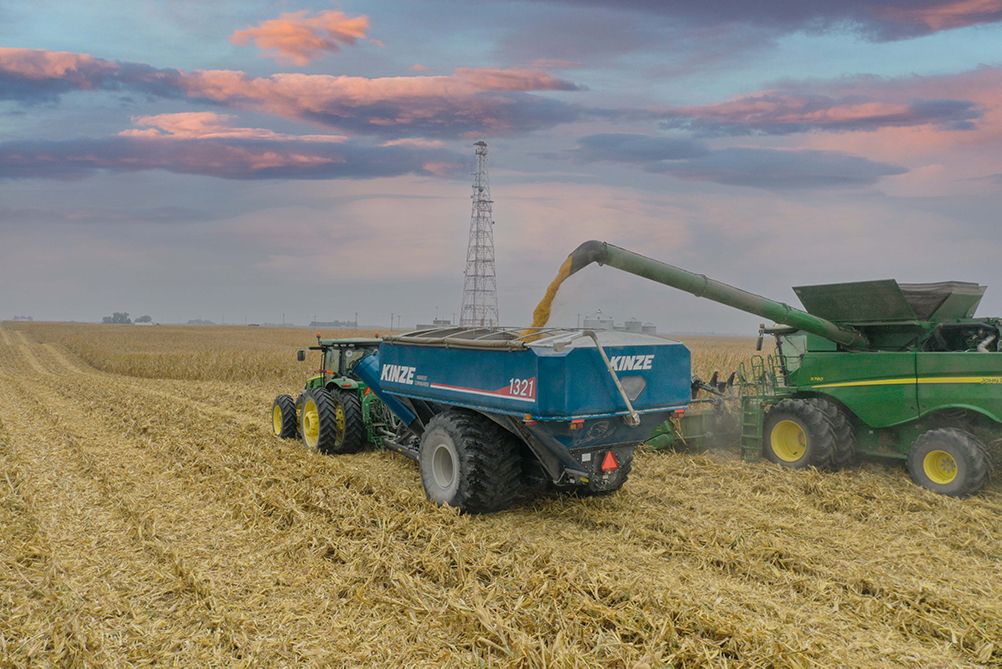

Kinze 1321 Dual-Auger Grain Cart

Description

The Kinze 1321 dual auger grain cart brings reliable capacity to operations of any size. Tracked units hold 1,300 bushels, while tire-equipped units carry 1,250 bushels. Camso tracks add self-tensioning belts, pivoting bogie wheels, and oil bath hubs for low maintenance. A clean corner auger design gives every driver a clear view of the combine spout. One joystick handles auger tilt, spout tip, horizontal auger, and flow gate together. Unload speeds reach 750 bushels per minute regardless of undercarriage choice. Tracked carts see a 4.4% yield increase over tire-equipped carts in university testing.

Compare Models

Two undercarriage configurations to choose from. Click any model below to see full specs.

1321 – Tracks | 1,300 Bu. | 14 PSI Ground Contact

Model	1321 – Tracks.
Heaped Capacity	1,300 Bu.
Undercarriage	36″ x 100″ Camso Tracks (Optional).
Ground Contact Pressure	14 PSI.
Condition	New.
Type	Corner Dual Auger Grain Cart.
Unload Speed (Maximum)	750 Bu./Min.
Vertical Auger	22″ Diameter Flighting, 24″ Diameter Tube.
Horizontal Auger	20″ Diameter Flighting, 22″ Diameter Tube.
Gearbox	Bevel & Spur Gears (2:1 Ratio).
Drive Belts	Two 4-Band Multi-Strand V-Belts.
PTO	1-3/4″ Diameter, 20 Spline, 1000 RPM.
Scale Package	5-Point (Standard).
Tarp	Manual (Standard) or Electric (Optional).
Tractor Horsepower (Minimum)	300 HP.
Tractor Hydraulics (Minimum)	2 SCVs; 2,320 System PSI.
Warranty	2-Year Limited (Industry Exclusive).
Width (Overall)	13’0″.
Length (Overall)	32’0″.
Height (Overall)	12’5″.
Weight (Empty)	31,000 Lbs.
Hitch Weight (Empty)	3,950 Lbs.
Hitch Weight (Loaded)	6,280 Lbs.

1321 – Flotation Tires | 1,250 Bu. | 22 PSI Ground Contact

Model	1321 – Flotation Tires.
Heaped Capacity	1,250 Bu.
Undercarriage	Flotation Tires (1250/50R32 CFO, Optional).
Ground Contact Pressure	22 PSI.
Condition	New.
Type	Corner Dual Auger Grain Cart.
Unload Speed (Maximum)	750 Bu./Min.
Vertical Auger	22″ Diameter Flighting, 24″ Diameter Tube.
Horizontal Auger	20″ Diameter Flighting, 22″ Diameter Tube.
Gearbox	Bevel & Spur Gears (2:1 Ratio).
Drive Belts	Two 4-Band Multi-Strand V-Belts.
PTO	1-3/4″ Diameter, 20 Spline, 1000 RPM.
Scale Package	5-Point (Standard).
Tarp	Manual (Standard) or Electric (Optional).
Tractor Horsepower (Minimum)	300 HP.
Tractor Hydraulics (Minimum)	2 SCVs; 2,320 System PSI.
Warranty	2-Year Limited (Industry Exclusive).
Width (Overall)	13’10”.
Length (Overall)	32’0″.
Height (Overall)	12’3″.
Weight (Empty)	24,900 Lbs.
Hitch Weight (Empty)	3,950 Lbs.
Hitch Weight (Loaded)	6,280 Lbs.

Condition	New
Model	1321 Dual-Auger Grain Cart

Features

Auger & Unloading

Clean Corner Dual Auger Design.
This layout gives you a clear line of sight to the combine spout.

Joystick Auger Control.
One joystick handles auger tilt, spout tip, horizontal auger, and flow gate.

Aligned Tip Spout.
A refined spout delivers smoother flow and more precise unloading.

Horizontal Auger Cleanout Doors.
Cleanout doors speed up crop changeovers between fields.

Undercarriage & Mobility

Tracks or Flotation Tires.
Choose Camso tracks or flotation tires to match your field conditions.

Self-Tensioning Camso Tracks.
Pivoting bogie wheels and oil bath hubs keep maintenance low.

4.4% Yield Increase With Tracks.
An Ohio State study found tracked carts pay back their added cost within two years.

Low-Profile Short Side Design.
A shorter profile handles rolling terrain with ease.

Thickened Edge Auger Design.
Thicker auger edges extend wear life by 50 percent.

Technology & Serviceability

Scale-Tec POINT Scale Indicator.
This indicator pairs Bluetooth connectivity with ISOBUS compatibility for accurate readouts.

Remote Scale Readout.
An optional readout lets the combine operator monitor weight in real time.

Central Grease Bank.
One grease bank lubricates every point from ground level.

Vented Grain Tank.
A vented tank improves airflow during loading and unloading.

Tool-Less Inspection Cover Access.
Open the inspection cover and cleanout without reaching for tools.

Hydraulic Hose Cradle.
Color-coded hose ends and a cradle simplify tractor hookup.
