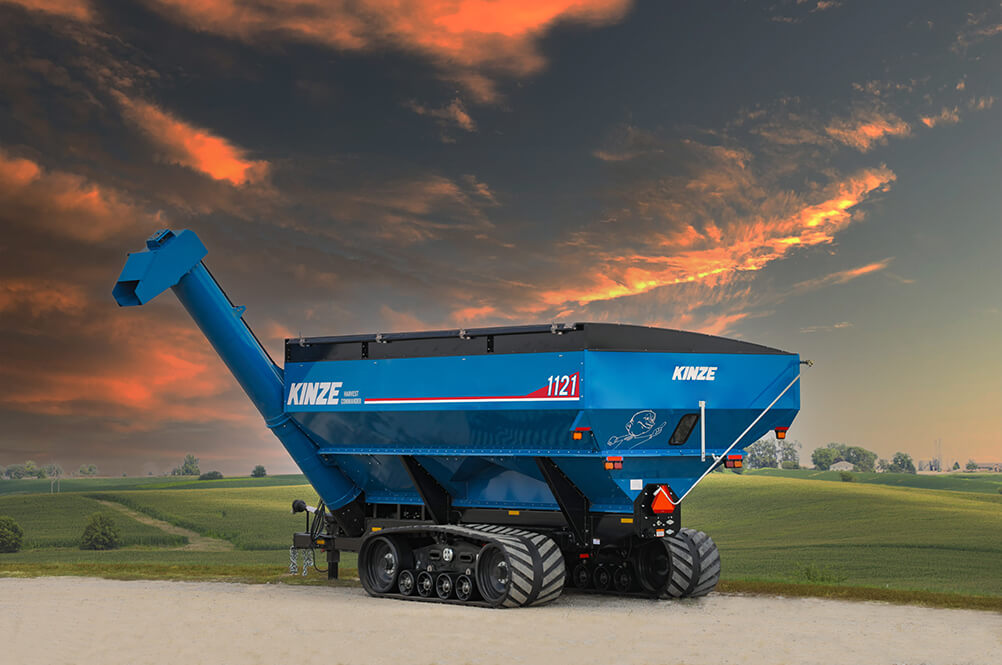

Kinze 1121 Dual-Auger Grain Cart

Call Now Get A Quote Schedule A Visit Value Your Trade Apply for Financing

Description

Kinze built the 1121 dual auger grain cart on the proven design of the legendary 1050. This cart offers three undercarriage choices: tracks, flotation tires, or row crop tires. Row crop tires make farm-to-farm transport especially easy. Heaped capacity reaches 1,125 bushels on tracks and 1,100 bushels on tires. An on-demand horizontal auger speeds up vertical auger clean-out. A low-profile, short-side design handles rolling terrain with ease. Auger edges are thickened for 50 percent longer wear life.

Compare Models

Three undercarriage configurations to choose from. Click any model below to see full specs.

1121 – Tracks | 1,125 Bu. | 12 PSI Ground Contact
Model 1121 – Tracks.
Heaped Capacity 1,125 Bu.
Undercarriage 36″ x 100″ Tracks (Standard).
Ground Contact Pressure 12 PSI.
Condition New.
Type Corner Dual Auger Grain Cart.
Unload Speed (Maximum) 550 Bu./Min.
Vertical Auger 20″ Diameter Flighting, 22″ Diameter Tube.
Horizontal Auger 20″ Diameter Flighting, 22″ Diameter Tube.
Gearbox 90° Bevel Gears (3.5″-4″ Pitch Cut, 2:1 Ratio).
Drive Belts Two 4-Band Multi-Strand V-Belts.
Drive Sheaves 8-Groove, 7-1/2″ Diameter Drive / 15″ Diameter Driven.
PTO 1-3/4″ Diameter, 20 Spline, 1000 RPM.
Scale Package 3-Point (Standard).
Tarp Manual (Standard).
Tractor Horsepower (Minimum) 250 HP.
Tractor Hydraulics (Minimum) 3 SCVs; 2,320 System PSI.
Warranty 2-Year Limited (Industry Exclusive).
Width (Overall) 12’0″.
Length (Overall) 30’10”.
Height (Short Side / High Side) 10’11” / 12’0″.
Weight (Empty) 28,040 Lbs.
Hitch Weight (Empty) 3,820 Lbs.
Hitch Weight (Loaded) 6,260 Lbs.
1121 – Flotation Tires | 1,100 Bu. | 23 PSI Ground Contact
Model 1121 – Flotation Tires.
Heaped Capacity 1,100 Bu.
Undercarriage Flotation Tires (1250/45R32, Optional).
Ground Contact Pressure 23 PSI.
Condition New.
Type Corner Dual Auger Grain Cart.
Unload Speed (Maximum) 550 Bu./Min.
Vertical Auger 20″ Diameter Flighting, 22″ Diameter Tube.
Horizontal Auger 20″ Diameter Flighting, 22″ Diameter Tube.
Gearbox 90° Bevel Gears (3.5″-4″ Pitch Cut, 2:1 Ratio).
Drive Belts Two 4-Band Multi-Strand V-Belts.
Drive Sheaves 8-Groove, 7-1/2″ Diameter Drive / 15″ Diameter Driven.
PTO 1-3/4″ Diameter, 20 Spline, 1000 RPM.
Scale Package 3-Point (Standard).
Tarp Manual (Standard).
Tractor Horsepower (Minimum) 250 HP.
Tractor Hydraulics (Minimum) 3 SCVs; 2,320 System PSI.
Warranty 2-Year Limited (Industry Exclusive).
Width (Overall) 12’1″.
Length (Overall) 30’10”.
Height (Short Side / High Side) 11’0″ / 12’1″.
Weight (Empty) 20,880 Lbs.
Hitch Weight (Empty) 3,820 Lbs.
Hitch Weight (Loaded) 6,260 Lbs.
1121 – Row Crop Tires | 1,100 Bu. | 25 PSI Ground Contact
Model 1121 – Row Crop Tires.
Heaped Capacity 1,100 Bu.
Undercarriage Row Crop Tires (480/80R42, Optional).
Ground Contact Pressure 25 PSI.
Condition New.
Type Corner Dual Auger Grain Cart.
Unload Speed (Maximum) 550 Bu./Min.
Vertical Auger 20″ Diameter Flighting, 22″ Diameter Tube.
Horizontal Auger 20″ Diameter Flighting, 22″ Diameter Tube.
Gearbox 90° Bevel Gears (3.5″-4″ Pitch Cut, 2:1 Ratio).
Drive Belts Two 4-Band Multi-Strand V-Belts.
Drive Sheaves 8-Groove, 7-1/2″ Diameter Drive / 15″ Diameter Driven.
PTO 1-3/4″ Diameter, 20 Spline, 1000 RPM.
Scale Package 3-Point (Standard).
Tarp Manual (Standard).
Tractor Horsepower (Minimum) 250 HP.
Tractor Hydraulics (Minimum) 3 SCVs; 2,320 System PSI.
Warranty 2-Year Limited (Industry Exclusive).
Width (Overall) 12’0″.
Length (Overall) 30’10”.
Height (Short Side / High Side) 11’0″ / 12’1″.
Weight (Empty) 21,440 Lbs.
Hitch Weight (Empty) 3,820 Lbs.
Hitch Weight (Loaded) 6,260 Lbs.
Condition New
Model 1121 Dual-Auger Grain Cart

Features

Auger & Unloading

Hydraulically Adjustable Flow Gate.
Adjust grain flow right from the tractor cab.

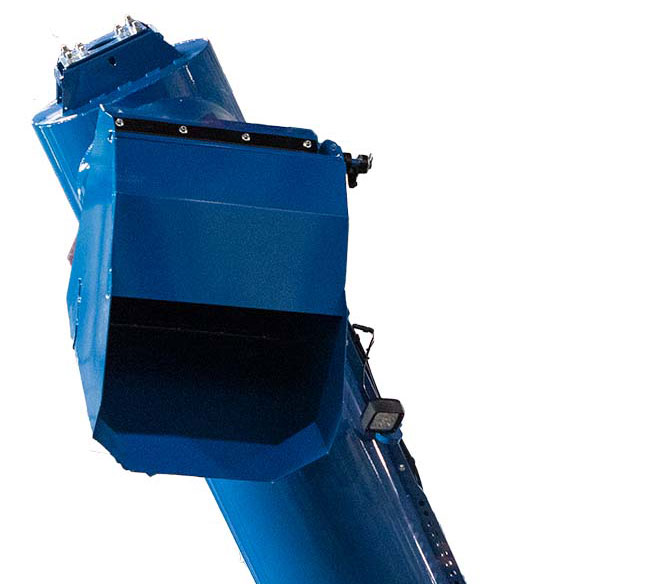

Tip Spout Control.
Control the spout tip using the tractor SCV for precise unloading.

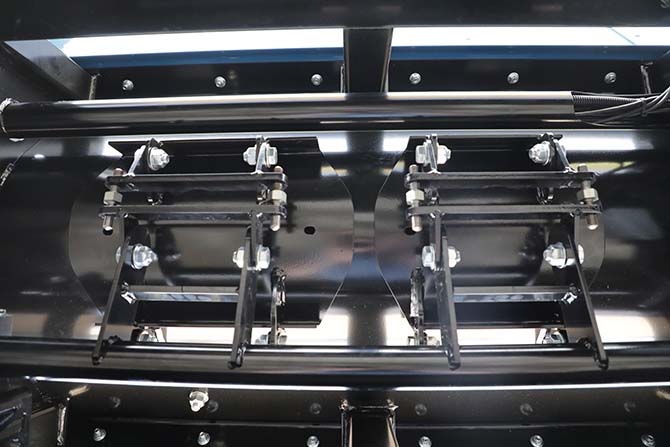

Horizontal Auger Cleanout Doors.
Cleanout doors speed up crop changeovers between fields.

Torque-Limiting Driveline Clutch.
An auto-reset overrunning clutch keeps driveline maintenance low.

Undercarriage & Mobility

Three Undercarriage Options.
Choose tracks, flotation tires, or row crop tires for your operation.

Row Crop Tires for Easy Transport.
480/80 R42 dual tires simplify farm-to-farm road transport.

4.4% Yield Increase With Tracks.
An Ohio State study found tracked carts pay back their added cost within two years.

Low-Profile Short Side Design.
A shorter profile handles rolling terrain with ease.

Thickened Edge Auger Design.
Thicker auger edges extend wear life by 50 percent.

Technology & Serviceability

Scale-Tec POINT Scale Indicator.
This indicator pairs Bluetooth connectivity with ISOBUS compatibility for accurate
readouts.

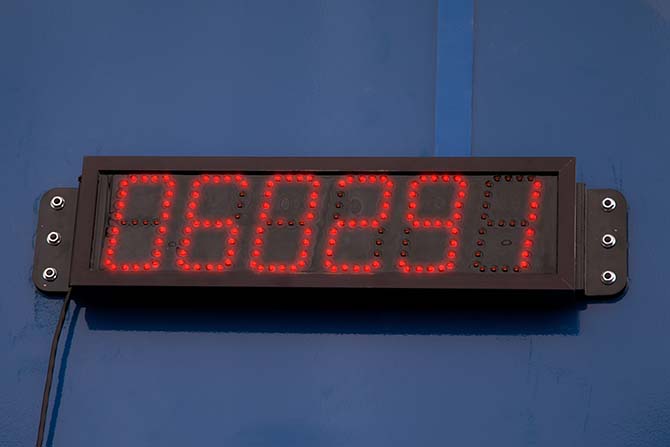

Remote Scale Readout.
An optional readout lets the combine operator monitor weight in real time.

LED Lighting.
Rear, spout, and hopper LED lighting improve visibility during harvest.

Vented Grain Tank.
A vented tank improves airflow during loading and unloading.

Tool-Less Inspection Cover Access.
Open the inspection cover and cleanout without reaching for tools.

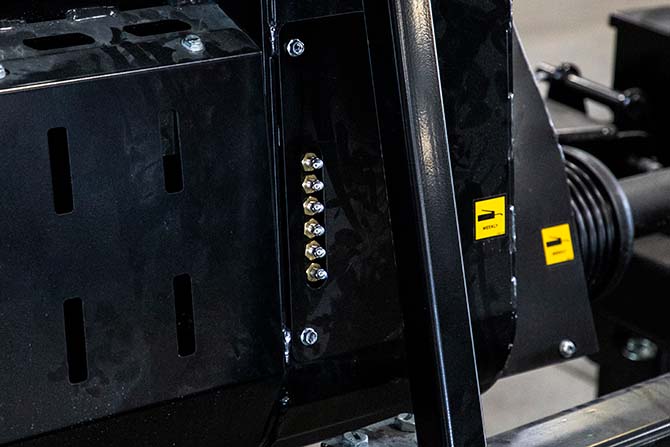

Central Grease Bank.
One grease bank lubricates every point from ground level.

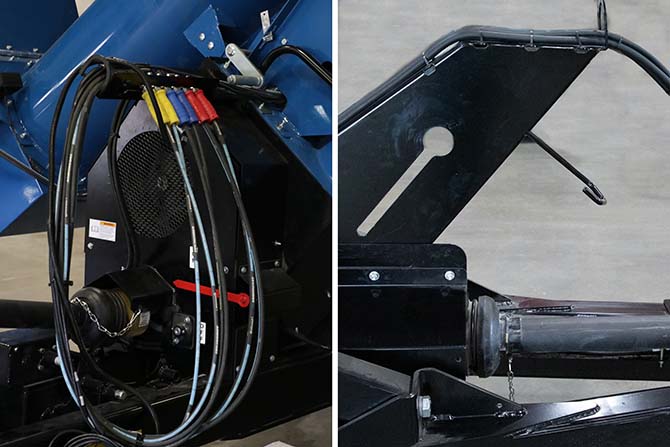

Hydraulic Hose Cradle.
Color-coded hose ends and a cradle simplify tractor hookup.
