Kinze 1051 Single Auger Cart

Description

The Kinze 1051 single auger grain cart delivers dependable grain handling at a lower cost of ownership. Its clean corner auger design gives every driver unmatched line-of-sight visibility. A driveline free of shear bolts keeps this cart running quietly through the whole harvest. An easy-to-operate pit dump door speeds up unloading and crop changeover cleanout. Heaped capacity reaches 1,050 bushels on tracks or flotation tires. Optional tracks reduce compaction and improve traction in wet field conditions. Auger edges are thickened for 50 percent longer wear life. Diamond tread and lug tread tire options match ground conditions to your operation.

Compare Models

Two undercarriage configurations to choose from. Click any model below to see full specs.

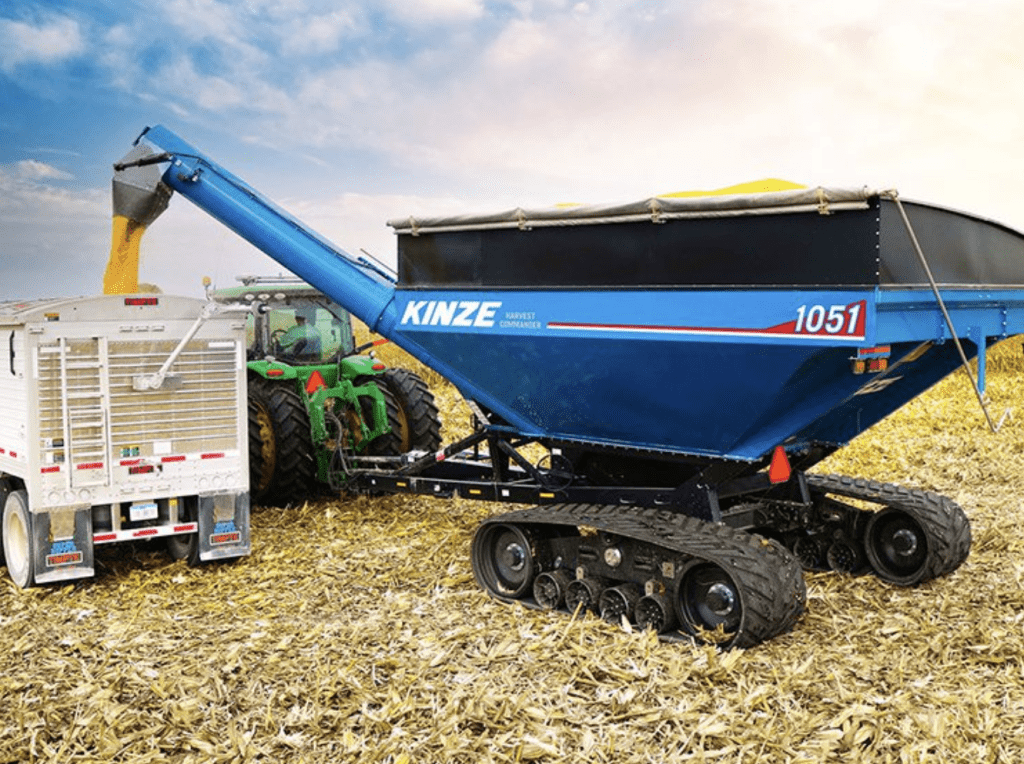

1051 – Tracks | 1,050 Bu. | 11 PSI Ground Contact

Model	1051 – Tracks.
Heaped Capacity	1,050 Bu.
Undercarriage	36″ x 100″ Tracks (Standard).
Ground Contact Pressure	11 PSI.
Condition	New.
Type	Corner Single Auger Grain Cart.
Unload Speed (Maximum)	475 Bu./Min.
Vertical Auger	20″ Diameter Flighting, 21″ Diameter Tube.
Gearbox	90° Gears (3.5″-4″ Pitch Cut, 2:1 Ratio).
PTO	1-3/4″ Diameter, 20 Spline, 1000 RPM.
Scale Package	5-Point (Optional).
Tarp	Manual (Optional).
Tractor Horsepower (Minimum)	250 HP.
Tractor Hydraulics (Minimum)	3 SCVs; 2,320 System PSI.
Width (Grain Tank)	12’4″.
Length (Grain Tank)	19’4″.
Height (Short Side / High Side)	11’9″ / 12’9″.
Length (Overall)	30’7″.
Weight (Empty)	24,420 Lbs.
Hitch Weight (Empty)	2,500 Lbs.
Hitch Weight (Loaded)	5,000 Lbs.

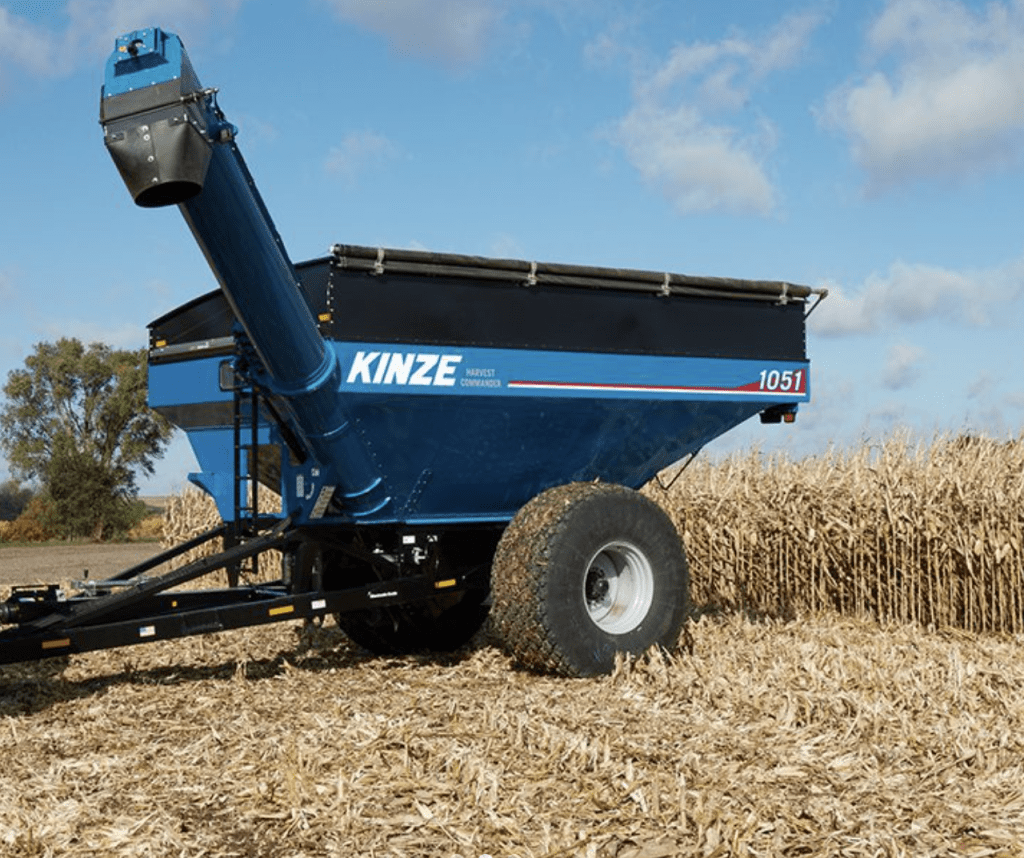

1051 – Flotation Tires | 1,050 Bu. | 23-29 PSI Ground Contact

Model	1051 – Flotation Tires.
Heaped Capacity	1,050 Bu.
Undercarriage	Flotation Tires (VF 1050/50R32 Lug Tread or 900/60R32 Diamond Tread, Optional).
Ground Contact Pressure	23 PSI (Lug Tread) / 29 PSI (Diamond Tread).
Condition	New.
Type	Corner Single Auger Grain Cart.
Unload Speed (Maximum)	475 Bu./Min.
Vertical Auger	20″ Diameter Flighting, 21″ Diameter Tube.
Gearbox	90° Gears (3.5″-4″ Pitch Cut, 2:1 Ratio).
PTO	1-3/4″ Diameter, 20 Spline, 1000 RPM.
Scale Package	5-Point (Optional).
Tarp	Manual (Optional).
Tractor Horsepower (Minimum)	250 HP.
Tractor Hydraulics (Minimum)	3 SCVs; 2,320 System PSI.
Width (Grain Tank)	12’4″.
Length (Grain Tank)	19’4″.
Height (Short Side / High Side)	11’9″ / 12’9″.
Length (Overall)	30’7″.
Weight (Empty)	15,100 Lbs.
Hitch Weight (Empty)	2,500 Lbs.
Hitch Weight (Loaded)	5,000 Lbs.

Condition	New
Model	1051 Single Auger Cart

Features

Auger & Unloading

35-Degree Adjustable Spout.
Direct grain flow precisely during unloading.

Hydraulically Adjustable Flow Gate.
Adjust grain flow right from the tractor cab.

Front Fold Corner Auger.
This clean design gives every driver confident, unmatched line-of-sight visibility.

Pit Dump Door.
This door speeds up pit unloading and complete cart cleanout.

Torque-Limiting Driveline Clutch.
An auto-reset overrunning clutch keeps driveline maintenance low.

Undercarriage & Mobility

Tracks or Flotation Tires.
Choose Camso tracks or flotation tires to match your field conditions.

Self-Tensioning Camso Tracks.
Pivoting bogie wheels and oil bath hubs keep maintenance low.

4.4% Yield Increase With Tracks.
An Ohio State study found tracked carts pay back their added cost within two years.

Diamond or Lug Tread Tires.
Choose the tread pattern that fits your soil and terrain.

20-Bolt Hubs.
Standard hubs keep heavy loads balanced on tire-equipped carts.

Technology & Serviceability

Scale-Tec POINT Scale Indicator.
This indicator pairs Bluetooth connectivity with ISOBUS compatibility for accurate readouts.

Remote Scale Readout.
An optional readout lets the combine operator monitor weight in real time.

Vented Grain Tank.
A vented tank improves airflow during loading and unloading.

Quiet Driveline Operation.
A driveline free of shear bolts keeps uptime high through the whole harvest.

Thickened Edge Auger Design.
Thicker auger edges extend wear life by 50 percent.
