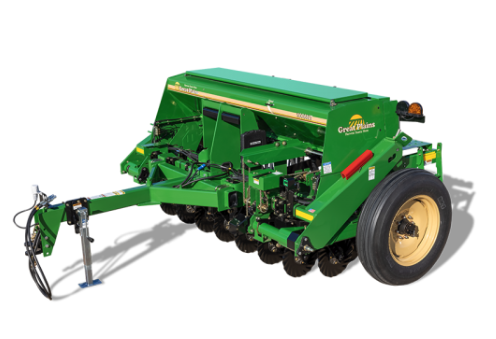

Great Plains 1006NT Drill Base

Call Now Get A Quote Schedule A Visit Value Your Trade Apply for Financing

Description

The 1006NT Drill blends the productivity of a large drill with compact-drill versatility. This 10-foot end wheel no-till drill seeds pasture renovations and food plots with ease. Large end wheels gauge the ground accurately, even across rugged terrain. Inline wheels reduce sideloading on contours, extending the life of every opener. A 4-speed gearbox and calibration crank make seed rate changes quick and simple. Rain-tight lids protect seed and fertilizer in any weather. Choose from multiple box combinations to plant up to three products at once.

Condition New

Specifications

Model 1006NT Drill
Condition New
Type 10' End Wheel No-Till Drill (Pull-Type)
Row Spacing 7.5"
Number of Openers 15
Opener Series 06 Series
Engine HP Requirement 75+
Working Width 10'
Transport Dimensions (W x L x H) 12'7" x 13'10" x 6'7"
Weight (Approx.) 4,300 Lbs.
Main Seed Box Capacity 23.75 Bu.

Features

Opener & Seed Placement

06 Series Opener
The 06 Series opener cuts residue and places seed at the bottom of the trench.

Fluted Seed Cups
Powdered metal fluted seed cups meter seed with outstanding accuracy.

Lead Coulter Options
Choose a Turbo or fluted coulter blade to match your tillage needs.

T-Handle Opener Depth Adjustment
A t-handle adjusts opener depth across 18 different positions.

Seeding Versatility & Calibration

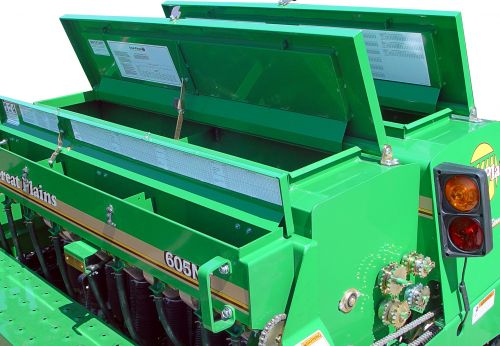

Versatile Box Combinations
Seed up to three products at once from the main, native grass, and small seed boxes.

4-Speed Gearbox
Sealed 4-speed gearboxes make changing seed rates quick and effortless.

Calibration Crank
A calibration crank helps you dial in the exact seeding rate you want.

Great Plains Ag Mobile App
The GreatPlainsAg app walks you through calibration step by step from your phone.

Durability & Transport

End Wheel Design
Large end wheels hold their line on side hills for accurate seed placement.

Lock-Out Hubs
Lock-out hubs disengage drive components to reduce wear during transport.

Folding Tongue
The folding tongue trims transport length by about 40 inches.

Standard Weight Brackets
Weight brackets accept added tractor weights for better penetration in no-till ground.
