Great Plains 00 Series 8′ Min-Till Drill

Call Now Get A Quote Schedule A Visit Value Your Trade Apply for Financing

Description

The 00 Series Min-Till Drill fits food plots, orchards, and vineyards where big drills don’t. Ground-driven meters seed both prepared seedbeds and minimum-tillage ground with ease. 00 Series openers guide seed to the trench bottom through a full-length seed tube. A seed flap holds seed in place, eliminating the bounce common on other drills. Trailing press wheels close the trench and firm seed into the soil. A 4-speed gearbox and calibration crank make seed rate changes quick and simple. Add an optional small seeds box to plant two seed types at the same time.

Compare Models

Two models to choose from. Click any model below to see full specs.

3P500 | 5′ Mounted | 9-11 Openers

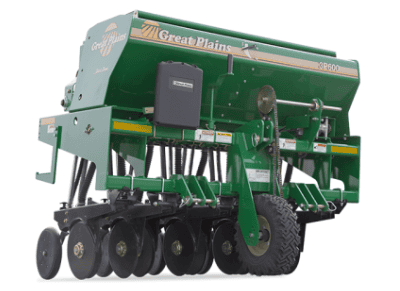

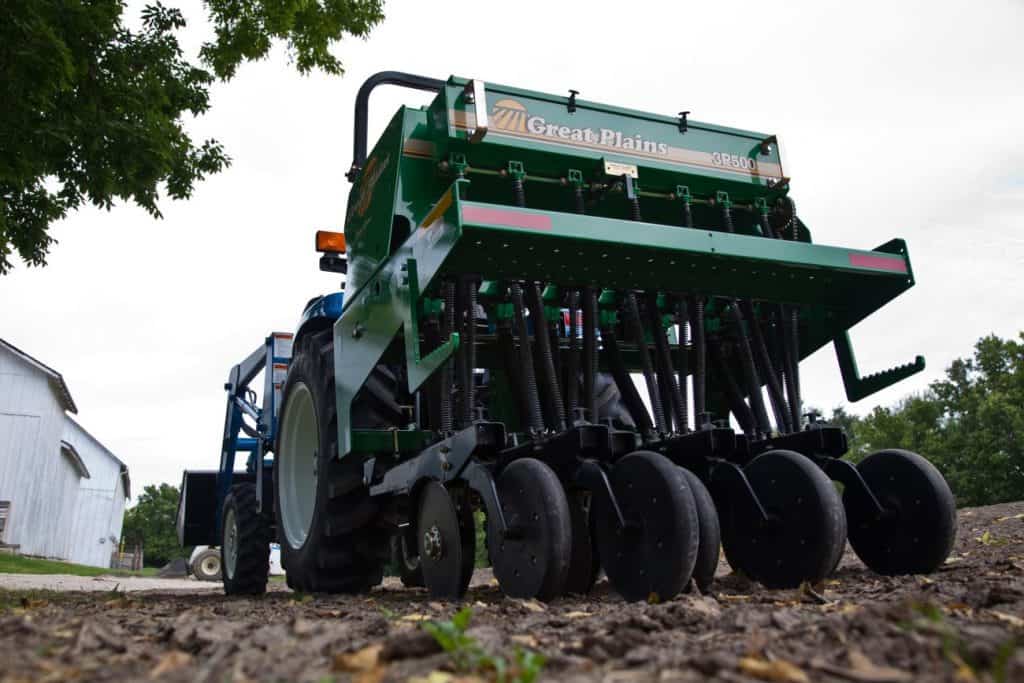

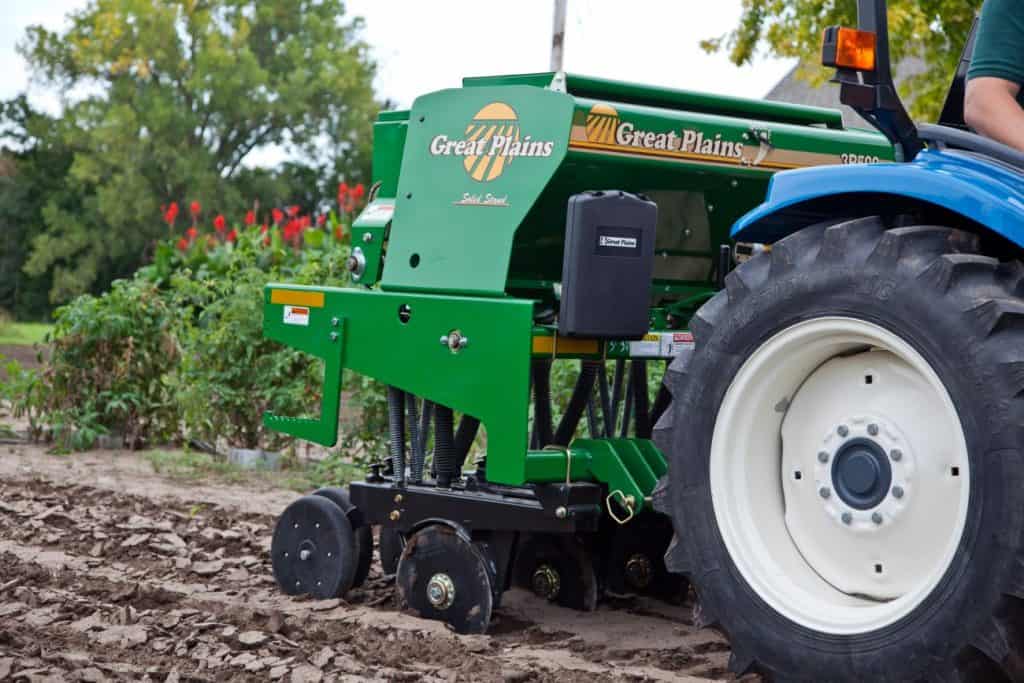

Model 3P500
Condition New
Type 3-Point Mounted Min-Till Drill
Row Spacing 6″ or 7.5″
Number of Openers 9 (at 6″) or 7 (at 7.5″)
Engine HP Requirement 35+
Working Width 52.5″
Weight (Approx.) 1,170-1,370 Lbs.
Main Seed Box Capacity 10 Bu.
3P600 | 6′ Mounted | 9-11 Openers

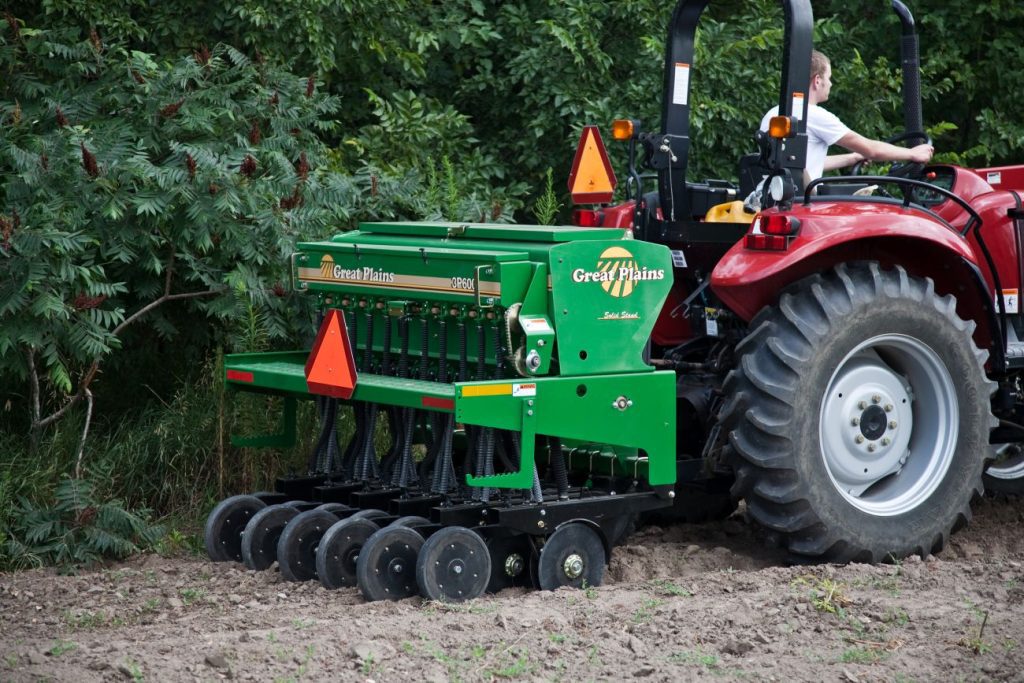

Model 3P600
Condition New
Type 3-Point Mounted Min-Till Drill
Row Spacing 6″ or 7.5″
Number of Openers 11 (at 6″) or 9 (at 7.5″)
Engine HP Requirement 40+
Working Width 67.5″
Weight (Approx.) 1,466-1,586 Lbs.
Main Seed Box Capacity 12 Bu.
Condition New

Features

Opener & Seed Placement

00 Series Opener
The 00 Series opener guides seed to the bottom of the trench with a full-length tube.

Heavy-Duty Coil Springs
Coil springs apply 90 to 180 pounds of consistent down pressure on openers.

Press Wheel Choices
Choose center rib or smooth press wheels to firm seed into the soil.

T-Handle Opener Depth Adjustment
A t-handle adjusts opener depth across 18 different positions.

Seeding Accuracy & Calibration

Fluted Seed Cups
Powdered metal fluted seed cups meter seed with outstanding accuracy.

4-Speed Gearbox
Sealed 4-speed gearboxes make changing seed rates quick and effortless.

Calibration Crank
A calibration crank helps you dial in the exact seeding rate you want.

GreatPlainsAg Mobile App
The GreatPlainsAg app walks you through calibration step by step from your phone.

Mounting & Versatility

Category I & II Hitch
A Category I and II hitch mounts easily to a wide range of tractors.

Center-Mounted Drive Wheel
Eight height settings let you reposition the ground-drive wheel as needed.

Optional Small Seeds Box
An optional small seeds box lets you plant two seed types at once.

Seed Level Indicator
A visible seed level indicator shows box contents at a glance.
